BIXOLON SRP-F310II
Brand | BIXOLON 2014 |
Model | SRP-F310IIC0SK/USA, Network LAN, Serial |
Released Year | 2014 |
Type | Printers |
Series | Srp |
Status | Active |
Quick view
Overview
The BIXOLON SRP-F310II is a high-performance thermal receipt printer designed for office and retail applications. It features a 203 dpi resolution for clear, high-quality print output. The model supports multiple interface options including Network LAN and Serial, enhancing connectivity and integration into various POS systems.
The printer operates at a print speed of up to 220 mm/sec, ensuring efficient transaction processing. It includes advanced compatibility with leading operating systems and POS software for seamless operation. The device's print mechanism supports 3-inch width receipt media, coupled with easy paper loading.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | NA |
MPN | SRP-F310IIC0SK/USA, Network LAN, Serial |
Supported Paper Size | Max Label Width: 3.13" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 180 x 180 DPI |
Model | SRP-F310II |
Connectivity | Network LAN, Serial |
Features | Networkable, Portable |
Black Print Speed | 13.7 ips |
Product Line | Bixolon SRP |
Printer Type | Thermal Printer |
Print Resolution | 203 dpi |
Print Speed | Up to 220 mm/sec |
Paper Width | 3 inch (80 mm) |
Interface | Ethernet, RS-232 Serial |
Supported Operating Systems | Windows, Linux, Mac OS |
Power Supply | AC 100-240 V, 50-60 Hz |
Dimensions (W x D x H) | 145 mm x 195 mm x 147 mm |
Weight | 1.26 kg |
Print Method | Direct Thermal |
Compatibility | ESC/POS Command Compatible |
Auto Cutter | Partial Cut |

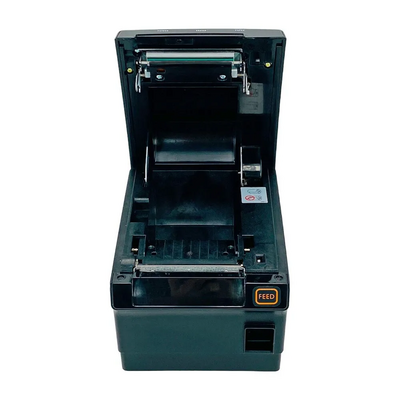

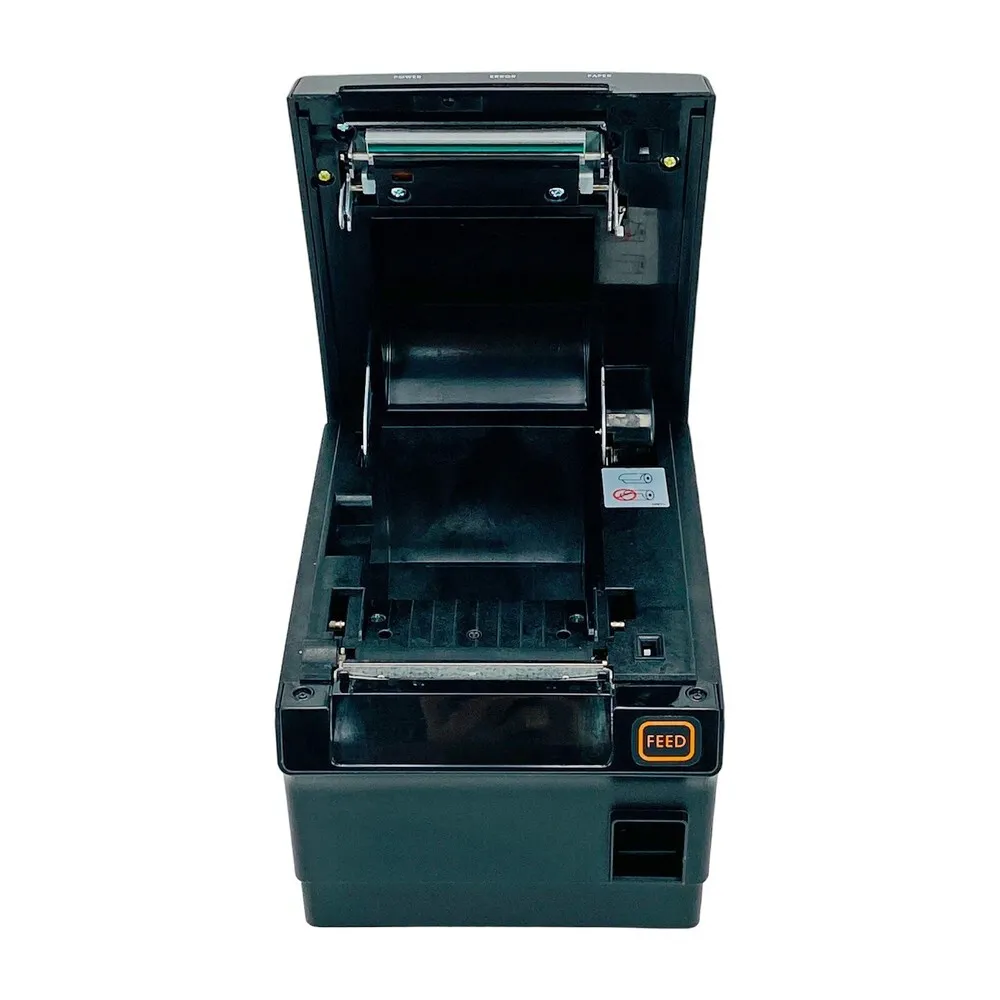

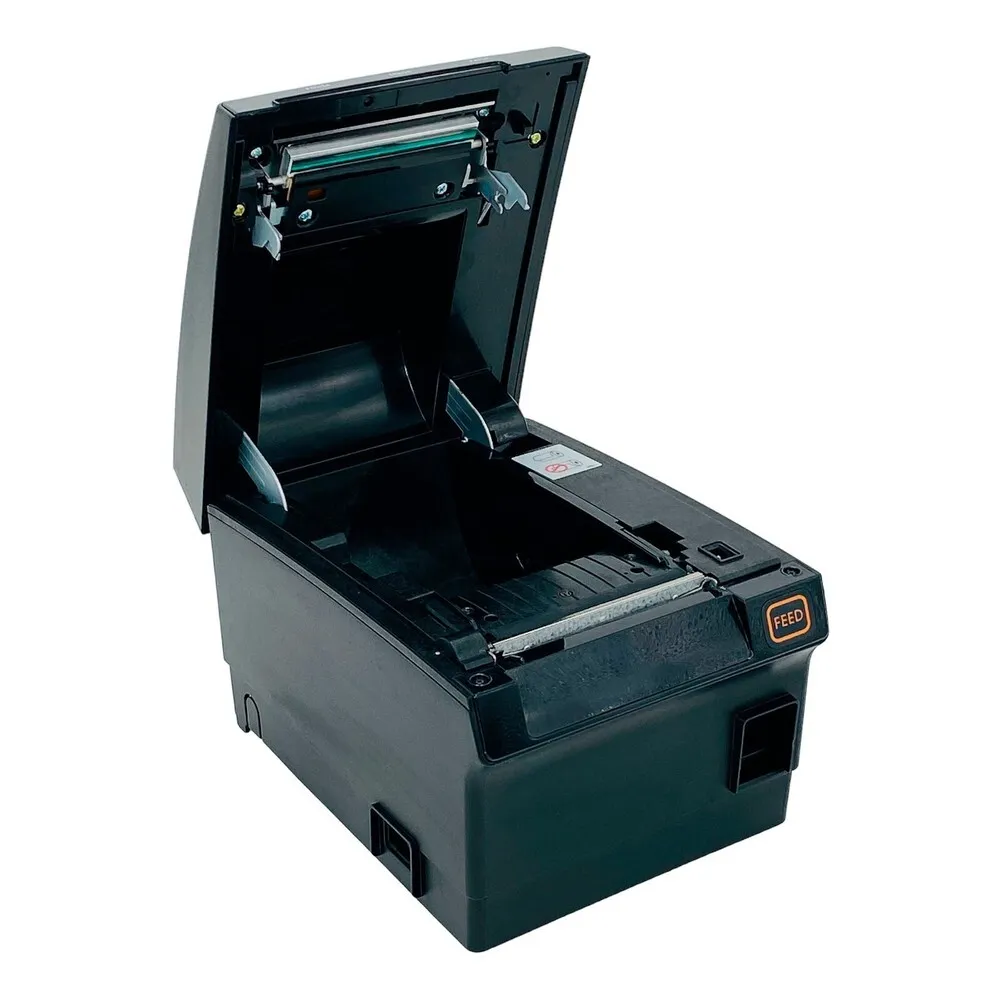

Paper Loading | Drop-in Easy |
MTBF | 360,000 hours |
Images
Key Advantages
The SRP-F310II offers exceptional print speed of 220 mm/sec, reducing wait times at checkout. Its multiple interface options including LAN and Serial connectivity provide flexibility for diverse installation environments. The thermal printing technology eliminates the need for ink or toner, reducing operating costs and maintenance.
Its high print resolution ensures sharp text and clear graphics output, suitable for detailed receipts. The printer's robust design supports continuous use in busy retail environments. Additionally, the easy drop-in paper loading and user-friendly interface save operational time.
Limitations
As a thermal printer, the SRP-F310II depends on heat-sensitive paper, which can fade over time and is susceptible to environmental conditions. It lacks support for color printing, limiting its use to monochrome receipts. The device may not support the latest wireless connectivity options such as Wi-Fi or Bluetooth natively.
Network setup might require technical expertise, especially in complex POS configurations. The maximum print width is limited to 3 inches, which may not suffice for certain specialized printing requirements. Firmware updates and driver support could be limited given the device's production period.
FAQ
What is the print speed of the BIXOLON SRP-F310II?
The printer has a maximum print speed of up to 220 mm per second.
Does the SRP-F310II support network connectivity?
Yes, it supports Network LAN connectivity along with Serial interface options.
What type of printing technology does the SRP-F310II use?
It employs thermal printing technology, which requires heat-sensitive paper.
Is the BIXOLON SRP-F310II compatible with modern POS systems?
The printer is compatible with most major POS systems and supports various operating systems, but integration may depend on specific software compatibility.
Can the printer print in color?
No, the SRP-F310II is designed for monochrome thermal printing.
What is the maximum paper width supported by this printer?
It supports a maximum receipt paper width of 3 inches (80 mm).
Is the BIXOLON SRP-F310II still in production?
No, the device is not discontinued and may still be available through select distributors.
