Panasonic LUMIX S5 (Body only)
Brand | Panasonic 2020 |
Model | DC-S5E-K |
Released Year | 2020 |
Type | Mirrorless Cameras |
Series | S5 |
Color | Black |
Compatible Mountings | Leica L |
Autofocus | Yes |
Photo Sensor Resolution | 24.2 MP |
Video Resolution | 4K UHD 2160p |
File Format | JPEG |
Status | Active |
Quick view
Overview

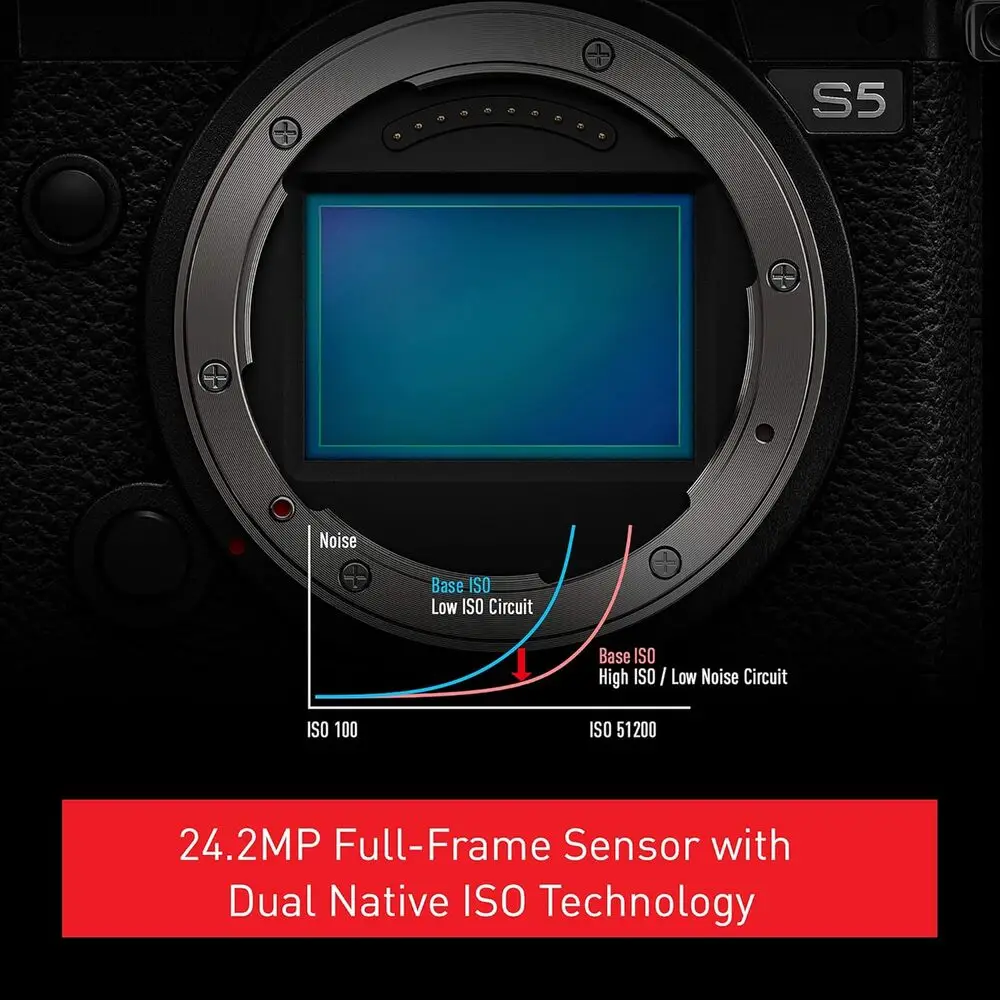

The Panasonic LUMIX S5 is a full-frame mirrorless camera designed for versatile imaging needs, offering a compact body with robust performance. It features a 24.2-megapixel CMOS sensor without a low-pass filter to maximize resolution and detail. The camera uses the Leica L-Mount system ensuring compatibility with a broad range of lenses. It supports Dual Native ISO technology for enhanced low-light performance and reduced noise at high sensitivity. The LUMIX S5 includes advanced video capabilities, capable of recording 4K 60p 10-bit 4:2:0 internally and 4K 30p 10-bit 4:2:2 via HDMI output. Its stabilization system combines in-body image stabilization (IBIS) with lens stabilization for up to 6.5 stops of shake correction. Connectivity options include Wi-Fi and Bluetooth for seamless transfer and remote control.
Specifications
Built-In Media | Camera Body & Lens |
Are Batteries Included | Yes |
Remote Included | No |
Item Type Name | Digital camera. |
Item Height | 9.7 centimeters |
Manufacturer | Panasonic |
Metering Methods | Multiple / Center Weighted / Spot / Highlight Weighted |
Exposure Control | Automatic, Manual |
White Balance Settings | Auto |
Self Timer | 10 Seconds |
Screen Size | 3 Inches |
Display Type | LCD |
Dots Per Screen | 1.000.000 punti |
Display Fixture Type | Tilting |
Touch Screen Type | Capacitive |
Display Resolution Maximum | 1040x760 |
Has Color Screen | Yes |
Flash Memory Type | SD Card/ SDXC / SDHC |
Memory Slots Available | 1 |
Memory Storage Capacity | 1 MB |
Recording Capacity | 1.5E+2 Minutes |
Write Speed | up to 300 MB/s |
Flash Memory Speed Class | U3 |
Flash Memory UHS Speed Class | 3 |
Flash Memory Video Speed Class | U3 |
Flash Memory Bus Interface Type | UHS-I or UHS-II |
Compatible Mountings | Leica L |
Sensor Type | CMOS |
Image stabilization | Dual, Sensor-shift |
Maximum Aperture | 5.6 Millimeters |
Expanded ISO Minimum | 50 |
Photo Sensor Resolution | 24.2 MP |
Photo Sensor Size | Full Frame (35mm) |
Maximum Shutter Speed | 60 Seconds |
Minimum Shutter Speed | 1/16,000 Seconds |
Form Factor | Mirrorless |
Special Feature | Video Recording |
Color | Black |
Item Weight | 0.63 Kilograms |
Video Resolution | 4K UHD 2160p |
Viewfinder | 0.74x 2.36M-dot OLED electronic viewfinder |
Flash Modes | Auto / Forced On/Red-eye Reduction / Slow Sync./ Forced Off |
Camera Flash | Built-In |
Skill Level | Professional |
Specific Uses For Product | Professional Photography, Videography, Vlogging, Travel |
Compatible Devices | L-Mount devices |
Continuous Shooting | 20 fps |
Aperture modes | F3.5–F5.6 |
Viewfinder Magnification | 0.74x |
Audio Input | Microphone |
Flash Sync Speed | 1/250 sec |
Video Capture Format | MP4, MOV, MPEG-4 |
Expanded ISO Maximum | 204800 |
Battery Weight | 11 Grams |
Delay between shots | 0.05 seconds |
Audio Output Type | Headphones, Speakers |
Aspect Ratio | 16:9 |
File Format | JPEG |
Effective Still Resolution | 24.2 MP |
JPEG Quality Level | Fine |
Supported Image Format | JPEG |
Maximum Image Size | 24.2 MP |
Total Still Resolution | 24.2 MP |
Maximum Focal Length | 60 Millimeters |
Lens Type | Zoom |
Zoom | Optical Zoom |
Camera Lens | L-Mount 20-60mm Standard Zoom Lens |
Minimum Focal Length | 20 Millimeters |
Real Angle Of View | 0.61 Radians |
Focal Length Description | 20.0-60.0 millimeters |
Lens Construction | [MO] |
Connectivity Technology | Bluetooth, Micro HDMI, USB, Wi-Fi |
Wireless Technology | Bluetooth, Wi-Fi |
Video Output | Micro HDMI Type D |
Total USB 2.0 Ports | 1 |
Total USB 3.0 Ports | 1 |
Total USB Ports | 1 |
Total Video Out Ports | 1 |
Shooting Modes | Automatic |
Digital-Still | Yes |
Movie Mode | Yes |
Image Capture Type | Stills & Video |
Night vision | No |
Auto Focus Technology | cmos |
Focus Features | Hybrid |
Autofocus Points | 18 |
Focus Type | Auto Focus, Manual Focus |
Focus Mode | Automatic AF (AF-A) |
Autofocus | Yes |
Camera Type | Mirrorless Full-frame |
Sensor | 24.2 MP CMOS, full-frame (35.6 x 23.8 mm) |
Image Processor | Venus Engine |
Lens Mount | Leica L-Mount |
ISO Sensitivity | 100-51200 (expandable to 50–204800) |
Autofocus System | Contrast-detection with DFD technology, 225 focus points |
Continuous Shooting Speed | Up to 7 fps (AFS), 5 fps (AFC) |
Video Recording | 4K UHD 3840x2160 up to 60p 10-bit 4:2:0 internally, 4K 30p 10-bit 4:2:2 via HDMI |
LCD Screen | 3.0-inch fully articulating touchscreen LCD, 1.84M dots |
Image Stabilization | 5-axis in-body image stabilization, combined with optical lens stabilization |
Storage Media | Dual SD card slots (Slot 1: UHS-II, Slot 2: UHS-I) |
Connectivity | Wi-Fi 5 (802.11ac), Bluetooth 4.2 |
Battery | Li-ion DMW-BLK22, approx. 440 shots per charge (CIPA) |
Body Material | Magnesium alloy, weather-sealed |
Weight | Approx. 714 g (including battery and memory card) |
Dimensions | 132.6 x 97.1 x 81.9 mm |
Images
Key Advantages
The LUMIX S5 offers a lightweight and compact full-frame design making it highly portable without sacrificing image quality. Its Dual Native ISO provides excellent performance in both bright and low-light environments, reducing noise effectively. The combination of 5-axis IBIS with optical image stabilization ensures sharp images and smooth video footage. Advanced video recording options with high bit-depth and slow-motion support appeal to professional videographers. The camera's robust weather-sealed magnesium alloy body ensures durability under various shooting conditions. Comprehensive connectivity with wireless remote control and direct FTP upload adds to workflow efficiency.
Limitations
Although compact, the LUMIX S5's battery life is moderate, requiring spares for extended shooting sessions. The autofocus system, while competent, sometimes lags behind top-tier competitors in speed and subject tracking. Compared to higher-end models, the viewfinder resolution is modest, which may affect manual focusing precision. The camera lacks an extensive in-camera lens correction for all third-party lenses. Internal 4K recording is limited to 10-bit 4:2:0 60p, with higher chroma subsampling available only externally. The dual card slots are not both UHS-II capable, limiting write speed flexibility.
FAQ
Does the Panasonic LUMIX S5 have in-body image stabilization?
Yes, the LUMIX S5 features a 5-axis in-body image stabilization system that works in combination with optical stabilization in compatible lenses.
What is the sensor resolution of the LUMIX S5?
The camera uses a 24.2-megapixel full-frame CMOS sensor that delivers high-resolution images.
Can the LUMIX S5 record 4K video internally?
Yes, it can record 4K video internally at up to 60p with 10-bit 4:2:0 color sampling.
What type of lens mount does the LUMIX S5 use?
It uses the Leica L-Mount, which supports lenses from Panasonic, Leica, and Sigma.
Is the LUMIX S5 weather-sealed?
Yes, the camera has a weather-sealed magnesium alloy body designed to resist dust and moisture.
Does the camera support wireless connectivity?
Yes, it supports Wi-Fi and Bluetooth for wireless image transfer and remote control.
What kind of memory cards does the Panasonic LUMIX S5 support?
It supports dual SD memory card slots with one slot compliant with UHS-II standards.
