Olympus E-pl5 14 42
| Brand | Olympus 2012 |
| Model | V205040BU000 |
| Released Year | 2012 |
| Type | Mirrorless Cameras |
| Series | Pen |
| Color | Black |
| Compatible Mountings | Micro Four Thirds |
| Autofocus | Yes |
| Photo Sensor Resolution | 16 MP |
| Video Resolution | FHD 1080i |
| Optical Zoom | 1 x |
| File Format | RAW, JPEG, RAW+JPEG, MPO(3D still) |
| Status | Discontinued |
Quick view
Overview
The Olympus PEN E-PL5 is a compact mirrorless digital camera featuring a Micro Four Thirds sensor with a resolution of 16 megapixels, delivering high-quality images with excellent color reproduction. It is equipped with a TruePic VI image processor that enhances speed and image quality while reducing noise at high ISO levels up to 25600. The camera supports interchangeable lenses, with the 14-42mm kit lens providing versatility for everyday photography from wide-angle to short telephoto. Incorporating a 3-inch tiltable touchscreen OLED monitor, the E-PL5 allows for intuitive control and creative composition from various angles. It includes built-in Wi-Fi connectivity for easy sharing and remote control functionality using compatible devices. Video recording capabilities extend to full HD 1080p at 30 fps, enabling users to capture smooth, detailed videos alongside still photography.
Specifications
| Maximum Aperture | f/3.5 |
| Screen Size | 3 Inches |
| Color | Black |
| MPN | V205040BU000 |
| Battery Type | Lithium-Ion BLS-5 rechargeable battery & charger |
| Series | Olympus PEN |
| Type | Digital SLR |
| Maximum Resolution | 16.1 MP |
| Model | OLYMPUS E-PL5 14 42 |
| Connectivity | Built-in Wi-Fi |
| Features | DPOF Support, Auto Focus |
| Charger Included | Yes |
| Country/Region of Manufacture | Japan |
| Item Weight | 0.72 Pounds |
| UPC | 050332184176 |
| Camera Type | Mirrorless Interchangeable Lens Camera |
| Sensor | 16MP Live MOS Micro Four Thirds |
| Image Processor | TruePic VI |
| Lens Mount | Micro Four Thirds |
| Kit Lens | 14-42mm f/3.5-5.6 EZ |
| ISO Sensitivity | Auto, 200-25600 |
| Autofocus System | Contrast-detect AF with Face Detection and Tracking |
| Shutter Speed | 1/4000 to 60 seconds |
| Continuous Shooting | 8 |
| Viewfinder | Electronic |
| LCD Screen | 3-inch tilting OLED touchscreen, 610k dots |
| Video Recording | Full HD 1080p30 |
| Image Stabilization | Lens-based Dual IS |
| Battery | Rechargeable Li-ion battery (approx. 320 shots per charge) |
| Dimensions | 112 mm x 64.6 mm x 38.4 mm |
| Weight | Approximately 335 grams (with battery and memory card) |
| Built-In Media | [INCOMPLETE: BLS-5 rechargeable battery, battery charger, electronic viewfinder] |
| Are Batteries Included | Yes |
| Remote Included | No |
| Series Number | 5 |
| Item Height | 2.52 inches |
| Manufacturer | Olympus |
| Connectivity Technology | HDMI, USB |
| Wireless Technology | EyeFi |
| Video Output | HDMI |
| Total USB 2.0 Ports | 1 |
| Total USB Ports | 1 |
| Total Video Out Ports | 1 |
| Shooting Modes | Aperture Priority, Automatic, Program, Shutter Priority |
| Digital-Still | Yes |
| Movie Mode | Yes |
| Image Capture Type | Stills & Video |
| Night vision | No |
| Auto Focus Technology | Continuous, Contrast Detection, Face Detection, Live View, Multi-area, Selective single-point, Single, Touch, Tracking |
| Focus Features | Contrast Detection |
| Autofocus Points | 35 |
| Focus Type | Manual Focus |
| Focus Mode | Continuous-Servo AF (AF-C) |
| Autofocus | Yes |
| Aspect Ratio | 16:9 |
| File Format | RAW, JPEG, RAW+JPEG, MPO(3D still) |
| Effective Still Resolution | 16 |
| JPEG Quality Level | Normal |
| Supported Image Format | JPEG, RAW, MPO(3D still) |
| Bit Depth | 8 Bit |
| Total Still Resolution | 16 MP |
| Optical Zoom | 1 x |
| Lens Type | Interchangeable |
| Zoom | optical |
| Real Angle Of View | 44.55 Degrees |
| Lens Construction | Interchangeable |
| Metering Methods | Multi, Center-weighted, Spot |
| Exposure Control | Aperture priority, Automatic, Program AE, Shutter priority |
| White Balance Settings | Flash torch |
| Crop Mode | 16:9 or 4:3 |
| Display Type | LCD |
| Dots Per Screen | 460000 |
| Display Fixture Type | Tilting |
| Touch Screen Type | Yes |
| Display Resolution Maximum | 460000 |
| Has Color Screen | Yes |
| Flash Memory Type | SD/SDHC/SDXC |
| Flash Memory Video Speed Class | 6 |
| Flash Memory Bus Interface Type | SD |
| Compatible Mountings | Micro Four Thirds |
| Sensor Type | CMOS |
| Image stabilization | Sensor-shift |
| Expanded ISO Minimum | 100 |
| Photo Sensor Resolution | 16 MP |
| Photo Sensor Size | Four Thirds |
| Maximum Shutter Speed | 1/4000 Seconds |
| Minimum Shutter Speed | 60 seconds |
| Form Factor | Mirrorless |
| Special Feature | Travel |
| Video Resolution | FHD 1080i |
| Flash Modes | Auto, On, Off, Slow Synch, Red-Eye Reduction/Smart Flash |
| Camera Flash | Built-In |
| Skill Level | Professional |
| Compatible Devices | Micro Four Thirds |
| Aperture modes | Aperture Priority |
| Audio Input | Built-in microphone (stereo) |
| Flash Sync Speed | 1/250 sec |
| Video Capture Format | AVC, MJPEG, MPEG-4 |
| Expanded ISO Maximum | 25600 |
| Battery Weight | 50 Grams |
| Delay between shots | 0.13 seconds |
| Battery Cell Type | Lithium Ion |
| Battery Average Life | 360 Photos |
| Processor Description | truepic 6 |

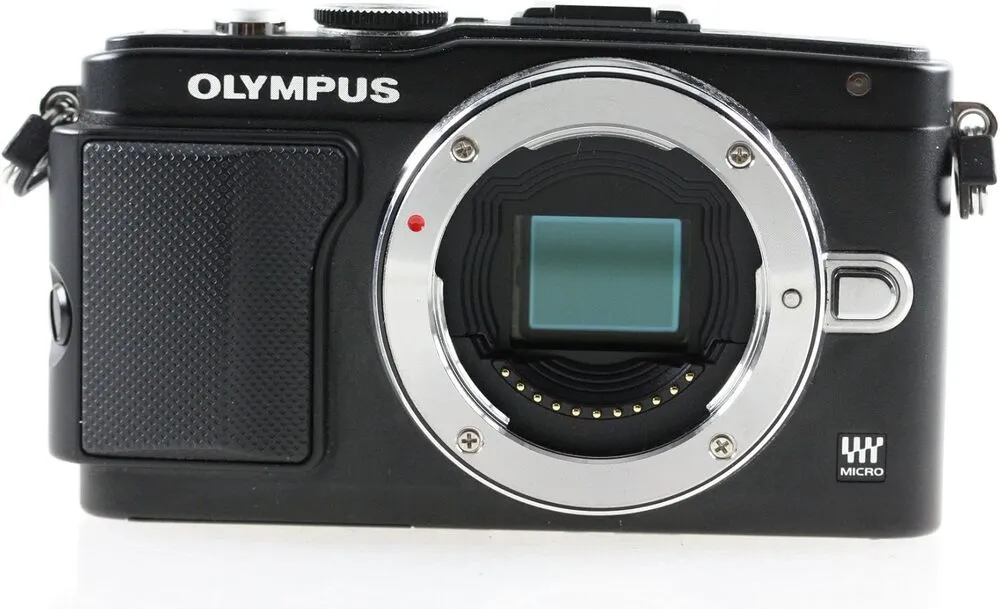

Images
Key Advantages
Compact and Lightweight Design: The PEN E-PL5 offers portability without sacrificing performance, ideal for travel and street photography.
High-Resolution Sensor: The 16MP CMOS Micro Four Thirds sensor delivers sharp and rich images suitable for large prints and cropping.
Advanced Image Processor: TruePic VI processor enables fast startup, quick autofocus, and enhanced noise reduction for excellent image clarity.

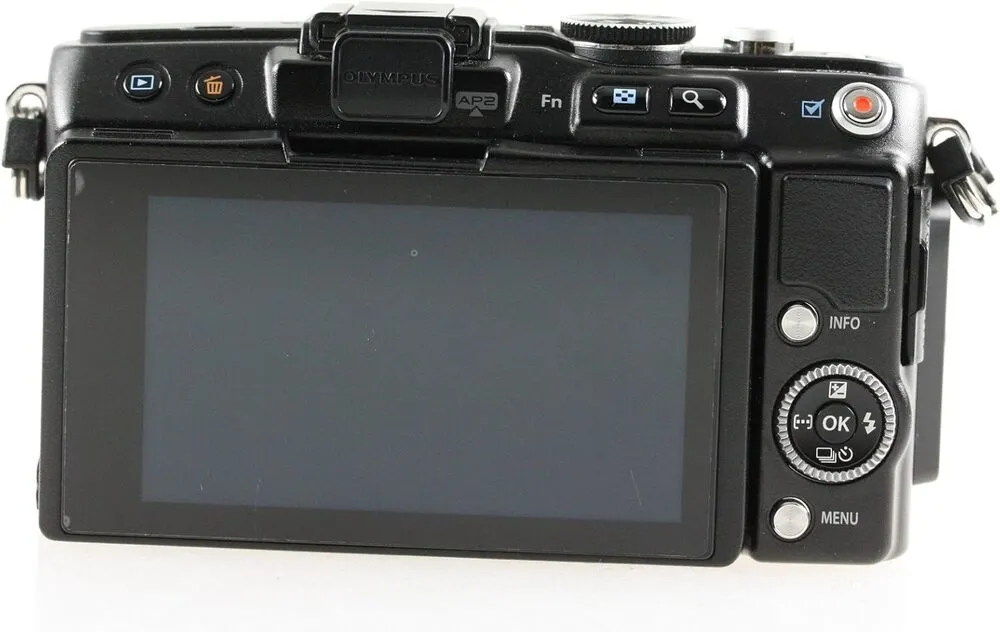

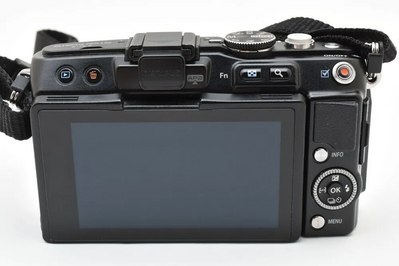

Touchscreen LCD: The 3-inch OLED tilting touchscreen provides easy focus selection, menu navigation, and creative shooting angles.
Interchangeable Lens System: Supports a wide range of Micro Four Thirds lenses, expanding creative possibilities.
Built-in Wi-Fi: Allows seamless photo sharing and remote camera control via smartphone or tablet.
Limitations
No Built-in Viewfinder: Requires an optional external electronic viewfinder for more precise framing in bright conditions.
Limited Battery Life: Moderate battery endurance, especially when using LCD touchscreen or Wi-Fi functionalities extensively.
Modest Autofocus in Low Light: AF speed and accuracy can be reduced in dim environments compared to more modern systems.
Video Limitations: Only 1080p video at 30 fps without advanced video features like high frame rates or 4K recording.
No Weather Sealing: The camera body is not fully sealed against dust or moisture, limiting rugged outdoor use.
Relatively Small Sensor Size: While Micro Four Thirds sensor offers good quality, it has less low-light performance and depth of field control than APS-C or full-frame sensors.
FAQ
What type of sensor does the Olympus PEN E-PL5 use?
The E-PL5 uses a 16-megapixel CMOS Micro Four Thirds sensor that balances image quality and compactness.
Does the Olympus PEN E-PL5 have built-in Wi-Fi?
Yes, it features built-in Wi-Fi for easy sharing and remote control using compatible mobile devices.
Can I record video with the Olympus PEN E-PL5?
Yes, it supports Full HD 1080p video recording at 30 frames per second.
Is the Olympus PEN E-PL5 suitable for beginner photographers?
Yes, its intuitive touchscreen interface and automatic modes make it suitable for beginners seeking creative control.
What lenses are compatible with the Olympus PEN E-PL5?

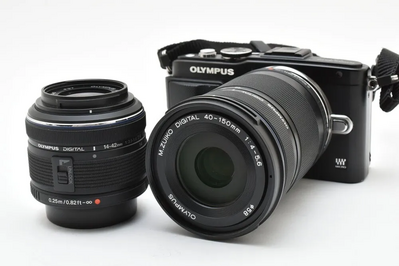

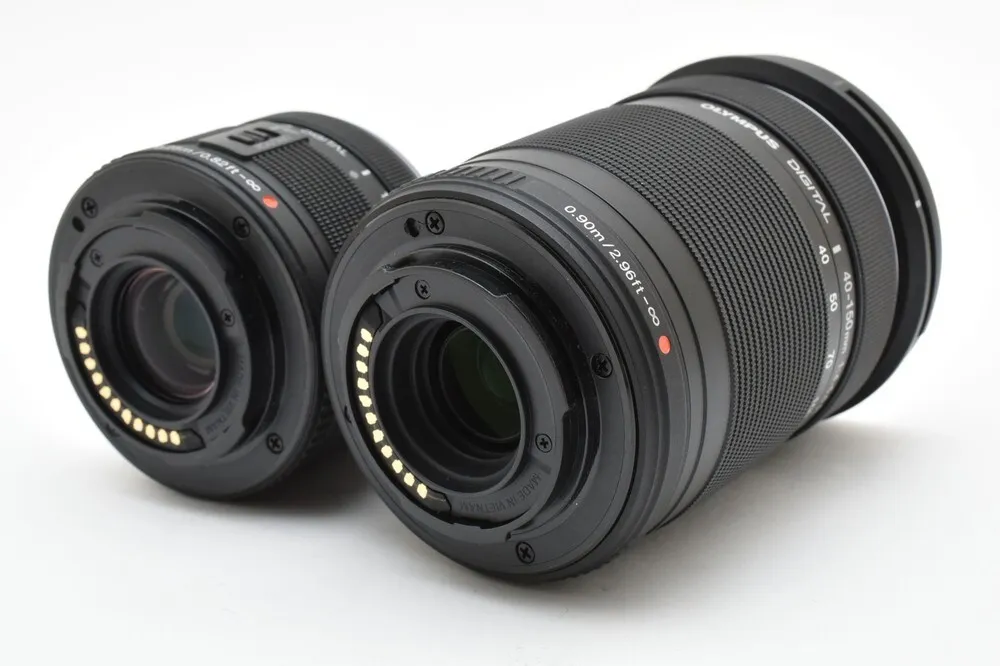

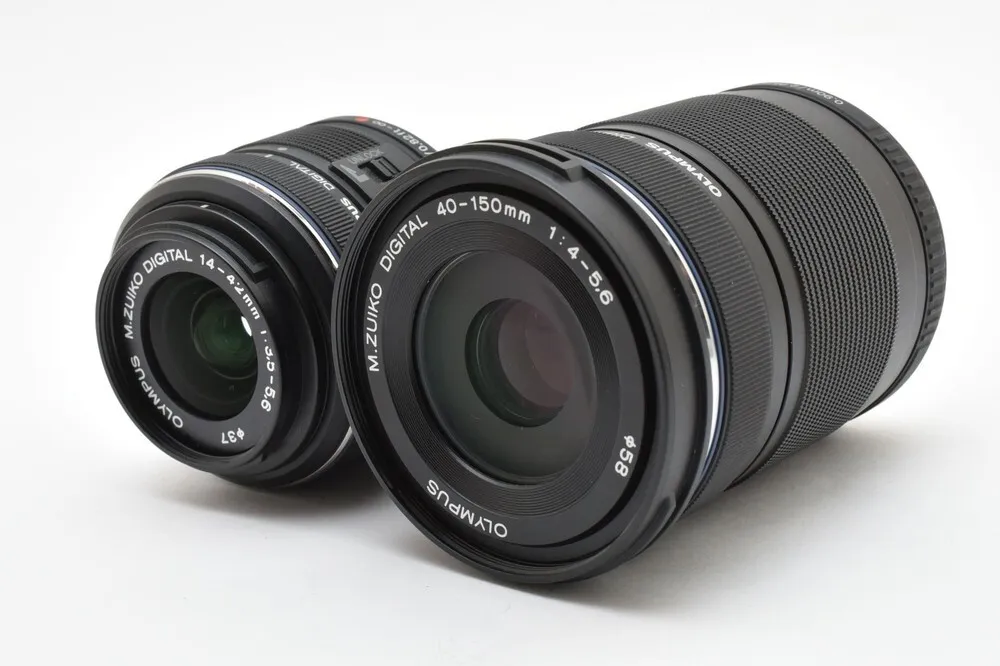

It supports Micro Four Thirds lenses, including the standard 14-42mm kit lens and a wide range of interchangeable lenses.
Does the Olympus PEN E-PL5 include an electronic viewfinder?
No, it does not have a built-in EVF but supports optional external electronic viewfinders.
Is the Olympus PEN E-PL5 still in production?
No, the Olympus PEN E-PL5 has been discontinued.
