Olympus E-P5
| Brand | Olympus 2013 |
| Model | V204053BU000 |
| Released Year | 2013 |
| Type | Mirrorless Cameras |
| Series | PEN |
| Color | Black |
| Compatible Mountings | Micro Four Thirds |
| Autofocus | Yes |
| Photo Sensor Resolution | 16.1 MP |
| Video Resolution | 1920 x 1080 (30p), 1280 x 720 (30p) |
| Optical Zoom | 1 x |
| File Format | RAW, JPEG, RAW+JPEG, MPO(3D still) |
| Status | Discontinued |
Quick view
Overview

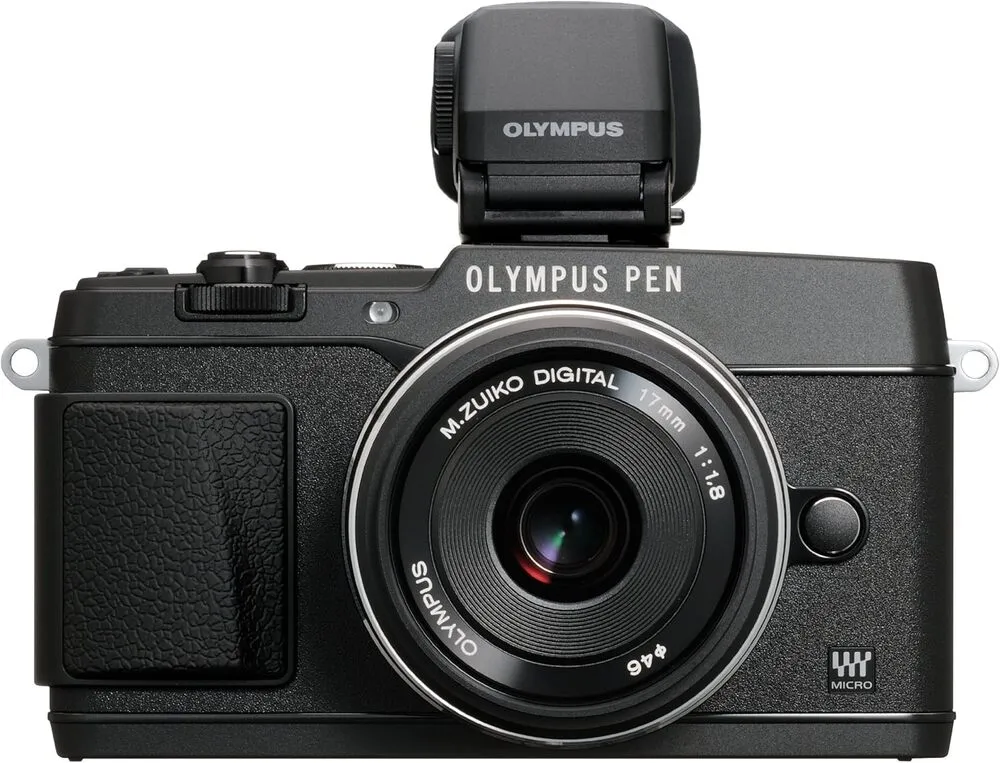

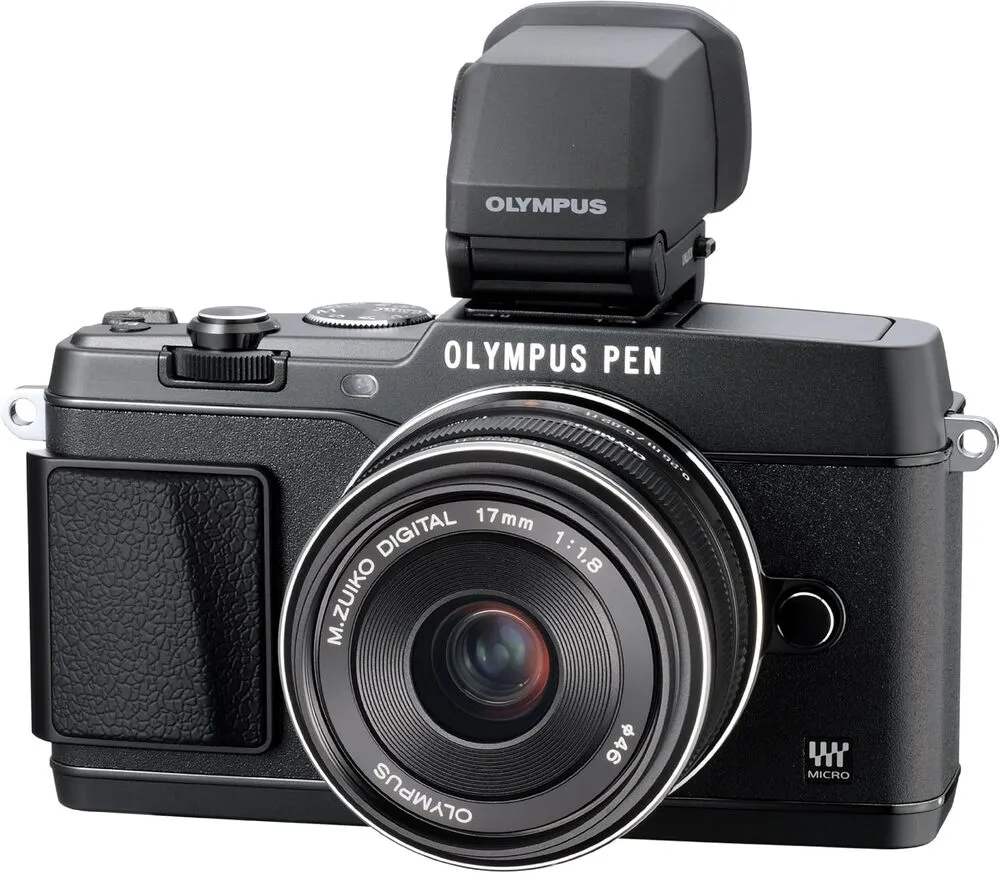

The Olympus PEN E-P5 is a flagship model in the PEN series introduced in 2013, combining advanced mirrorless camera technology with a compact design. It features a 16-megapixel Live MOS Four Thirds sensor that delivers high-resolution images with accurate color reproduction. The camera is powered by the TruePic VI image processor, enabling fast performance and low noise at high ISO levels. It includes a 5-axis in-body image stabilization system enhancing sharpness during handheld shooting. The E-P5 supports continuous shooting at up to 9 frames per second, making it suitable for fast action photography. Additionally, it offers built-in Wi-Fi for easy sharing and remote control, a high-resolution OLED electronic viewfinder, and a tilting 3-inch LCD touchscreen for flexible shooting angles.
Specifications
| Built-In Media | Remote |
| Are Batteries Included | Yes |
| Remote Included | No |
| Series Number | 5 |
| Global Trade Identification Number | 00050332185982 |
| UPC | 050332185982 |
| Item Height | 2.72 inches |
| Manufacturer | OM System |
| Metering Methods | Multi, Center-weighted, Spot |
| Exposure Control | Aperture priority, Automatic, Program AE, Shutter priority |
| White Balance Settings | Auto |
| Self Timer | 10 Seconds |
| Crop Mode | 16:9 |
| Screen Size | 3 Inches |
| Display Type | LCD |
| Dots Per Screen | 120 |

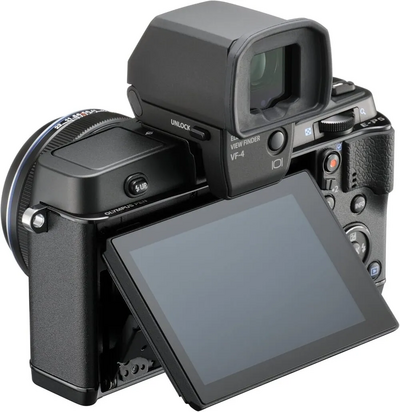

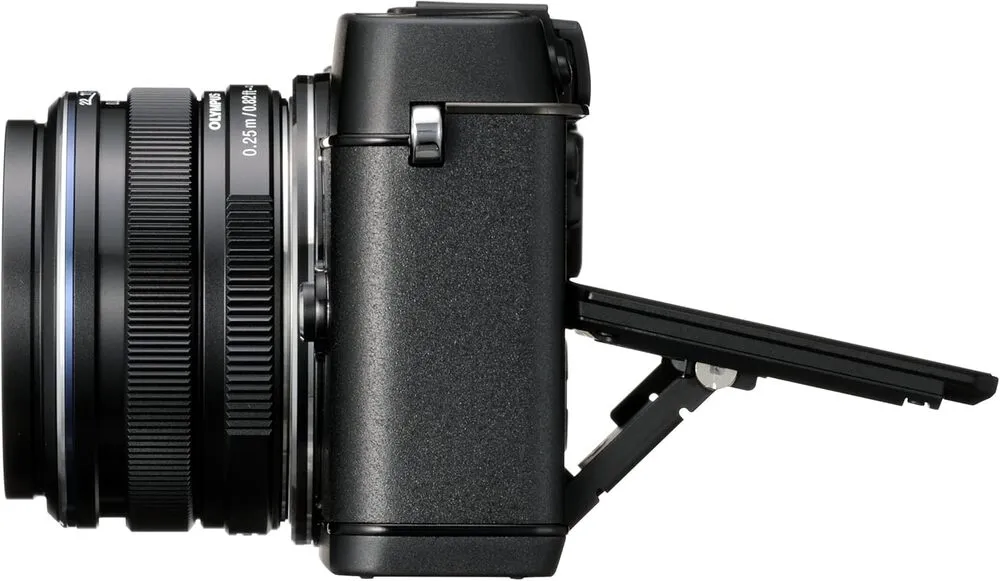

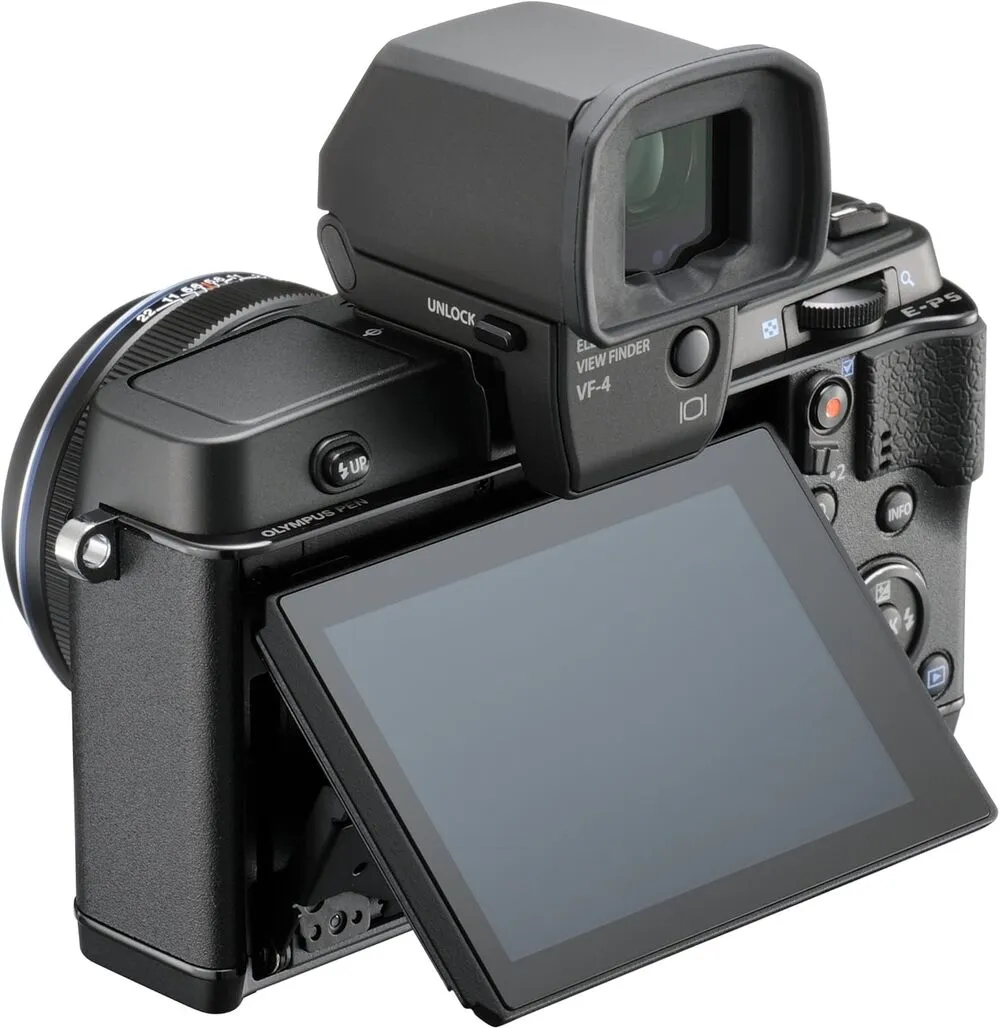

| Display Fixture Type | Tilting |
| Touch Screen Type | Yes |
| Display Resolution Maximum | 1036800 |
| Has Color Screen | Yes |
| Flash Memory Type | SD/SDHC/SDXC |
| Write Speed | 9 fps |
| Flash Memory Speed Class | C1 |
| Flash Memory Video Speed Class | U3 |
| Flash Memory Bus Interface Type | UHS-I |
| Flash Memory Supported Size Maximum | 64 GB |
| Compatible Mountings | Micro Four Thirds |
| Sensor Type | CMOS |
| Image stabilization | Sensor-shift |
| Maximum Aperture | 1.8 f |
| Expanded ISO Minimum | 100 |
| Photo Sensor Resolution | 16.1 MP |
| Photo Sensor Size | Four Thirds (17.3 x 13 mm) |
| Maximum Shutter Speed | 1/8000 Seconds |
| Minimum Shutter Speed | 0.000125 seconds |
| Form Factor | Mirrorless |
| Special Feature | Image Stabilization |
| Color | Black |
| Item Weight | 0.93 Pounds |
| Video Resolution | 1920 x 1080 (30p), 1280 x 720 (30p) |

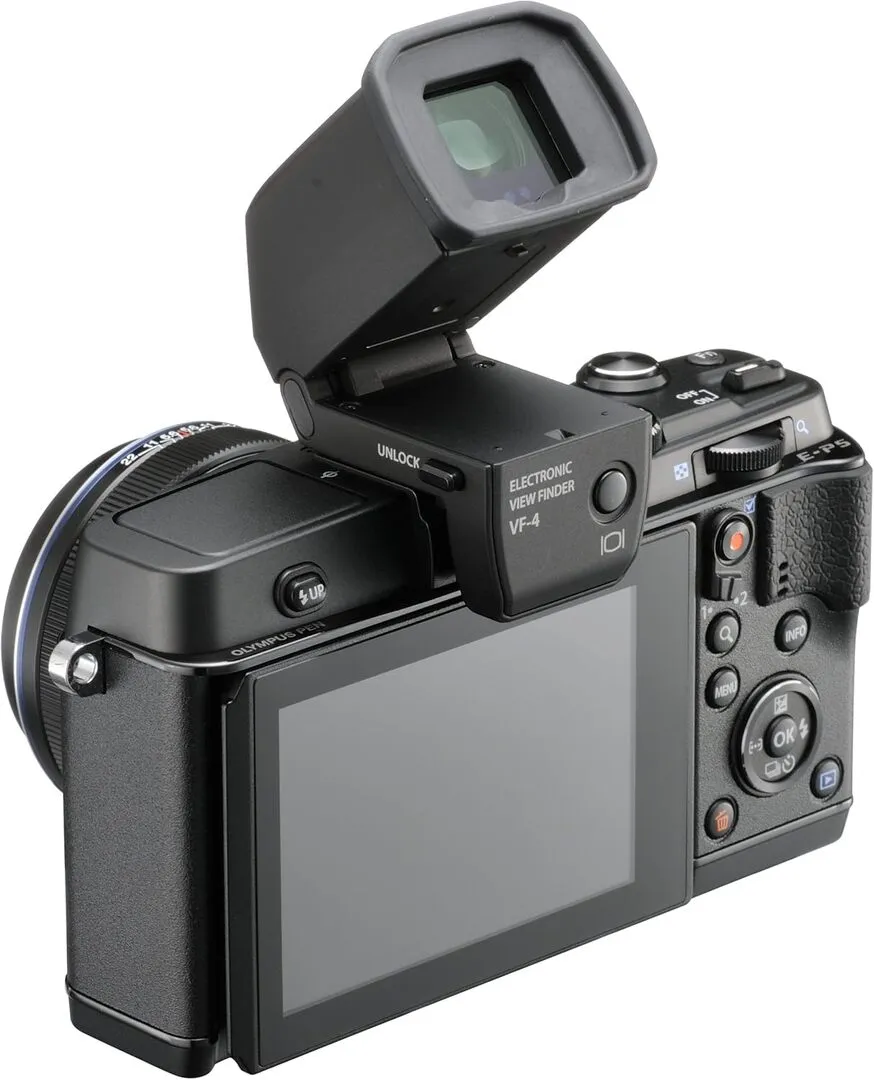

| Viewfinder | OLED Electronic Viewfinder (2.36M dots) |
| Flash Modes | Auto, On, Off, Slow Synch, Rear Curtain Synch |
| Camera Flash | Built-In |
| Compatible Devices | Smartphones |
| Continuous Shooting | 9 |
| Aperture modes | 1.8 |
| Flash Sync Speed | 1/320 sec |
| Video Capture Format | AVC |
| Expanded ISO Maximum | 25600 |
| Battery Cell Type | Lithium Ion |
| Battery Average Life | 330 Photos |
| Guide Number | 7 |
| Battery Type | Lithium Ion |
| Water Resistance Level | Not Water Resistant |
| Supported Audio Format | Linear PCM |
| Frame Rate | 30 fps |
| Aspect Ratio | 16:9 |
| File Format | RAW, JPEG, RAW+JPEG, MPO(3D still) |
| Effective Still Resolution | 16.1 MP |
| JPEG Quality Level | Fine |
| Supported Image Format | JPEG, RAW |
| Bit Depth | 12 Bit |
| Total Still Resolution | 16.1 MP |
| Maximum Focal Length | 17 Millimeters |
| Optical Zoom | 1 x |
| Lens Type | Interchangeable |
| Zoom | Optical Zoom |
| Camera Lens | 17mm focal length, f/1.8 maximum aperture, low light performance, image stabilization |
| Minimum Focal Length | 17 Millimeters |
| Real Angle Of View | 65.56 Degrees |
| Digital Zoom | 2 |
| Number of Diaphragm Blades | 7 |
| Lens Construction | 7 elements in 5 groups |
| Connectivity Technology | HDMI, USB |
| Wireless Technology | Wi-Fi |
| Video Output | HDMI |
| Total USB 2.0 Ports | 1 |
| Total USB Ports | 1 |
| Total Video Out Ports | 1 |
| Shooting Modes | Program AE, Shutter priority, Aperture priority, Automatic |
| Digital-Still | Yes |
| Movie Mode | Yes |
| Image Capture Type | Stills & Video |
| Night vision | No |
| Auto Focus Technology | Continuous, Contrast Detection, Face Detection, Live View, Multi-area, Selective single-point, Single, Touch, Tracking |
| Focus Features | Contrast Dectection |
| Autofocus Points | 35 |
| Focus Type | Manual Focus |
| Focus Mode | Single-Servo AF (AF-S) |
| Autofocus | Yes |
| Type | Mirrorless Camera |

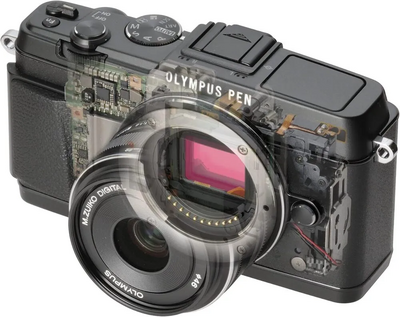

| Image Sensor | 16MP Live MOS Four Thirds Sensor |
| Image Processor | TruePic VI |
| Lens Mount | Micro Four Thirds |
| ISO Sensitivity | 200 - 25600 |
| Image Stabilization | 5-Axis In-Body Image Stabilization |
| Continuous Shooting Speed | Up to 9 fps |
| Autofocus System | Contrast Detect AF with Face Detection |

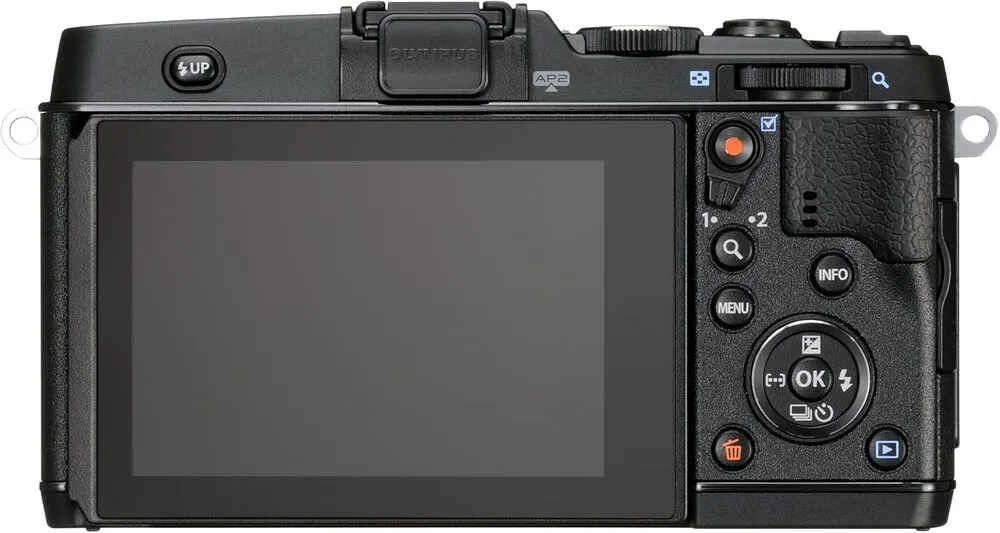

| LCD Screen | 3-inch Tilting Touchscreen LCD (1,037,000 dots) |
| Video Recording | Full HD 1080p at 30fps |
| Connectivity | Built-in Wi-Fi (IEEE 802.11b/g/n) |
| Storage Media | SD/SDHC/SDXC cards |
| Battery | BLN-1 Lithium-ion Battery |
| Dimensions | 124.8 x 72.1 x 37.3 mm |
| Weight | 427 grams (including battery and card) |
| Flash | External flash support (no built-in flash) |
| Build Material | Metal body with retro design |

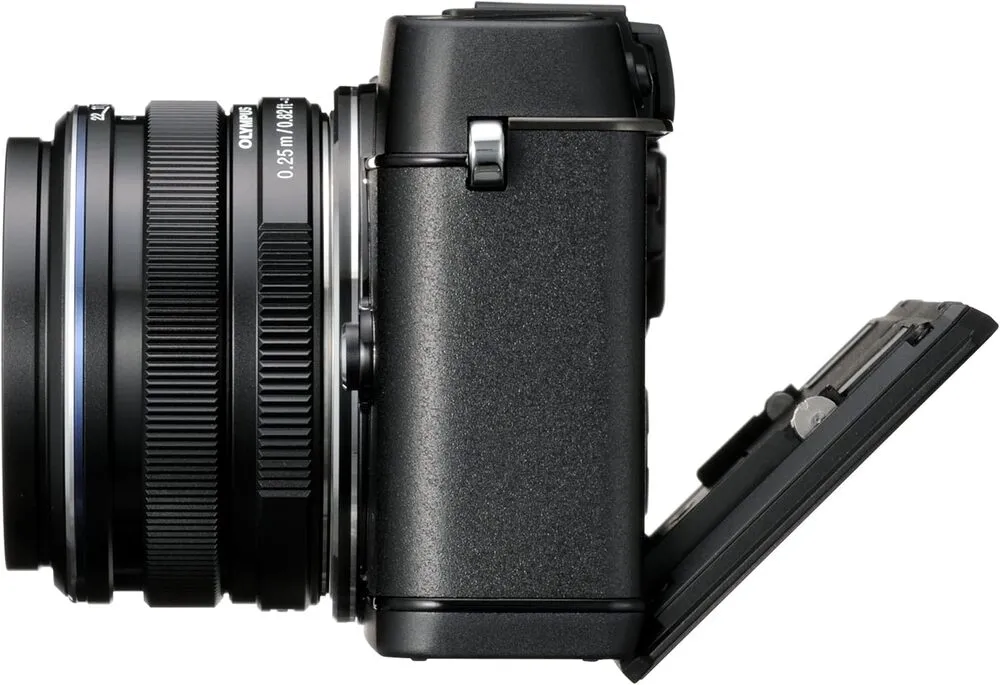

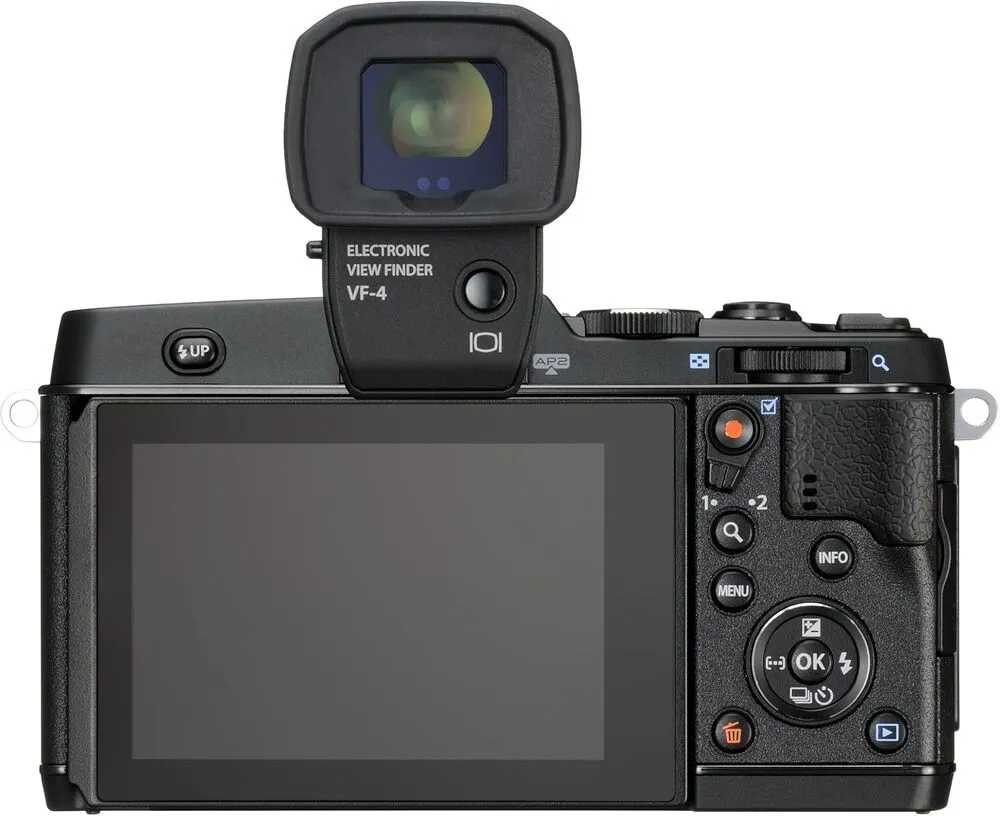

Images
Key Advantages
The E-P5 boasts a robust 5-axis image stabilizer that compensates for various types of camera shake for sharper images. Its compact and stylish metal body offers excellent build quality while retaining portability. The camera provides professional-grade 9 fps continuous shooting capability suited for dynamic scenes. The OLED electronic viewfinder displays a clear and detailed preview frame with color accuracy. Integrated Wi-Fi connectivity facilitates remote shutter control and direct image transfer to smart devices. The tilting touchscreen LCD enhances usability in varied shooting positions and angles.
Limitations
Despite its strengths, the E-P5's Four Thirds sensor is smaller than APS-C or full-frame sensors, affecting low-light performance and dynamic range compared to larger sensors. Its autofocus system, while improved, can lag behind more modern hybrid AF systems in speed and tracking accuracy. Battery life is moderate, often requiring spare batteries for extended shoots. The maximum continuous shooting buffer is limited, reducing burst shooting duration. Its video recording capabilities are restricted to Full HD 1080p without advanced video features like 4K. The camera lacks in-body flash, relying on external flash units for additional lighting.
FAQ
What sensor does the Olympus PEN E-P5 use?
The E-P5 uses a 16-megapixel Live MOS Four Thirds sensor.
Does the Olympus PEN E-P5 have image stabilization?
Yes, it features a 5-axis in-body image stabilization system.
Can the E-P5 shoot continuously at high speed?
Yes, it can shoot up to 9 frames per second in continuous burst mode.
Is Wi-Fi connectivity available on the PEN E-P5?
Yes, the E-P5 includes built-in Wi-Fi for remote control and image sharing.
What type of viewfinder does the E-P5 have?
It has a high-resolution OLED electronic viewfinder.
Does the camera support 4K video recording?
No, the E-P5 supports Full HD 1080p video recording but not 4K.
Is the Olympus PEN E-P5 still in production?
No, the Olympus PEN E-P5 has been discontinued.
