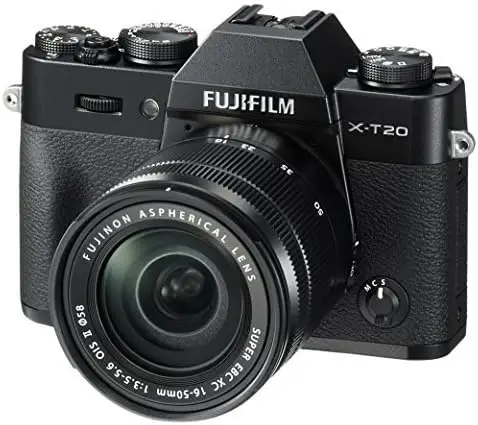

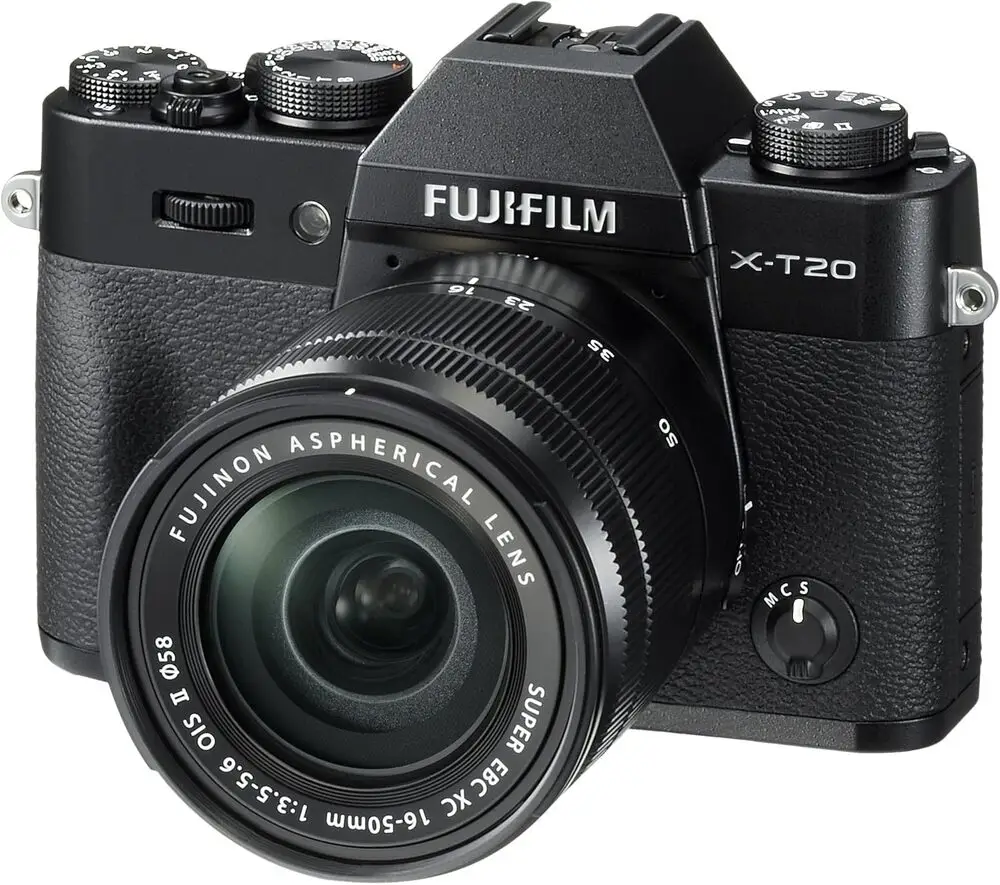

Fujifilm X-T20 image

Fujifilm X-T20

Quick information
Brand Fujifilm 2017
Model X-T20 XC16-50mmF3.5-5.6 OISII Kit Black
Released Year 2017
Type Mirrorless Cameras
Series X-T
Color Black
Compatible Mountings Fujifilm X
Autofocus Hybrid AF with 325 points (phase and contrast detection)
Photo Sensor Resolution 24.3 MP
Video Resolution 4K UHD 2160p
Optical Zoom 3 x
File Format JPEG, RAW
Status Active

Overview

The Fujifilm X-T20 is a compact and lightweight mirrorless camera featuring a 24.3MP APS-C X-Trans CMOS III sensor combined with the X-Processor Pro engine, delivering high-resolution image quality with excellent color reproduction. It supports 4K UHD video recording at 30fps and Full HD at up to 60fps, offering advanced videography options. The camera utilizes a hybrid autofocus system that combines phase detection and contrast detection with 325 selectable AF points for fast and accurate focusing. It features a 3-inch tilting LCD touchscreen with 1.04 million dots for flexible shooting and menu navigation. Connectivity options include built-in Wi-Fi for easy image sharing and remote control via smartphone apps. The camera body is constructed from magnesium alloy with weather-sealing on select parts for improved durability.

The included XC16-50mmF3.5-5.6 OIS II Kit lens offers optical image stabilization to reduce camera shake, making it suitable for handheld shooting in various lighting conditions.

Specifications

Built-In Media Battery Charger, Camera w/XC16-50mm Lens, Manual, Strap, U.S.A. Warranty, battery
Are Batteries Included Yes
Remote Included No
UPC 074101032239
Item Height 5.6 inches
Manufacturer Fujifilm
Warranty Description 1
Exposure Control Manual, aperture-priority, shutter-speed-priority
White Balance Settings Auto
Self Timer 1E+1, 2, 3
Crop Mode [POSSIBLE] 16:9
Screen Size 3 Inches
Display Type LCD
Display Fixture Type Tilting
Touch Screen Type Capacitive
Display Resolution Maximum 920,000
Has Color Screen Yes
Flash Memory Type SDXC
Recording Capacity 6E+1 Minutes
Write Speed 14 fps
Flash Memory Bus Interface Type UHS-I
Compatible Mountings Fujifilm X
Sensor Type CMOS
Image stabilization Digital
Photo Sensor Resolution 24.3 MP
Photo Sensor Size APS-C
Maximum Shutter Speed 30 seconds
Minimum Shutter Speed 1/4000 Seconds
Form Factor Compact, Mirrorless
Special Feature Lightweight
Color Black
Item Weight 3.3 Pounds
Video Resolution 4K UHD 2160p
Viewfinder 2.36 million-dot OLED electronic viewfinder
Flash Modes Automatic, Slow Shutter
Camera Flash F3.5–F5.6
Specific Uses For Product Videography, Photography
Compatible Devices Fujifilm X
Continuous Shooting Up to 8 fps
Aperture modes Manual, Aperture Priority, Shutter Priority
Audio Input Microphone
Flash Sync Speed 1/250
Video Capture Format 4k
Expanded ISO Maximum 51200
Battery Weight 0.76 Grams
Delay between shots 0.25 seconds
Battery Cell Type Lithium Ion
Battery Type Lightweight lithium-ion battery
Water Resistance Level Not Water Resistant
Supported Audio Format AAC
Frame Rate 24 or 30 fps
Aspect Ratio 16:9
File Format JPEG, RAW
Effective Still Resolution 24.3 MP
JPEG Quality Level Fine
Maximum Image Size 24.3 MP
Bit Depth 14 Bit
Total Still Resolution 24.3 MP
Maximum Focal Length 50 Millimeters
Optical Zoom 3 x
Lens Type interchangeable
Zoom optical zoom
Camera Lens Interchangeable lens for digital camera
Number of Diaphragm Blades 7
Lens Construction 4 elements
Connectivity Technology HDMI, USB
Wireless Technology Wi-Fi
Video Output HDMI
Total USB 2.0 Ports 2
Total USB 3.0 Ports 2
Total Video Out Ports 1
Shooting Modes Aperture Priority, Landscape, Manual, Movie, Portrait, Shutter Priority, Sports
Digital-Still No
Movie Mode Yes
Image Capture Type Video
Night vision No
Auto Focus Technology Contrast Detection
Focus Features Contrast Detection Autofocus
Autofocus Points 1
Focus Type manual-and-auto
Focus Mode Manual Focus (MF)
Autofocus Hybrid AF with 325 points (phase and contrast detection)
Model Fujifilm X-T20
Sensor 24.3MP APS-C X-Trans CMOS III
Image Processor X-Processor Pro
Lens Mount Fujifilm X-Mount
Kit Lens XC16-50mm F3.5-5.6 OIS II
ISO Sensitivity ISO 200 - 12800 (expandable to 100-51200)
Video Recording 4K UHD (3840x2160) at 30fps, Full HD 1080p at 60fps
LCD Screen 3-inch tilting touchscreen, 1.04 million dots
Connectivity Built-in Wi-Fi (802.11b/g/n)
Storage Media SD, SDHC, SDXC (UHS-I compatible)
Battery NP-W126S lithium-ion battery
Dimensions 118.4 x 82.8 x 41.4 mm
Weight Approximately 383g (body only)
Build Magnesium alloy top plate and with partial weather sealing
Image Stabilization Optical Image Stabilization in lens (OIS II)
Flash Built-in pop-up flash and hot shoe for external flash
Release Date January 2017

Documents

User Manual (PDF) View Download

Key Advantages

The X-T20 offers a high-resolution sensor paired with Fujifilm's renowned color science for rich and natural images. Its hybrid autofocus system ensures quick and precise focusing, ideal for capturing moving subjects. The 4K video capability combined with advanced video features like F-Log and slow motion add versatility for videographers. The user-friendly touchscreen interface facilitates intuitive control and menu access. Compact and lightweight design makes it convenient for travel and everyday photography. The built-in Wi-Fi enables efficient wireless transfer and remote shooting, enhancing workflow.

Limitations

The 16-50mm kit lens has a variable aperture that may limit low-light performance compared to faster prime lenses. Battery life is moderate, with approximately 350 shots per charge, which may require carrying extra batteries for extended use. The camera lacks in-body image stabilization, relying on lens stabilization only. While the weather-sealing is present, it is limited and does not offer full protection against harsh environmental conditions. The electronic viewfinder resolution is relatively modest at 2.36 million dots compared to some competitors. 4K video recording is limited to 30fps, without 60fps options, which may restrict some creative video applications.
