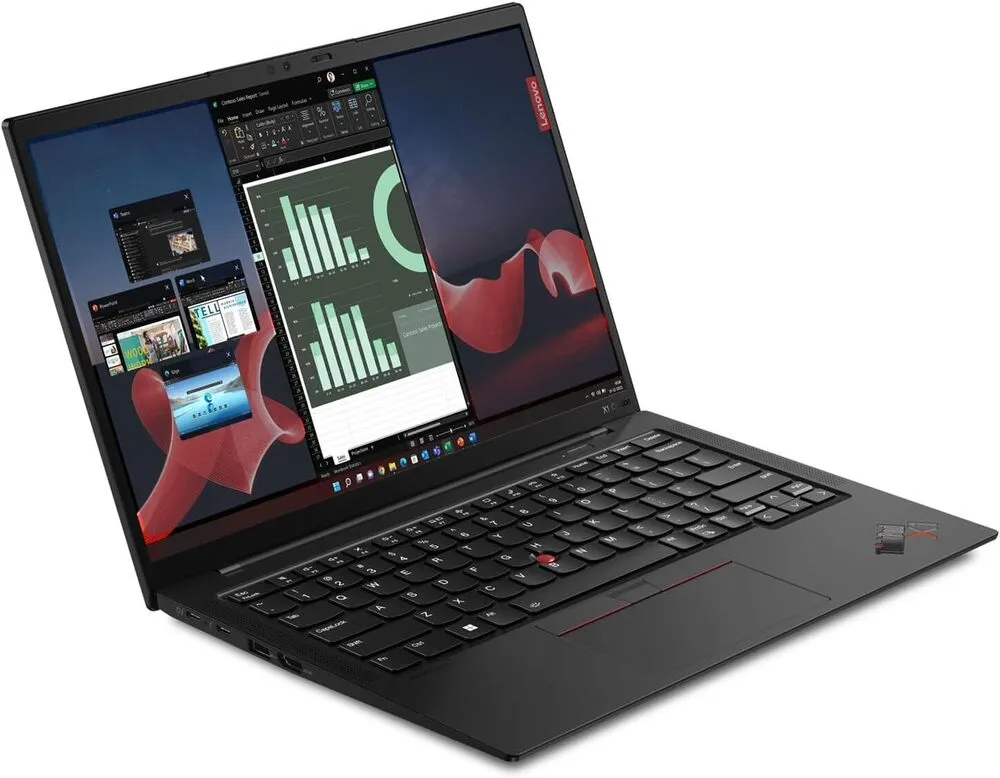

Lenovo ThinkPad X1 Carbon Gen 11 Laptop PC
Brand | Lenovo 2023 |
Model | 21HM Configured by |
Released Year | 2023 |
Type | Laptop |
Screen Resolution | 1920 x 1080 pixels |
Color | Touchscreen |
Processor | Up to Intel 13th Gen Core i7 (i5 options available) |
RAM | 32 LPDDR5 |
Hard Drive | 1 TB SSD |
Graphics Coprocessor | Intel Iris |
Chipset Brand | Intel |
Graphics Card Ram Size | 32 GB |
Status | Active |
Quick view
Overview

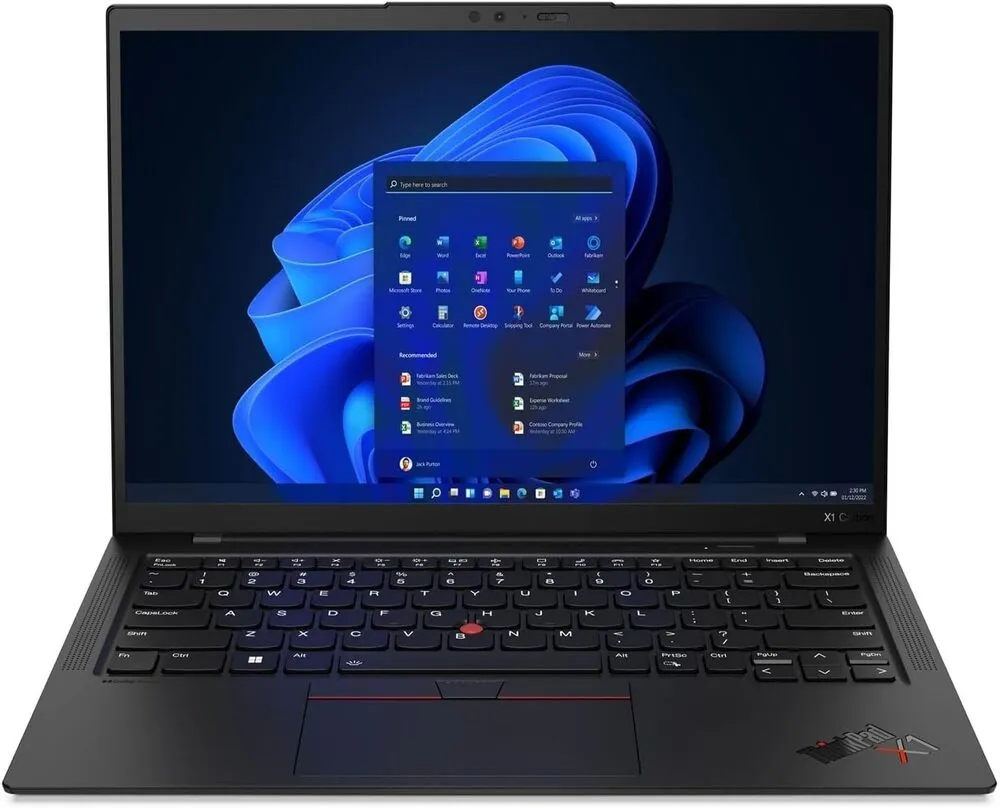

The Lenovo ThinkPad X1 Carbon Gen 11 is engineered with the latest Intel 13th Gen Core processors, delivering enhanced performance and power efficiency in a slim laptop chassis.
Equipped with a 14-inch display available in various resolutions including Full HD and UHD options, it supports 16:10 aspect ratio and Dolby Vision HDR for superior visual clarity and color accuracy.
This model integrates LPDDR5 memory up to 32GB and PCIe Gen 4 NVMe SSD storage, ensuring fast data access and multitasking capabilities.
The laptop features advanced connectivity options including Wi-Fi 6E, Bluetooth 5.3, multiple Thunderbolt 4 ports, and an HDMI output, supporting versatile external device usage.
Security is addressed via a fingerprint reader, IR camera for facial recognition, and Project Athena certification for responsiveness and longer battery life.
Its lightweight carbon fiber construction balances portability with durability, making it ideal for professional use and mobile computing.
Specifications
Standing screen display size | 14 Inches |
Screen Resolution | 1920 x 1080 pixels |
Max Screen Resolution | 1920x1200 Pixels |
Processor | Up to Intel 13th Gen Core i7 (i5 options available) |
RAM | 32 LPDDR5 |
Memory Speed | 6000 MHz |
Hard Drive | 1 TB SSD |
Graphics Coprocessor | Intel Iris |
Chipset Brand | Intel |
Card Description | Integrated |
Graphics Card Ram Size | 32 GB |
Wireless Type | Bluetooth |
Number of USB 3.0 Ports | 2 |
Series | ThinkPad X1 Carbon Gen 11 Laptop PC |
Item model number | 21HM Configured by Lenovo |
Operating System | Windows 11 Pro/Home |
Item Weight | 1.4 pounds |
Product Dimensions | 0.59 x 8.76 x 12.43 inches |
Item Dimensions LxWxH | 0.59 x 8.76 x 12.43 inches |
Color | Touchscreen |
Processor Brand | Intel |
Number of Processors | 10 |
Computer Memory Type | DDR5 RAM |
Hard Drive Interface | NVMe |
Optical Drive Type | No Optical Drive |
Voltage | 230 Volts |
Batteries | 1 Lithium Polymer batteries required. (included) |
Date First Available | July 22, 2023 |
Model | ThinkPad X1 Carbon Gen 11 |
Release Year | 2023 |
Graphics | Integrated Intel Iris Xe Graphics |
Display | 14-inch UHD (3840x2400) or FHD+ (1920x1200), Dolby Vision HDR, Touchscreen optional |
Memory | Up to 32GB LPDDR5 soldered |
Storage | Up to 2TB PCIe Gen 4 NVMe SSD |
Wireless | Wi-Fi 6E (802.11ax), Bluetooth 5.3 |

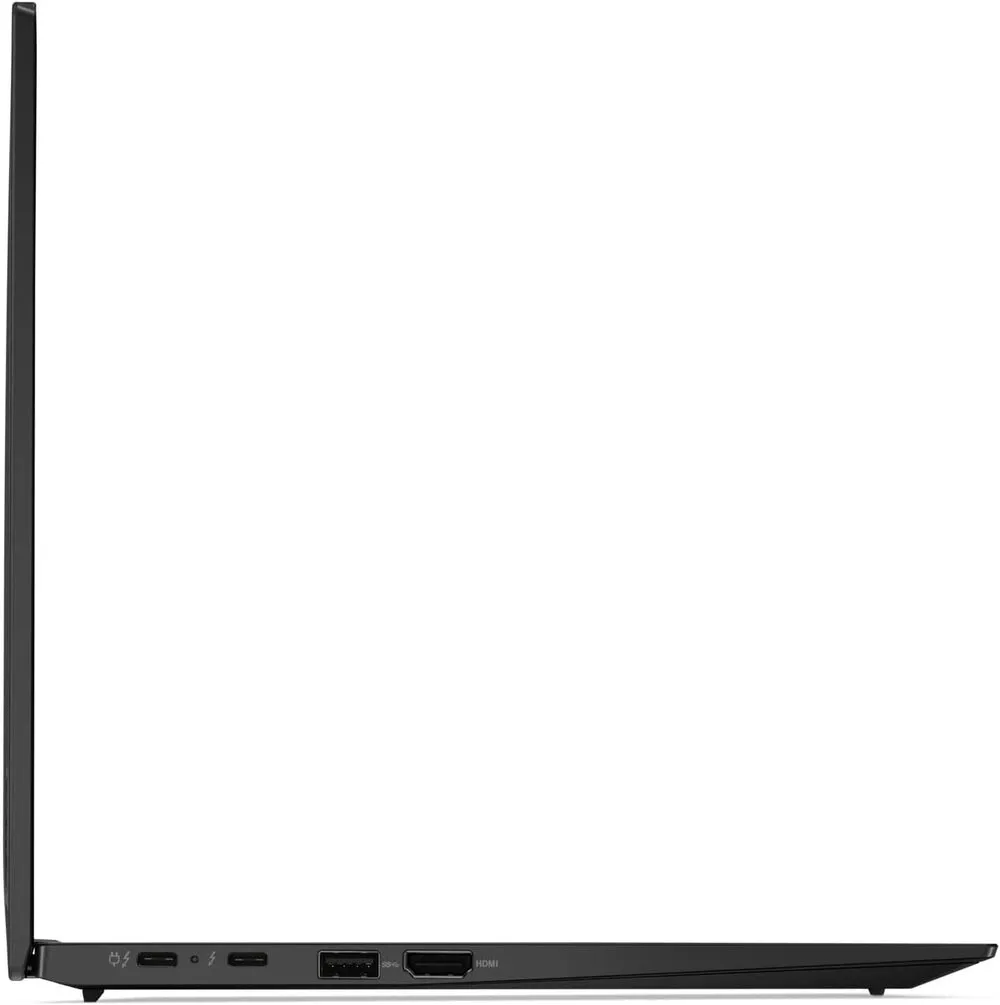

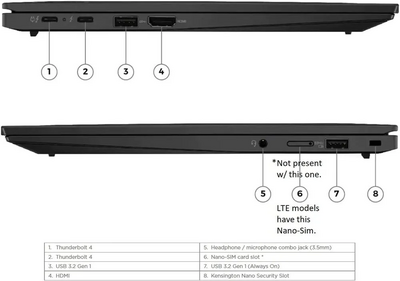

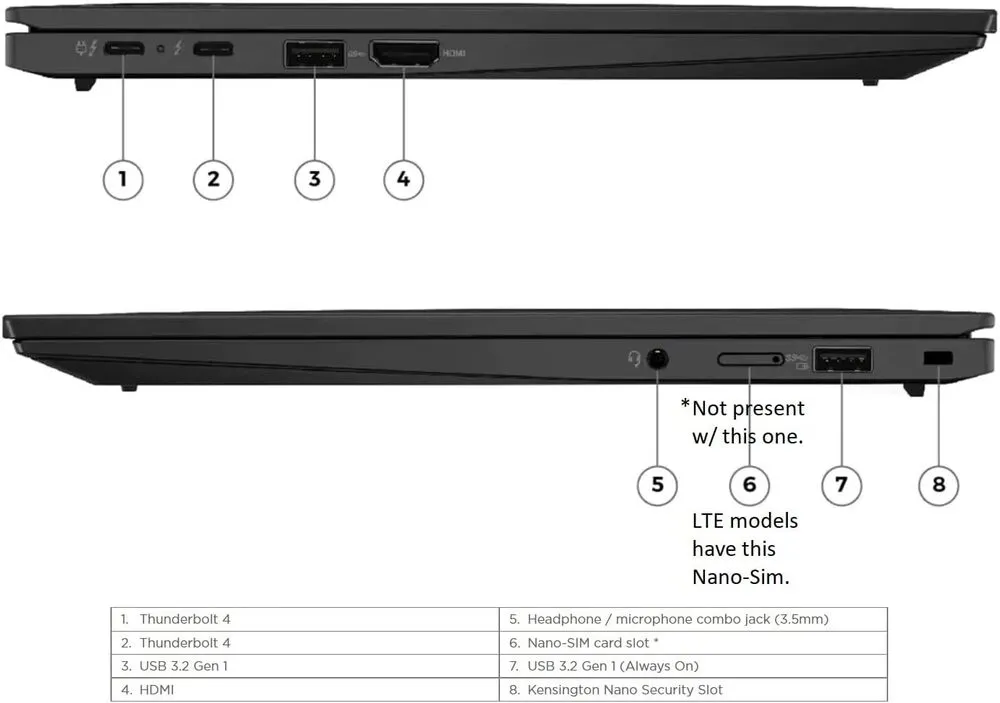

Ports | 2x Thunderbolt 4, 2x USB-A 3.2 Gen 1, HDMI 2.0, headphone/mic combo, microSD card reader |

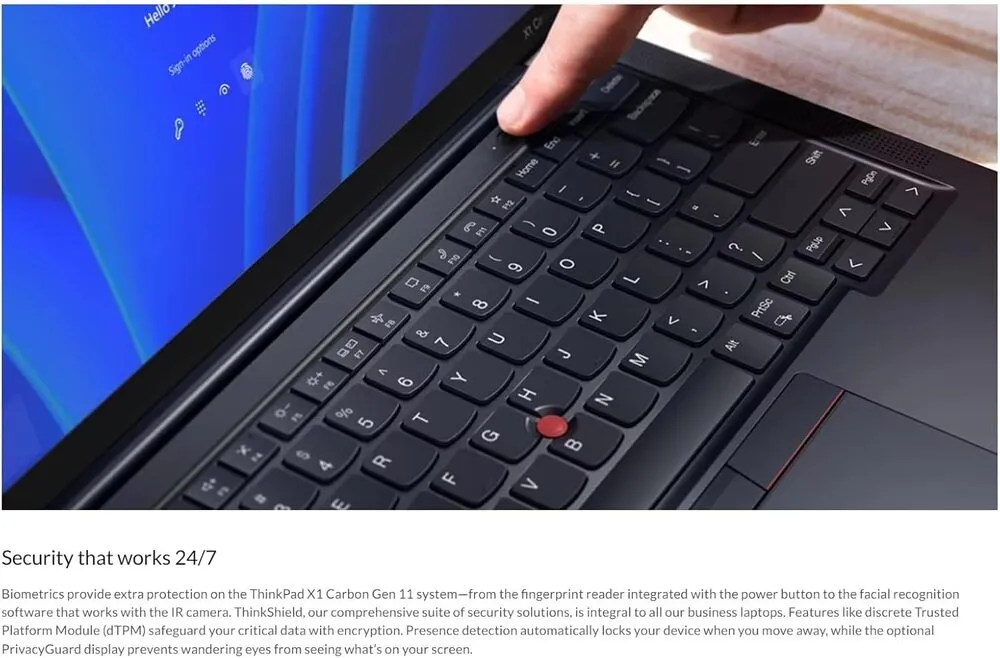

Security | Fingerprint reader, IR camera for Windows Hello, dTPM 2.0, PrivacyGuard |
Battery | Approximately up to 15 hours, varies by usage and display type |
Weight | Starting at 2.48 lbs (1.13 kg) |
Dimensions | 313.6x221.2x14.9 mm |

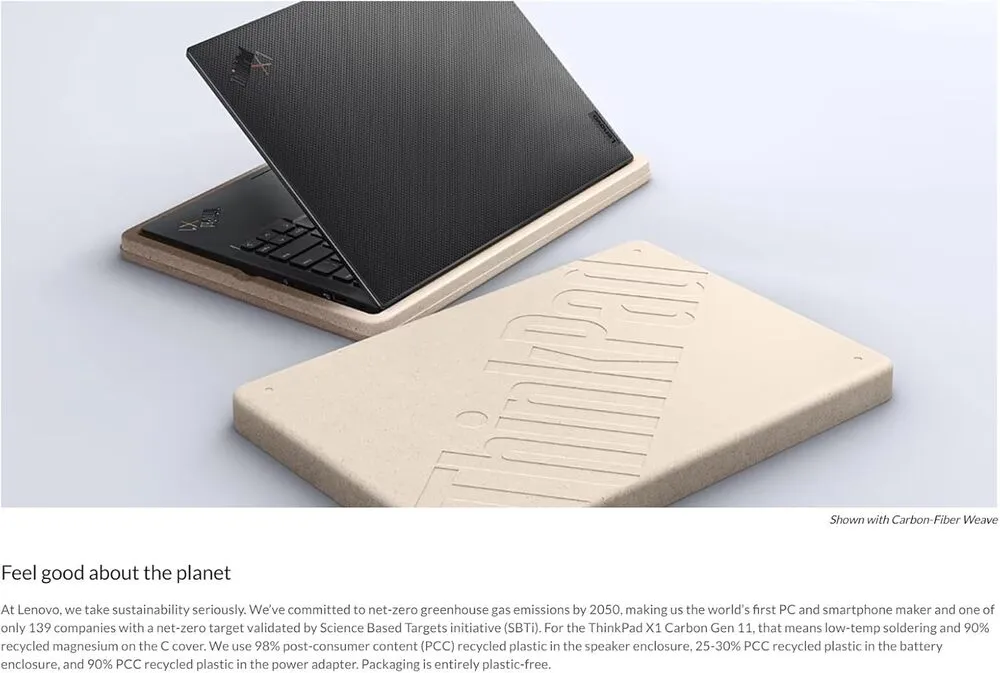

Chassis | Carbon fiber reinforced chassis |

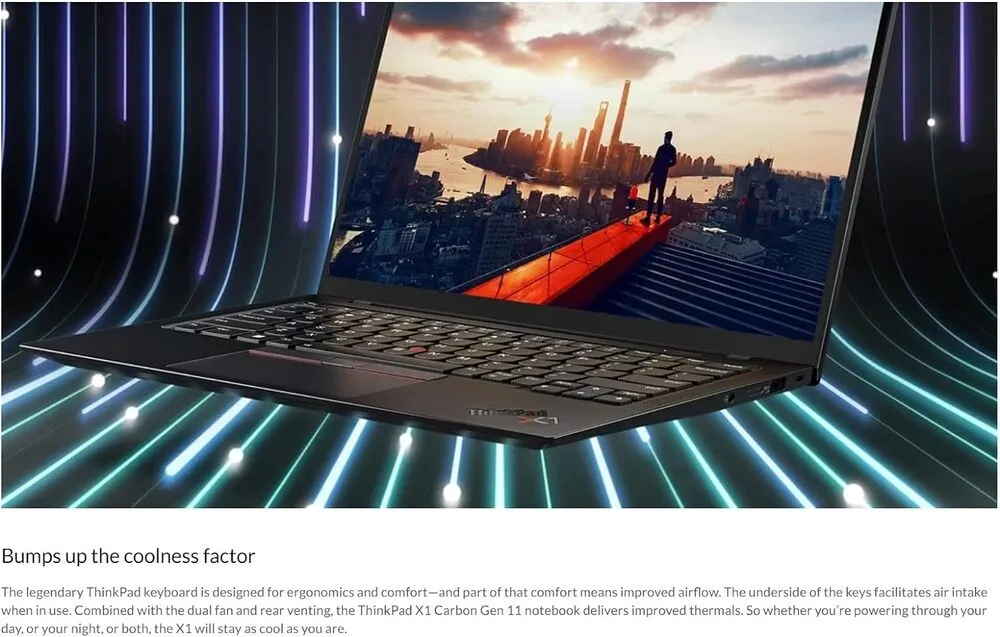

Keyboard | Backlit with TrackPoint and Precision Touchpad |
Images
Key Advantages
The ThinkPad X1 Carbon Gen 11 boasts cutting-edge Intel 13th Gen processors that significantly boost overall processing speed and energy efficiency.
Its display options include vibrant UHD panels with Dolby Vision HDR, enhancing media consumption and professional-grade color fidelity.
Ample LPDDR5 RAM and fast PCIe Gen 4 SSD options ensure smooth multitasking and rapid application loading.
The integration of Wi-Fi 6E and Thunderbolt 4 provides lightning-fast connectivity and comprehensive expansion possibilities.
Robust security features such as biometric authentication and firmware-based protections secure sensitive data effectively.
The lightweight yet sturdy carbon fiber design contributes to excellent portability without sacrificing durability.
Limitations
The top-tier UHD display options can significantly reduce battery life compared to Full HD variants, impacting mobile usage duration.
Upgrading internal components such as RAM and storage post-purchase is limited due to soldered LPDDR5 memory and fixed SSD configurations.
The premium build and advanced features result in a higher price point, potentially limiting accessibility for budget-conscious users.
Absence of a dedicated GPU restricts high-end graphics performance for specialized design or gaming tasks.
Port selection, while versatile, does not include legacy connectors like Ethernet without adapters, affecting users requiring wired networking.
The webcam is standard resolution; despite IR camera for Windows Hello, it may not meet requirements for ultra-high quality video conferencing.
FAQ
What processor options are available for the ThinkPad X1 Carbon Gen 11?
The laptop is equipped with Intel 13th Generation Core i5 and i7 processors, optimized for power efficiency and multi-core performance.
Does the ThinkPad X1 Carbon Gen 11 have a dedicated graphics card?
No, this model uses integrated Intel Iris Xe graphics rather than a dedicated GPU.
Can I upgrade the RAM or storage on this laptop?
The RAM is soldered and not upgradable; however, the PCIe Gen 4 SSD may be replaceable depending on the specific configuration.
What are the display options for the ThinkPad X1 Carbon Gen 11?
Display options include 14" Full HD (1920x1200), Touchscreen variants, and UHD (3840x2400) panels supporting Dolby Vision HDR.
What security features are included?
Security features include a fingerprint reader, IR camera for facial recognition, dTPM 2.0 chip, and optional PrivacyGuard display filter.
What connectivity ports does it have?
It includes Thunderbolt 4 ports, USB-A ports, HDMI 2.0 output, headphone/mic combo jack, and a microSD card reader.
Is the Lenovo ThinkPad X1 Carbon Gen 11 still being sold?
Yes, as of 2024, this model is current and not discontinued.
