OM SYSTEM Evolt E420
Brand | OM SYSTEM 2008 |
Model | 262080 |
Released Year | 2008 |
Type | DSLR Cameras |
Series | E420 |
Color | Black |
Compatible Mountings | Four Thirds |
Autofocus | Yes |
Photo Sensor Resolution | 10 MP |
Video Resolution | 1080p |
File Format | RAW |
Status | Discontinued |
Quick view
Overview
The OM SYSTEM Evolt E420 is a 10-megapixel DSLR camera that utilizes a Four Thirds System Live MOS sensor to capture high-quality images with good detail and color accuracy. It employs interchangeable lenses specifically designed for the Four Thirds mount system, enabling flexibility in shooting styles and focal lengths. The camera offers a shutter speed range of 1/4000 to 60 seconds, supporting diverse lighting conditions and creative exposure settings. ISO sensitivity ranges from 100 to 1600, allowing moderate low-light performance. The E420 features a 2.5-inch LCD screen for image review and menu navigation, along with a dedicated optical viewfinder for precise composition. Storage options include CompactFlash Type I and II and xD-Picture Card compatibility, providing versatile media support.
The camera supports TTL phase detection autofocus system with 3 AF points, enabling basic but effective subject focus tracking. It also provides continuous shooting capability at around 3 frames per second for capturing action sequences. Power is supplied by a rechargeable Li-ion battery pack, ensuring adequate usage time for both photography and playback functions. Connectivity includes USB 2.0 for image transfer and tethered shooting. Overall, the OM SYSTEM Evolt E420 is engineered as a user-friendly and compact DSLR suitable for entry-level photographers seeking manual control and decent image quality in a lightweight body.
Specifications
Built-In Media | Battery, Battery Charger, Instruction Manual, Shoulder Strap, USB Cable |
Are Batteries Included | No |
Remote Included | No |
Global Trade Identification Number | 00050332163874 |
UPC | 050332163874 |
Item Height | 3.58 inches |
Manufacturer | Olympus |
Screen Size | 2.7 Inches |
Display Type | LCD |
Display Resolution Maximum | 230,000 |
Has Color Screen | Yes |
Flash Memory Type | Compact Flash (Type I or II), xD Picture Card |
Auto Focus Technology | Continuous, Contrast Detection, Live View, Multi-area, Phase Detection, Selective single-point |
Focus Features | 3-point TTL Phase Diff, 11-point TTL Contrast Detect |
Autofocus Points | 3 |
Focus Type | Autofocus & Manual |
Focus Mode | Continuous-Servo AF (AF-C) |
Autofocus | Yes |
Aspect Ratio | 16:9 |
File Format | RAW |
Effective Still Resolution | 10 MP |
JPEG Quality Level | Fine |
Supported Image Format | RAW |
Total Still Resolution | 10 MP |
Lens Type | interchangeable |
Metering Methods | Spot |
Exposure Control | Automatic, Manual, Program, aperture-priority, bulb, shutter-priority |
White Balance Settings | Auto |
Self Timer | 10 Seconds |
Connectivity Technology | USB |
Wireless Technology | Yes |
Total USB 2.0 Ports | 1 |
Total USB Ports | 1 |
Shooting Modes | Landscape, Macro, Night Portrait, Panorama, Portrait, Sports, beach/snow, candle, children, document, fireworks, high key, landscape-portrait, low key, nature macro, sunset, underwater macro, underwater wide |
Digital-Still | Yes |
Movie Mode | No |
Image Capture Type | Stills |
Compatible Mountings | Four Thirds |
Sensor Type | Four Thirds Live MOS |
Image stabilization | Digital |
Expanded ISO Minimum | 100 |
Photo Sensor Resolution | 10 MP |
Photo Sensor Size | 1.5 |
Maximum Shutter Speed | 1/4000 Seconds |
Minimum Shutter Speed | 60 seconds |
Form Factor | Compact SLR |
Special Feature | Lightweight Design |
Color | Black |
Item Weight | 0.94 Pounds |
Video Resolution | 1080p |
Viewfinder | Optical (Pentaprism) |
Flash Modes | Automatic |
Camera Flash | Built-In |
Skill Level | Amateur |
Specific Uses For Product | Photography |
Compatible Devices | Computers |
Continuous Shooting | 3.5 |
Aperture modes | F2.8-F5.6 |
Viewfinder Magnification | 0.92x |
Flash Sync Speed | 1/4000_sec |
Expanded ISO Maximum | 25600 |
Battery Weight | 90 Grams |
Delay between shots | 0.29 seconds |
Battery Cell Type | Lithium Ion |
Battery Type | Lithium Ion |
Processor Description | TruePic III |
Water Resistance Level | Not Water Resistant |
Camera Type | Digital Single Lens Reflex (DSLR) |
Effective Megapixels | 10.0 MP |
Lens Mount | Four Thirds mount interchangeable lenses |
ISO Sensitivity | 100 – 1600 |
Shutter Speed Range | 1/4000 to 60 seconds |
Autofocus System | TTL Phase Detection, 3 AF points |
Continuous Shooting Speed | Approx. 3 fps |
LCD Screen | 2.5 inch, approximately 215,000 pixels |
Storage Media | CompactFlash Type I and II, xD-Picture Card |
File Formats | JPEG, RAW (ORF) |
Battery | Rechargeable Li-ion battery pack |
Connectivity | USB 2.0 |
Dimensions | Approx. 125 x 88 x 55 mm |
Weight | Approx. 475 g (body only) |

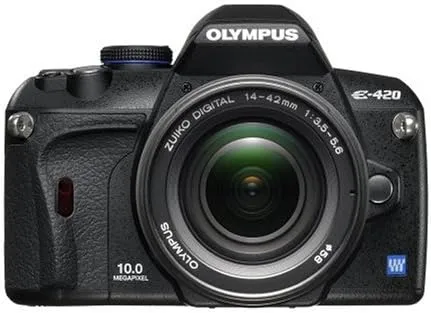

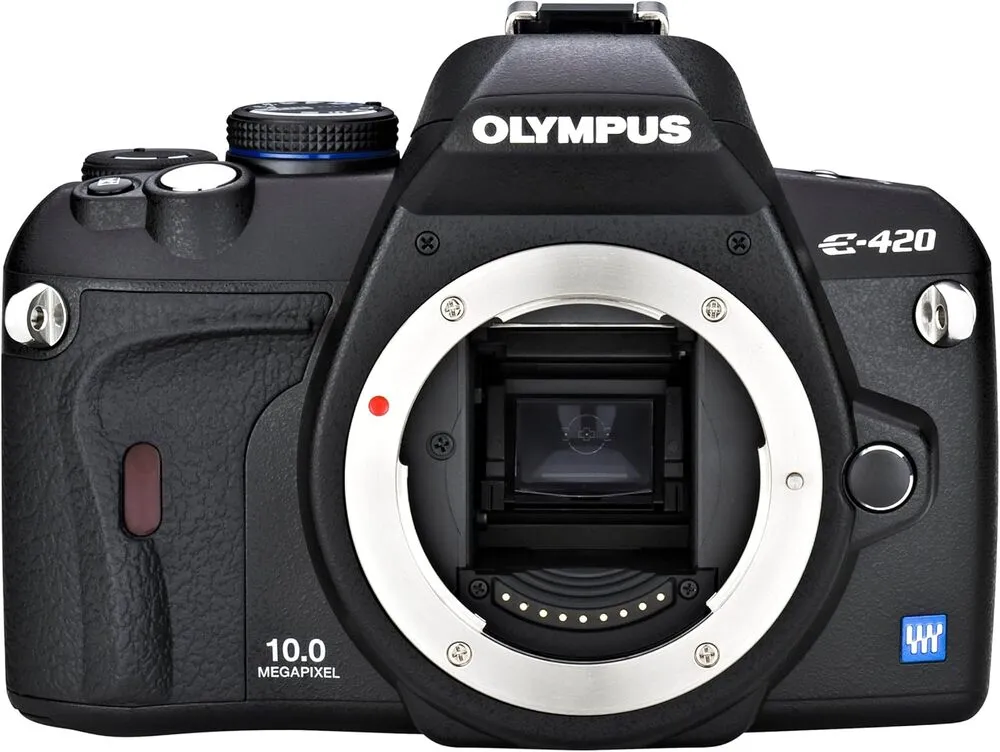

Images
Key Advantages
The Evolt E420 offers a lightweight and compact body that enhances portability without sacrificing DSLR functionality. Its Four Thirds sensor delivers sharp images with good color fidelity, supporting both JPEG and RAW formats for post-processing flexibility. Interchangeable lens mount provides extensive compatibility with a range of Olympus Four Thirds lenses for varied photographic needs. The TTL phase detection autofocus system, though basic, provides reliable focusing performance. Wide ISO range supports different lighting environments, and the inclusion of dual storage media types offers convenient data management. Additionally, 3 frames per second continuous shooting aids in capturing fast-moving subjects effectively.
Limitations
Compared to more modern DSLRs, the E420 has a relatively limited ISO maximum (1600), which impacts low-light performance and noise levels. The autofocus system is basic with only 3 focus points, limiting precise focus tracking on moving subjects. The rear LCD screen resolution is relatively low by current standards, which affects image preview sharpness. Burst shooting speed is modest at around 3 fps, insufficient for high-speed action photography. The absence of video recording capability restricts multimedia use. Battery life, while adequate, is outpaced by newer models with more efficient power management.
FAQ
What sensor type does the OM SYSTEM Evolt E420 use?
The Evolt E420 uses a Four Thirds System Live MOS sensor with a resolution of 10 megapixels.
Which lenses are compatible with the Evolt E420?
It supports interchangeable lenses designed for the Four Thirds mount system used by Olympus and OM SYSTEM.
Does the Evolt E420 support video recording?
No, the Evolt E420 does not have video recording capabilities.
What is the ISO range of the Evolt E420?
The camera features an ISO sensitivity range from 100 to 1600.
What types of storage media does the Evolt E420 support?
It supports CompactFlash Type I and II cards as well as xD-Picture Cards.
How fast can the Evolt E420 shoot continuously?
It offers continuous shooting at approximately 3 frames per second.
Is the OM SYSTEM Evolt E420 still available new on the market?
No, the OM SYSTEM Evolt E420 has been discontinued.
