Olympus E-420
| Brand | Olympus 2008 |
| Model | E-420 |
| Released Year | 2008 |
| Type | DSLR Cameras |
| Series | Evolt |
| Color | Black |
| Optical Zoom | N/A |
| Status | Discontinued |
Overview

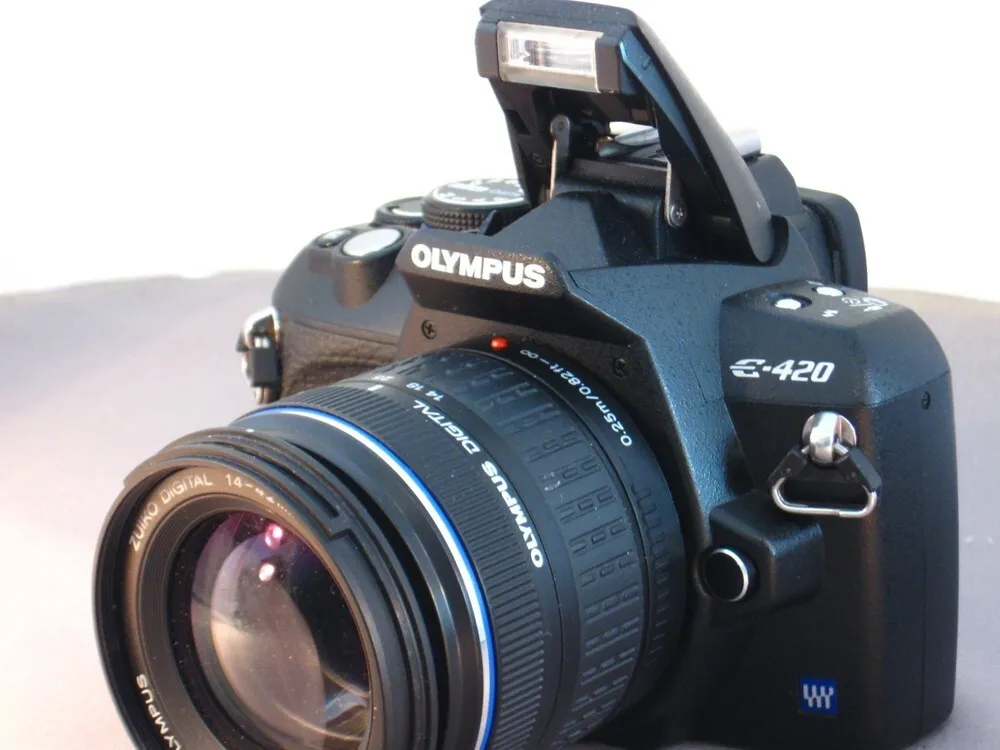

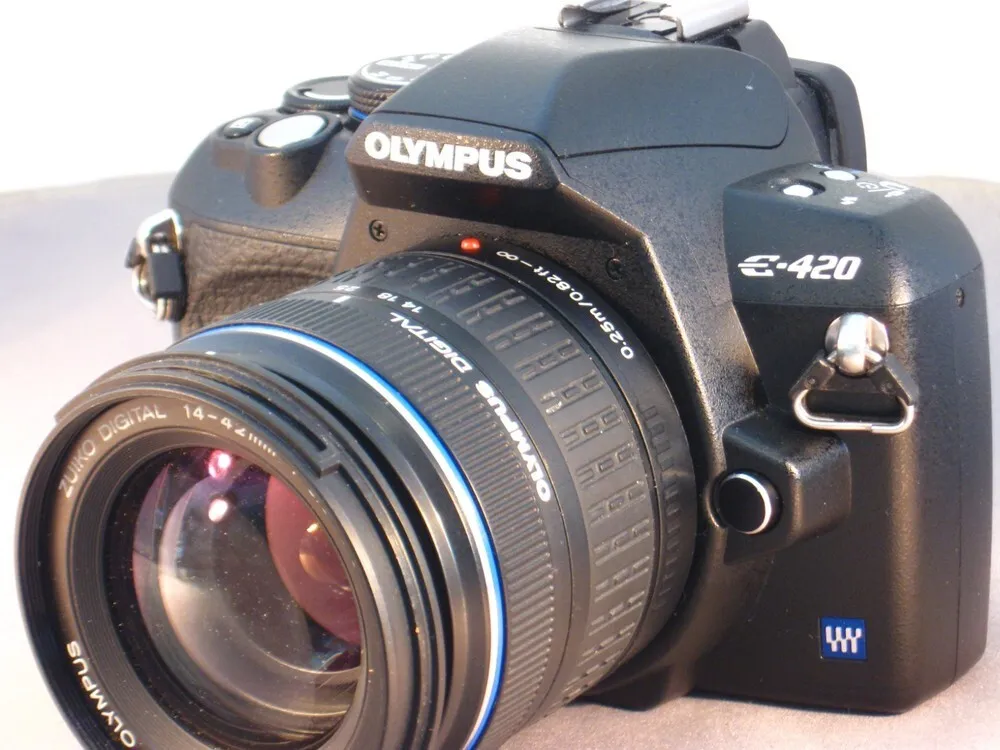

The Olympus E-420 is a digital SLR camera released in 2008 as part of the Evolt series, featuring a 10-megapixel Live MOS sensor for high-resolution images. It supports Four Thirds System lenses, providing compatibility with a range of optics. The camera uses a 2.7-inch LCD screen for image preview and settings navigation. It has a built-in pop-up flash and supports various exposure modes for versatile shooting. The E-420 offers an ISO range from 100 to 1600 to adjust to different lighting conditions. It stores images on CompactFlash Type I or II cards.
Specifications
| MPN |
|
| UPC |
|
| Model |
|
| Battery Type | Lithium-Ion |
| Type | Digital SLR |
| Color | Black |
| Connectivity | USB |
| Series |
|
| Depth |
|
| Width | 5.1in |
| Item Weight |
|
| Height |
|
| Screen Details | LCD Display-Tft Active Matrix-2.7"-Color |
| Exposure Compensation | ±5 Ev Range, in 1, 1/2 or 1/3 Ev Steps |
| Light Sensitivity | Iso 100-1600, Iso Auto (100-1600) |
| Sensor Type | Live Mos |
| Max Shutter Speed | 1/4000 Sec |
| Lens Type | Zoom Lens |
| Exposure Range | Ev 1-20 (Iso 100) |
| Focal Length Equivalent to 35mm Camera |
|
| Special Effects | Monotone, Black & White Green Filter, Neutral, Blue, Portrait, Black & White Yellow Filter, Vivid, Black & White Orange Filter, Purple, Sepia, Black & White Red Filter, Green, Muted |
| Camera Flash Features |
|
| White Balance |
|
| Focus Adjustment |
|
| Battery Form Factor | Manufacturer Specific |
| Expansion Slot | 1X xD-Picture Card, 1X CompactFlash Card-Type I/II |
| Sensor Size | 13.0x17.3mm |
| Display Size | 2.7in |
| Exposure Modes | Program, Aperture-Priority, Bulb, Shutter-Priority, Manual, Automatic |
| Still Image Format |
|
| Display Rotation | Built-In |
| Screen Size |
|
| Lens System Features | Internal Focusing System, Ed Glass |
| Light Sensitivity Max | 1600 |
| Max Operating Temperature | 40°C |
| Maximum Resolution |
|

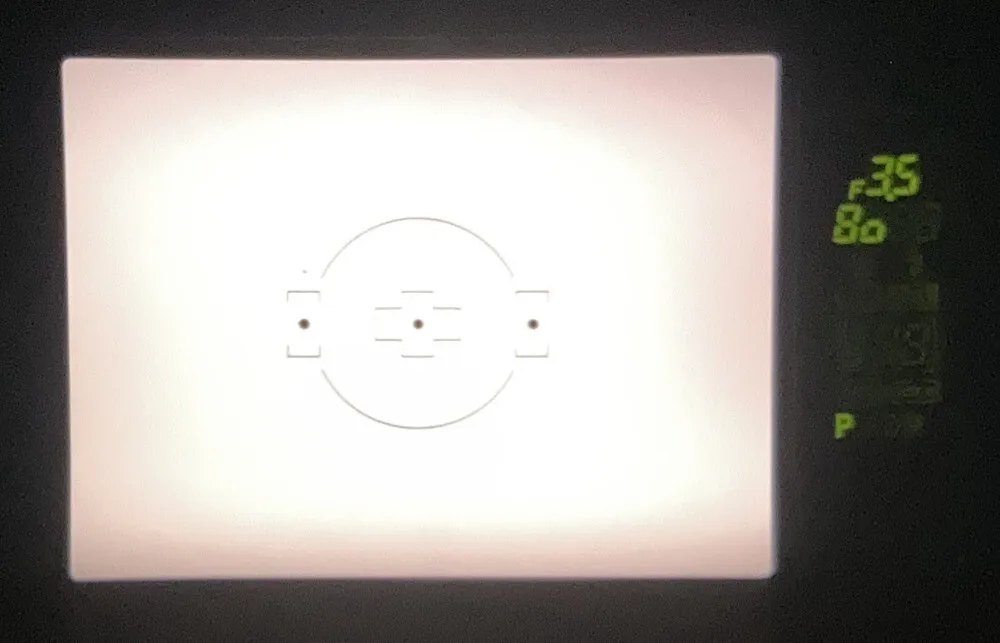

| Optical Viewfinder Type | Eye-Level Penta-Dach Mirror |
| Red Eye Reduction | Yes |
| Min Shutter Speed | 8 Min |
| Focal Length Range | 14mm-42mm |
| Display Type | LCD |
| Lens Construction | 8 Group(s) / 10 Element(s) |
| Sensor Resolution | 10.0MP |
| Lens Filter Size | 58mm |
| Exposure Metering | Multi-Segment, Spot, Highlight Spot, Center-Weighted, Shadow Spot |
| Additional Features |
|
| Flash Type | Pop-Up Flash |
| Min Operating Temperature | 0°C |
| Viewfinder-Field Coverage | 95% |
| Exterior Color | Black |
| Features |
|
| Connector Types | 1X Composite Video Output, 1X Remote Control, 1X USB |
| Shooting Programs | Landscape-Portrait, Portrait Mode, Landscape, Nature Macro, Underwater Macro, Macro, Document, High Key, Beach/Snow, Sunset, Candle, Underwater Wide, Low Key, Sports Mode, Night Portrait, Night Scene, Children, Fireworks, Panorama Assist |
| Flash Modes | Red-Eye Reduction, Slow Synchro, Fill-In Mode, Off Mode, Auto Mode, Rear Curtain Sync |
| Dioptric Correction Range | -3 to +1 |
| Viewfinder Magnification | 0.92x |
| Camera Type | Digital SLR |
| Auto Focus Type | TTL Contrast and Phase Detection |
| Viewfinder Type | Optical, Optical (Through-The-Lens) |
| Lens for Sd |
|
| Supported Flash Memory | CompactFlash Card Type I, CompactFlash Card Type II, xD-Picture Card, xD-Picture Card Type H, Microdrive, Ibm Microdrive, xD-Picture Card Type M, CompactFlash |
| Continuous Shooting Speed | 3.5fps |
| Seller Notes | “Olympus E-420 10MP DSLR Camera w/Zuiko Digital 35mm f3.5 [Exc+5] Japan / ... |
| Maximum Aperture | N/A |
| Digital Zoom | N/A |
| Optical Zoom | N/A |
| Country/Region of Manufacture | China |
| Charger Included | No |

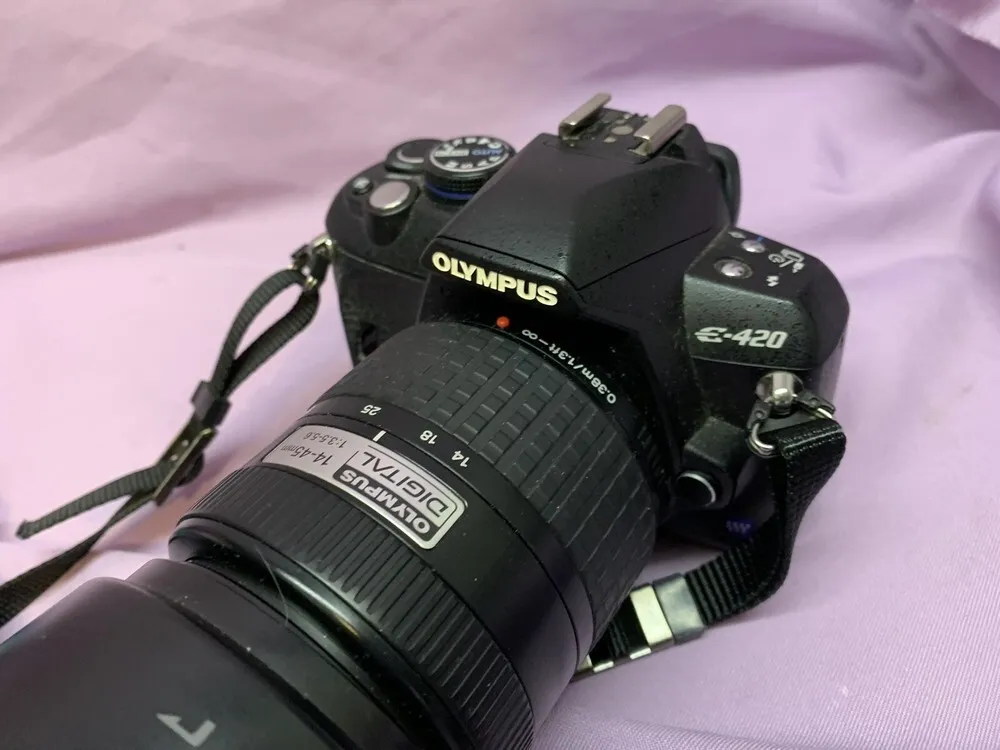

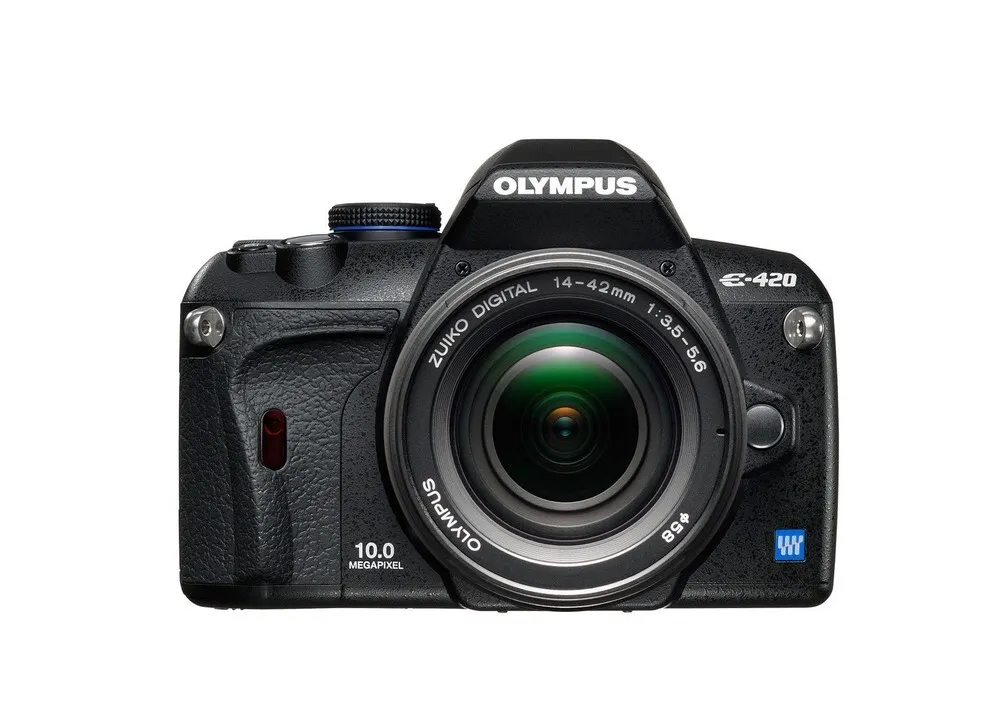

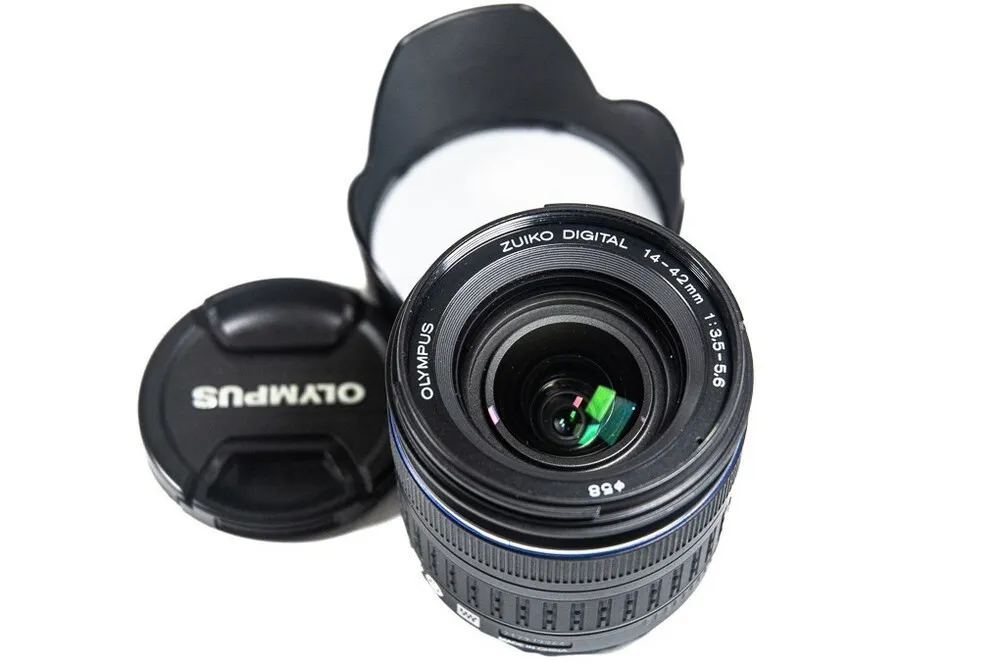

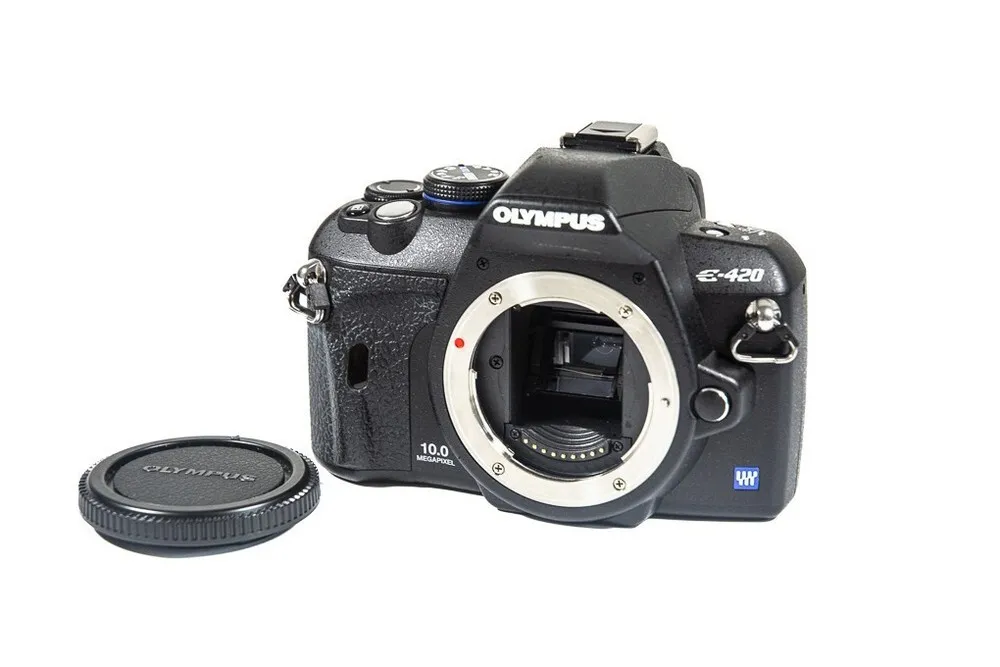

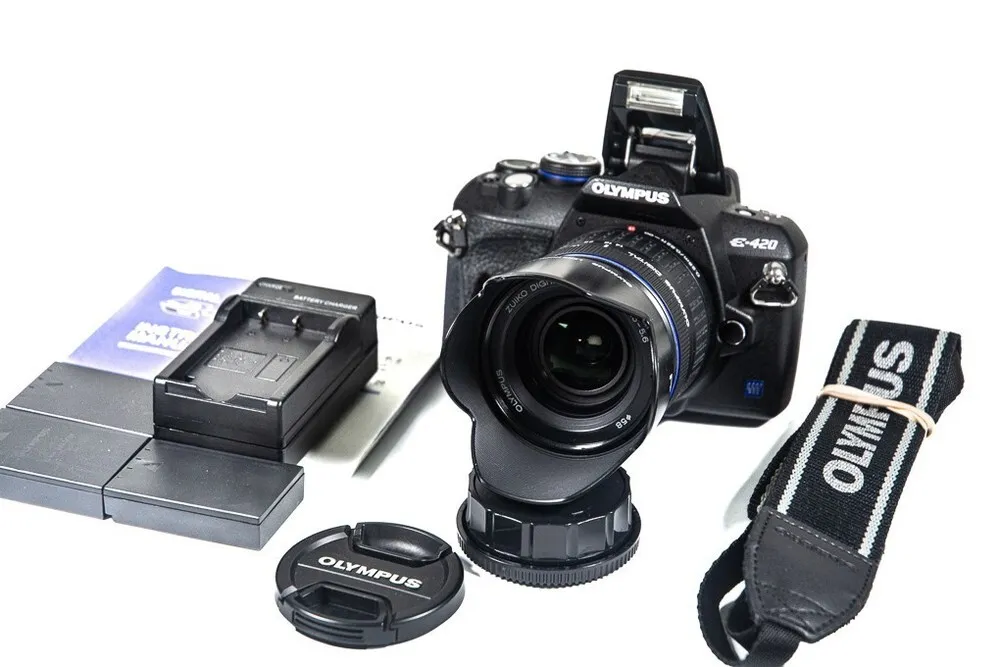

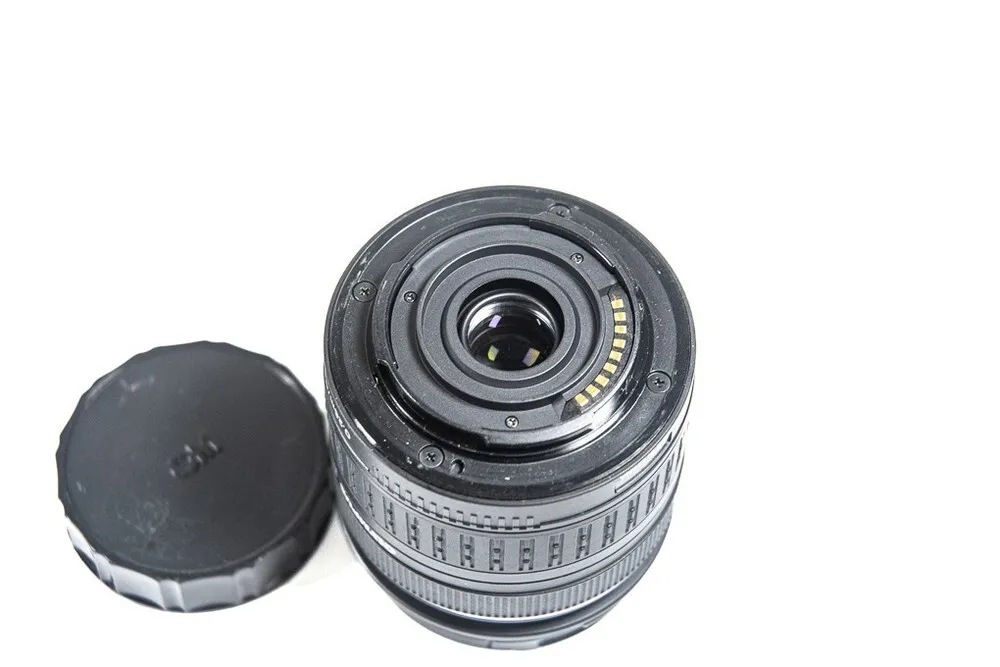

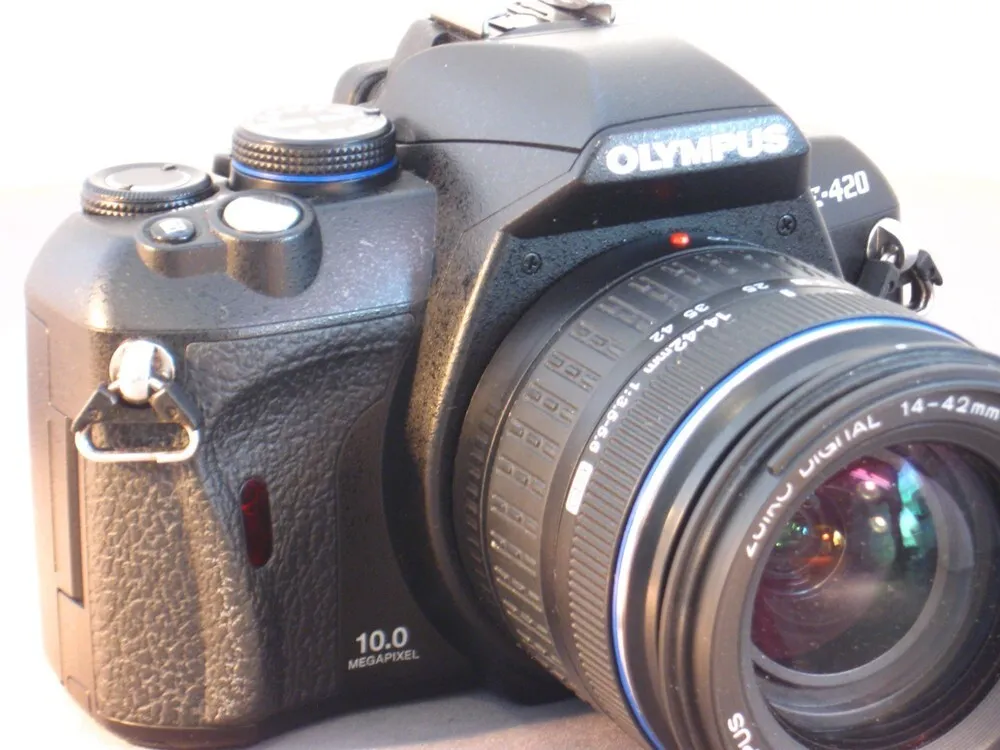

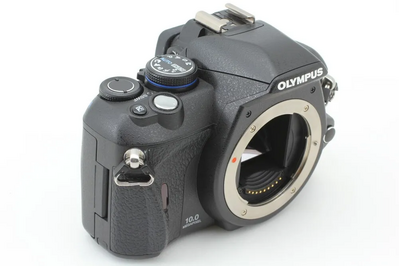

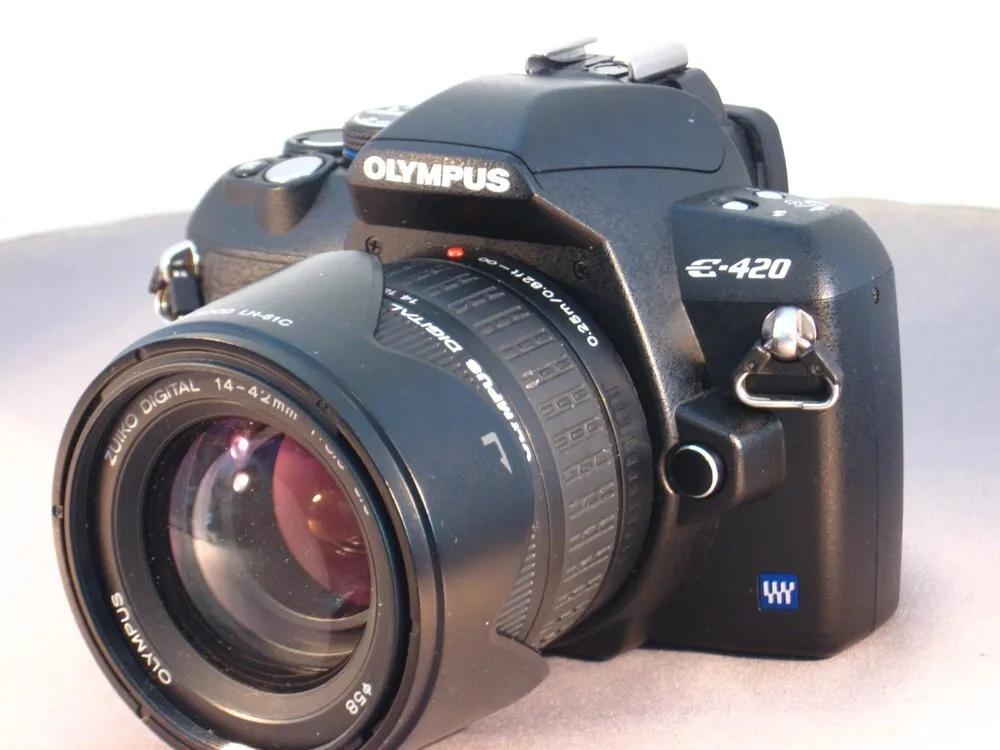

Images
Key Advantages
The E-420 stands out for its compact and lightweight design, making it portable for everyday use. Its Live MOS sensor delivers sharp and detailed images with accurate color reproduction. The camera's compatibility with Four Thirds lenses offers photographers flexibility in lens selection. It includes image stabilization at the lens level, enhancing image clarity by compensating for camera shake. The intuitive user interface simplifies camera operation, accessible to both beginners and experienced users. Additionally, the articulated LCD screen allows for easy framing at various angles.
Limitations
One limitation of the Olympus E-420 is its relatively modest continuous shooting speed, which may not suit fast-paced action photography. The ISO range, while adequate, does not perform as well in low light compared to newer models with higher maximum ISO values. The screen resolution is modest by modern standards, affecting detailed live view and playback clarity. It lacks video recording capabilities, limiting multimedia functionality. The autofocus system, although reliable, is not the fastest in its class. Battery life is average, requiring spare batteries for extended shooting sessions.
FAQ
What sensor type does the Olympus E-420 use?
The Olympus E-420 uses a 10-megapixel Live MOS sensor.
Is the Olympus E-420 compatible with Four Thirds lenses?
Yes, it supports lenses designed for the Four Thirds System.
Does the Olympus E-420 have video recording capabilities?
No, the E-420 does not support video recording.
What is the ISO range of the Olympus E-420?
The ISO range is from 100 to 1600.
Does the Olympus E-420 feature image stabilization?
Yes, it includes image stabilization at the lens level.
Is the Olympus E-420 still in production?
No, the Olympus E-420 has been discontinued.
What type of memory card does the Olympus E-420 use?
It uses CompactFlash Type I or II memory cards.
