Canon 20D
| Brand | Canon 2004 |
| Model | 9442A002 |
| Released Year | 2004 |
| Type | DSLR Cameras |
| Series | EOS |
| Color | Black |
| Compatible Mountings |
|
| Autofocus | Yes |
| Photo Sensor Resolution | 8.2 MP |
| Video Resolution | 2K DCI 1080p |
| Optical Zoom | 3 x |
| File Format | TIFF, RAW, JPEG |
| Status | Discontinued |
Quick view
Overview
The Canon EOS 20D is a digital single-lens reflex (DSLR) camera introduced in 2004 as part of Canon's EOS series. It features an 8.2-megapixel APS-C CMOS sensor, providing high-resolution image capture suitable for professional photography. The camera is equipped with a DIGIC II image processor ensuring rapid image processing and improved performance in low-light conditions. The EOS 20D offers a 9-point autofocus system with enhanced accuracy and speed, supporting up to 5 frames per second continuous shooting. Its ISO sensitivity ranges from 100 to 1600, expandable up to 3200, allowing versatile usage across different lighting environments. This model supports compatibility with Canon EF lenses, featuring a robust magnesium alloy body and a 1.8-inch LCD screen for image review and menu navigation.
Specifications
| Age Range Description | Adult |
| Built-In Media | Battery Charger, Battery, Eyecup, Neck Strap, USB Cable, Instruction Manual |
| Are Batteries Included | No |
| Remote Included | No |
| Series Number | 20 |
| UPC | 0013803044430 |
| Item Height | 4.17 inches |
| Manufacturer | Canon Cameras US |
| Unit Count | 1.0 Count |
| Connectivity Technology | USB |
| Wireless Technology | Yes |
| Total USB 2.0 Ports | 1 |
| Total USB Ports | 1 |
| Shooting Modes | Landscape, Portrait, Night Portrait, Close-up, Sports |
| Digital-Still | Yes |
| Movie Mode | No |
| Image Capture Type | Stills |
| Night vision | No |
| Auto Focus Technology | Phase Detection, Selective single-point, Multi-area, Single, Continuous |
| Focus Features | Multi-BASIS TTL, 9 focus points (diamond shape) |
| Autofocus Points | 9 |
| Focus Type | Automatic with Manual |
| Focus Mode | Single-Servo AF (AF-S) |
| Autofocus | Yes |
| Aspect Ratio | 1.27:1 |
| File Format | TIFF, RAW, JPEG |
| Effective Still Resolution | 8.2 MP |
| JPEG Quality Level | Basic, Fine, Normal |
| Supported Image Format | JPEG, RAW |
| Bit Depth | 12 Bit |
| Total Still Resolution | 8.2 MP |
| Optical Zoom | 3 x |
| Lens Type | Zoom |
| Zoom | Optical Zoom |
| Camera Lens | Canon EF-S 18-55mm f/3.5-5.6 |
| Real Angle Of View | 28.8 Degrees |
| Focal Length Description | 18-55 mm |
| Digital Zoom | 3x |
| Lens Construction | 5 elements in 4 groups |
| Metering Methods | Evaluative, Partial, Center-weighted average |
| Exposure Control | aperture-priority AE, Program AE, Manual, depth-of-field AE, shutter-priority AE, E-TTL II |
| White Balance Settings | Auto, Flash torch |
| Screen Size | 1.8in |
| Display Type | LCD |
| Dots Per Screen | 118000 |
| Display Fixture Type | Fixed |
| Display Resolution Maximum | 118,000 |
| Has Color Screen | Yes |
| Flash Memory Type | Compact Flash |
| Memory Slots Available | 1 |
| Memory Storage Capacity | 64 GB |
| Write Speed | 5 fps |
| Flash Memory Bus Interface Type | SATA |
| Compatible Mountings |
|
| Sensor Type | Cmos |
| Image stabilization | Optical |
| Maximum Aperture | 1.8 Millimeters |
| Expanded ISO Minimum | 100 |
| Photo Sensor Resolution | 8.2 MP |
| Photo Sensor Size | APS-C |
| Maximum Shutter Speed | 1/8000 seconds |
| Minimum Shutter Speed | 30 seconds |
| Form Factor | Compact DSLR |
| Special Feature | Image Stabilization |
| Color | Black |
| Item Weight | 685g |
| Video Resolution | 2K DCI 1080p |
| Viewfinder | Optical |
| Flash Modes | Red-Eye Reduction, E-TTL, Auto Mode, Fp Flash (High-Speed Synchro) |
| Camera Flash | Built-In |
| Skill Level | Amateur, Professional |
| Specific Uses For Product | Photography |
| Compatible Devices | Canon EF Lenses, Canon EX Speedlites |
| Continuous Shooting | 5 |
| Aperture modes | F3.5–F5.6 |
| Viewfinder Magnification | 0.9X |
| Flash Sync Speed | 1/250_sec |
| Video Capture Format | MOV, MP4 |
| Expanded ISO Maximum | 3200 |
| Battery Weight | 1 Grams |
| Delay between shots | 0.2 seconds |
| Battery Cell Type | Lithium Ion |
| Battery Type | Lithium-Ion |
| MPN | 9442A002 |
| Series | Canon EOS |
| Type | Digital SLR |
| Maximum Resolution | 8.2MP |
| Model | EOS 20D |
| Connectivity | USB |
| Features | Direct Print, Auto Focus, Digital Noise Reduction, Auto White Balance, USB 2.0 |
| Charger Included | Yes |
| Depth | 2.8in |
| Width | 5.7in |
| Height | 4.2in |
| Screen Details | LCD Display-Tft Active Matrix-1.8"-Color |
| Exposure Compensation | ±2 Ev Range, in 1/2 or 1/3 Ev Steps |
| Light Sensitivity | Iso 800, Iso 400, Iso 1600, Iso 200, Iso 100, Iso Auto (100-400), Iso 3200 |
| Exposure Range | Ev 1-20 (Iso 100) |
| Focal Length Equivalent to 35mm Camera | 28-135mm |
| Special Effects | Monotone |
| Camera Flash Features | Flash OFF!, Ratio Control, Af Illuminator, Flash +/- Compensation, Red-Eye Reduction Flash, Forced ON, Auto Flash |
| White Balance | Auto, Colour Temperature Adjust, Tungsten (Preset), Flash (Preset), Cloudy (Preset), Manual, Shade (Preset), Fluorescent (Preset), Daylight / Sunny (Preset) |
| Battery Form Factor | Manufacturer Specific |
| Focus Adjustment | Autofocus & Manual Focus, Manual, Automatic |
| Expansion Slot | 1X CompactFlash Card-Type I/II |
| Operating System Supported | Apple Mac Os 9.0-9.2, Microsoft Windows 98SE, Mississippi Windows 98, Microsoft Windows XP, Microsoft Windows ME, Mississippi Windows XP, Mississippi Windows ME, Microsoft Windows 98, Apple Mac Os X 10.1, Apple Mac OS X 10.2, Apple Mac OS X 10.3, Microsoft Windows 2000, Mississippi Windows 2000, Mississippi Windows 98SE |
| MAX Shutter SPEED | 1/8000 Sec |
| Sensor Size | 15.0x22.5mm |
| Display Size | 1.8in |
| Still Image Format | Exif 2.2, Raw Image, Dpof 1.1, Raw + JPEG, Raw, JPEG |
| Exposure Modes | Program, Aperture-Priority, Bulb, Shutter-Priority, Manual, E-TTL II Program Flash, Depth-Of-Field, Automatic |
| Display Rotation | Built-In |
| Light Sensitivity MAX | 3200 |
| Optical Viewfinder Type | Fixed Eye-Level Pentaprism |
| Floppy Drive Storage | None |
| Sensor Resolution | 8.2MP |
| Exposure Metering | Evaluative, Center-Weighted, Partial (9%) |
| Min Shutter SPEED | 30 Sec |
| Additional Features | Direct Print, Digital Noise Reduction, Auto White Balance, USB 2.0, Autofocus |
| Flash Type | Pop-Up Flash |
| Min Operating Temperature | 0°C |
| Effective Flash Range | 3.5m |
| Continuous Shooting SPEED | 5fps |
| Viewfinder-Field Coverage | 95% |
| Exterior Color | Black |
| Microphone Type | None |
| MAX Operating Temperature | 40°C |
| Connector Types | 1X Composite Video/Audio Output, 1X Composite Video Output, 1X Remote Control, 1X Flash Terminal, 1X USB |
| Shooting Programs | Portrait Mode, Landscape, Sports Mode, Macro, Night Portrait, Close-Up |
| Dioptric Correction Range | -3 to +1 |
| Red-Eye Reduction | Yes |
| Camera Type | Digital SLR |
| Auto Focus Type | TTL Phase Detection |
| Viewfinder Type | Optical, Optical (Through-The-Lens) |
| Lens for Sd | Body only |
| Supported Flash Memory | CompactFlash Card Type I, CompactFlash Card Type II, CompactFlash II, Microdrive, Ibm Microdrive, CompactFlash I |

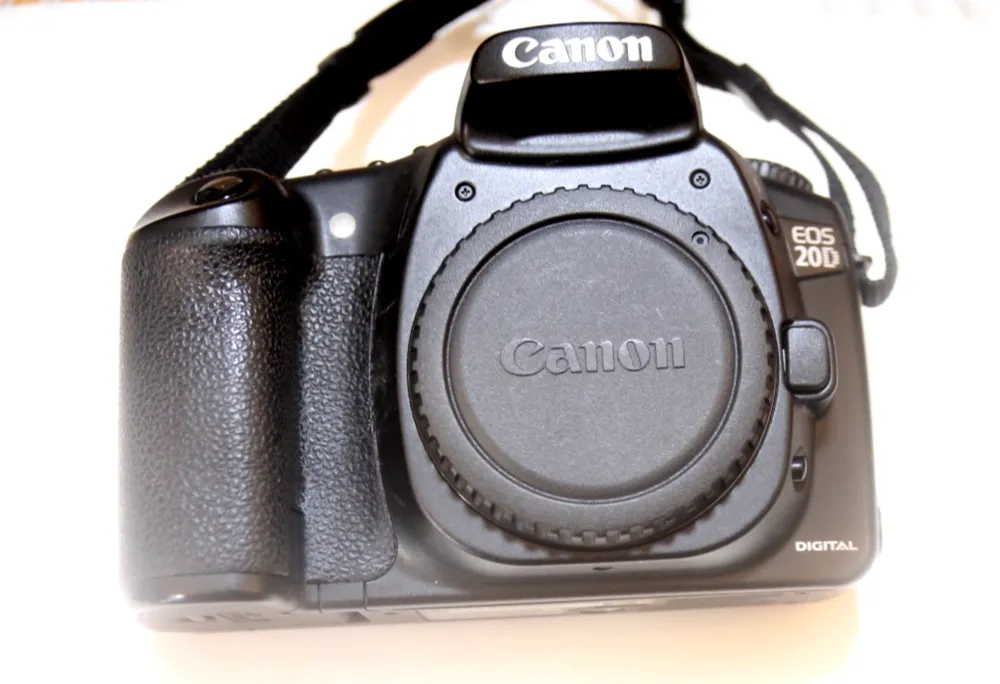

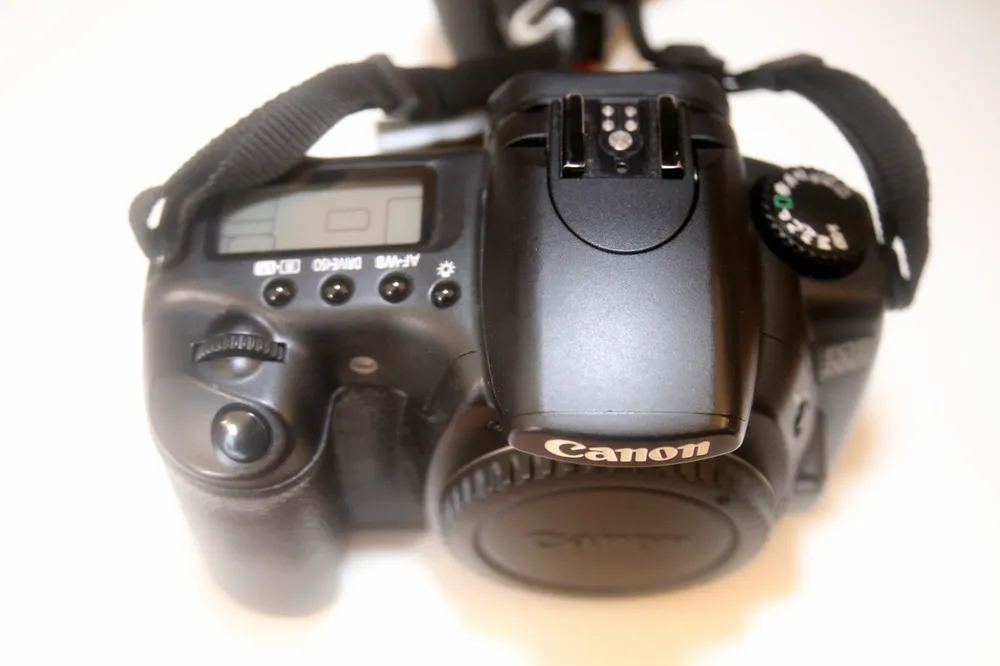

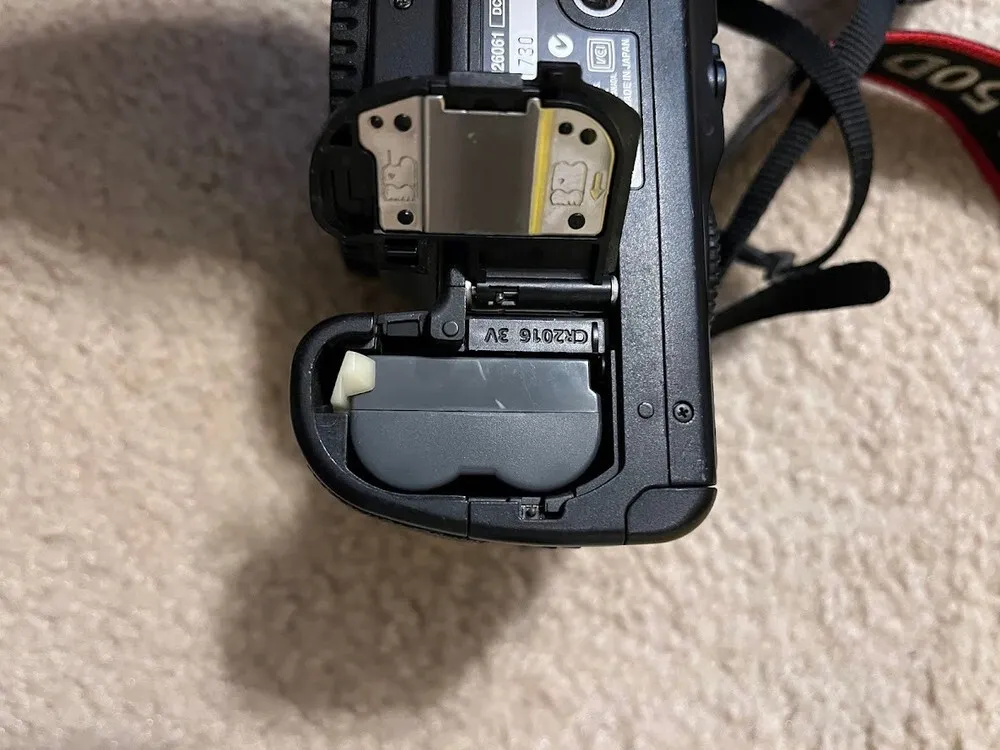

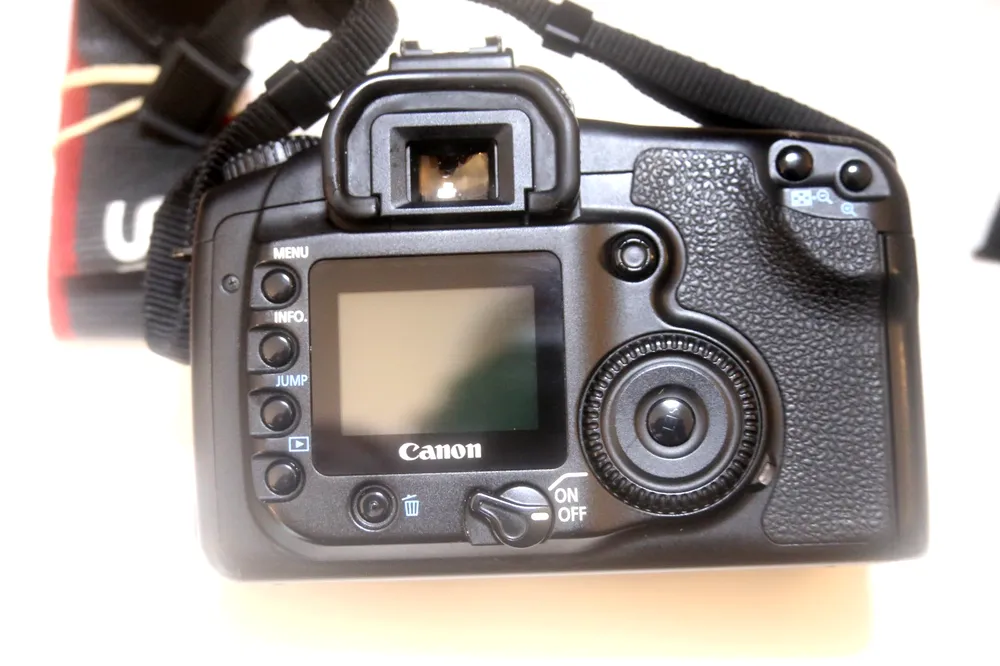

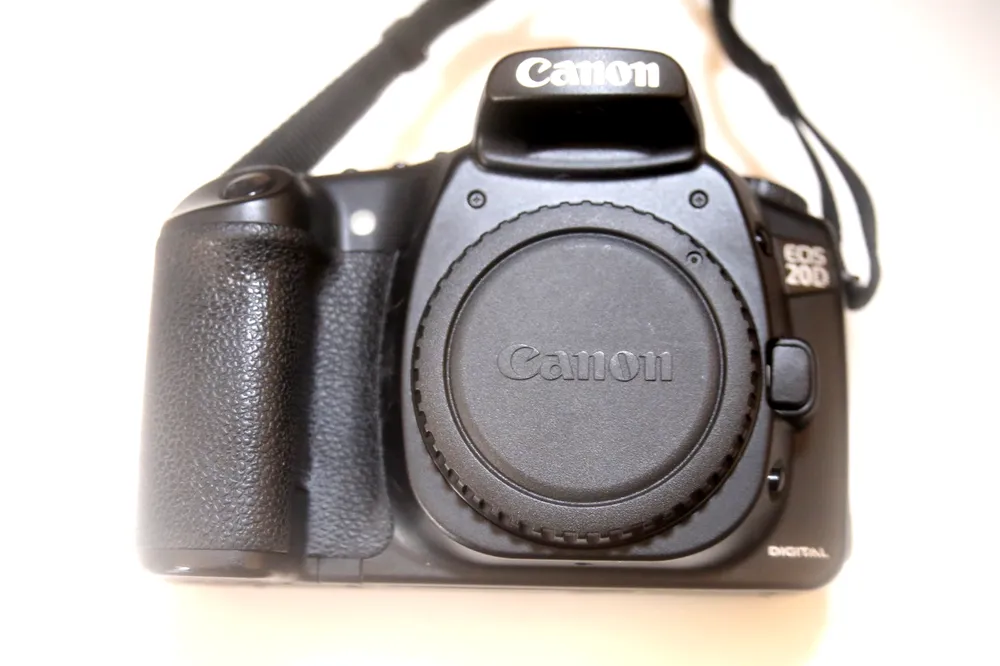

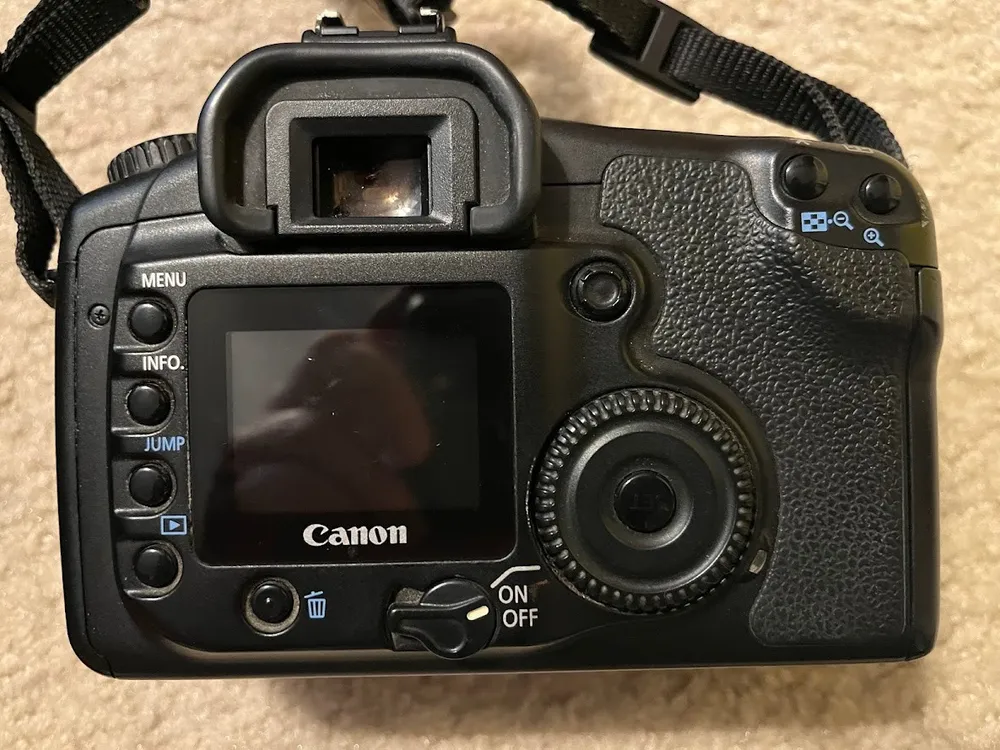

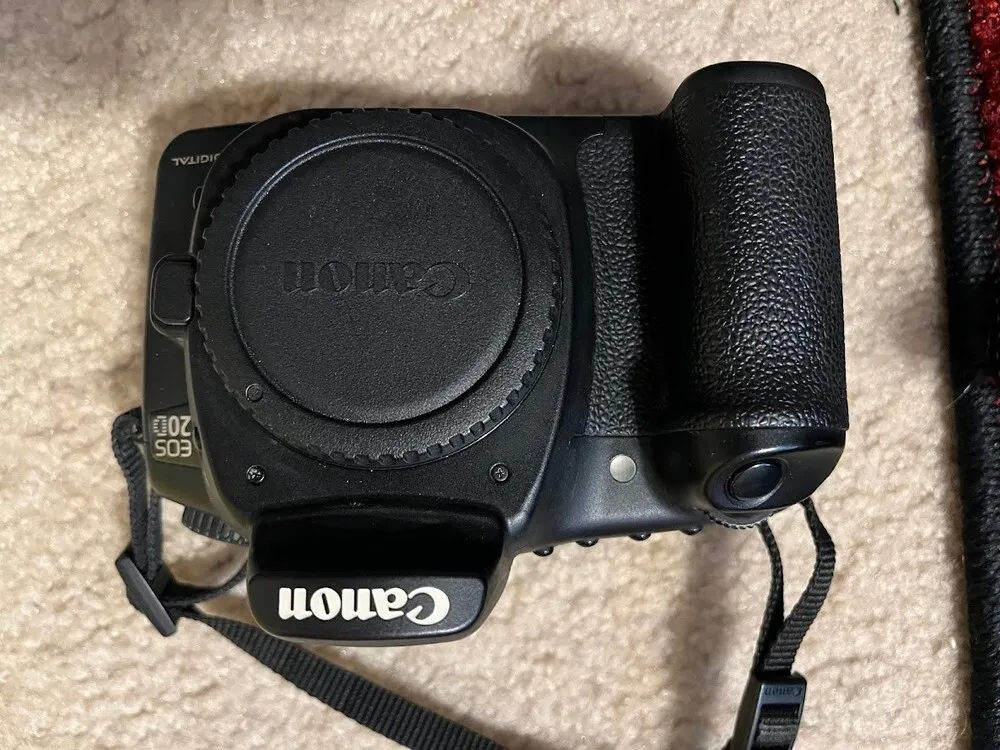

Images
FAQ
What sensor does the Canon EOS 20D use?
The Canon EOS 20D uses an 8.2-megapixel APS-C sized CMOS sensor.
Is the Canon EOS 20D still supported by Canon?
No, the Canon EOS 20D is a discontinued model and no longer supported with official updates.
What is the ISO range of the Canon EOS 20D?
The ISO sensitivity ranges from 100 to 1600, and can be expanded up to 3200.
What autofocus system does the EOS 20D use?
It uses a 9-point autofocus (AF) system for accurate and fast focusing.
Can I use Canon EF lenses with the EOS 20D?
Yes, the EOS 20D is compatible with Canon EF lenses.
What type of memory card does the Canon EOS 20D support?
It supports CompactFlash (CF) Type I and II memory cards.
What is the continuous shooting speed of the Canon EOS 20D?
The camera can shoot continuously at up to 5 frames per second.
