Sigma Sd1 merrill
| Brand | Sigma 2010 |
| Model | 90506766, 15532533 |
| Released Year | 2010 |
| Type | Digital Cameras |
| Series | Sd |
| Color | Black |
| Optical Zoom | N/A |
| Status | Discontinued |
Quick view
Overview

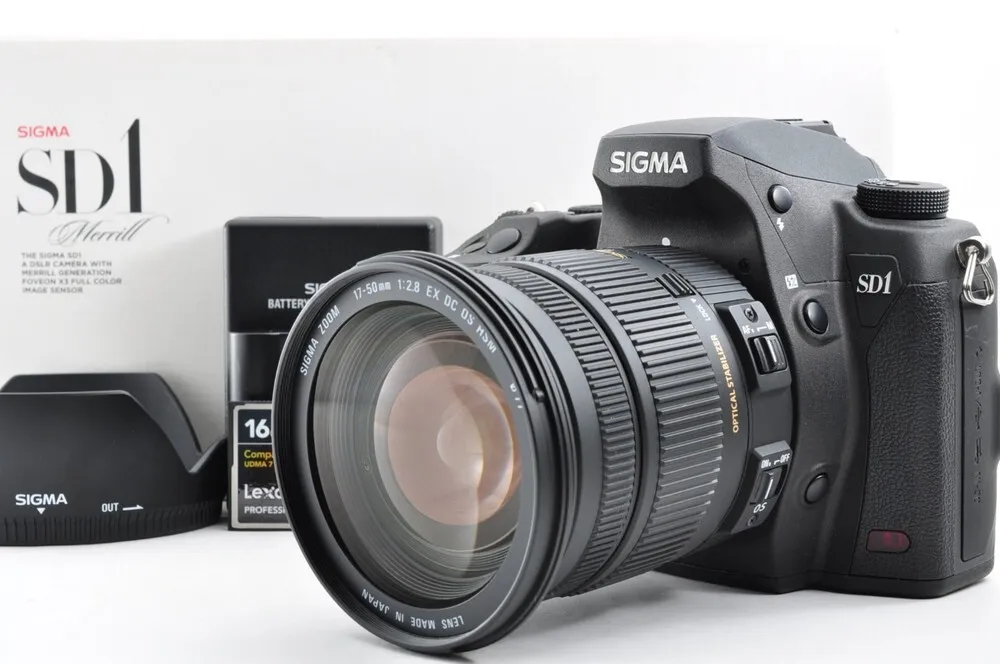

The Sigma SD1 Merrill is a DSLR camera featuring a proprietary Foveon X3 sensor with 46 megapixels resolution, providing exceptionally detailed images by capturing color data at three distinct layers.
This camera utilizes the SA lens mount compatible exclusively with Sigma lenses, ensuring optimized image quality.

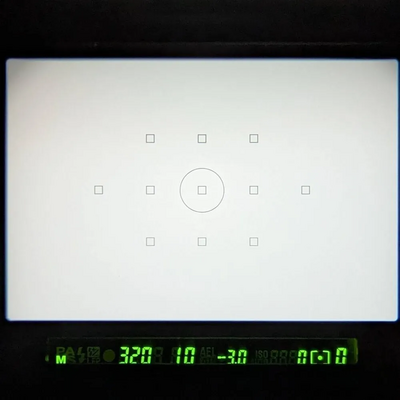

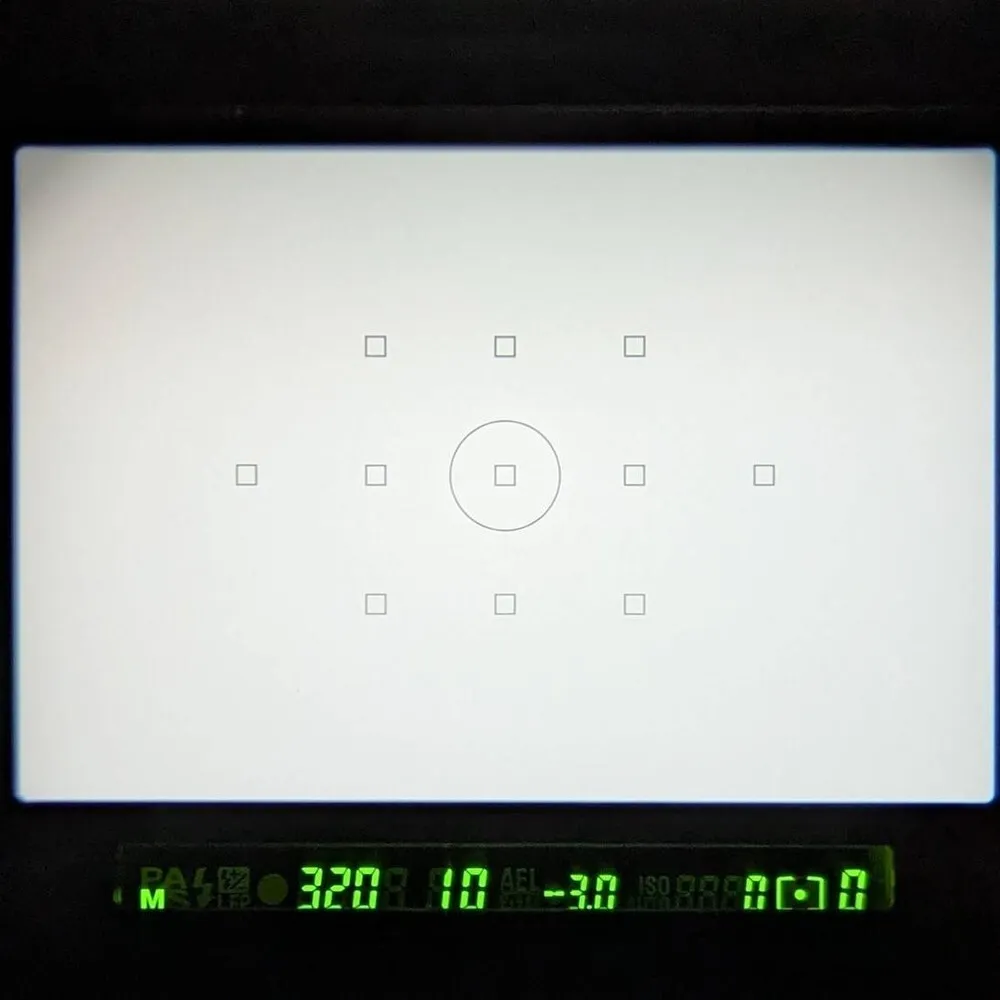

It offers a 11-point autofocus system and an ISO range of 100-6400, optimized for various lighting conditions.
The body is equipped with a 3-inch LCD display and supports RAW format shooting for professional-grade post-processing.
The SD1 Merrill incorporates a True III image processing engine designed to maximize the sensor's potential and improve color accuracy.
Connectivity options include USB 2.0 for image transfer and tethered shooting capabilities.
Specifications
| Digital Zoom | N/A |
| Device Charging Range | 5.0-6.3 |
| MPN | 90506766, 15532533 |
| Item Length | N/A |
| Manufacturer Warranty | 1 Year Warranty for US Buyers / 30 Days for International Buyers |
| Item Height | N/A |
| Features | Auto Focus, Built-in Flash, Face Detection, Tripod Thread, Foveon sensor |
| Item Width | N/A |
| Maximum Aperture | N/A |
| Screen Size | 3.0 in |
| Color | Black |

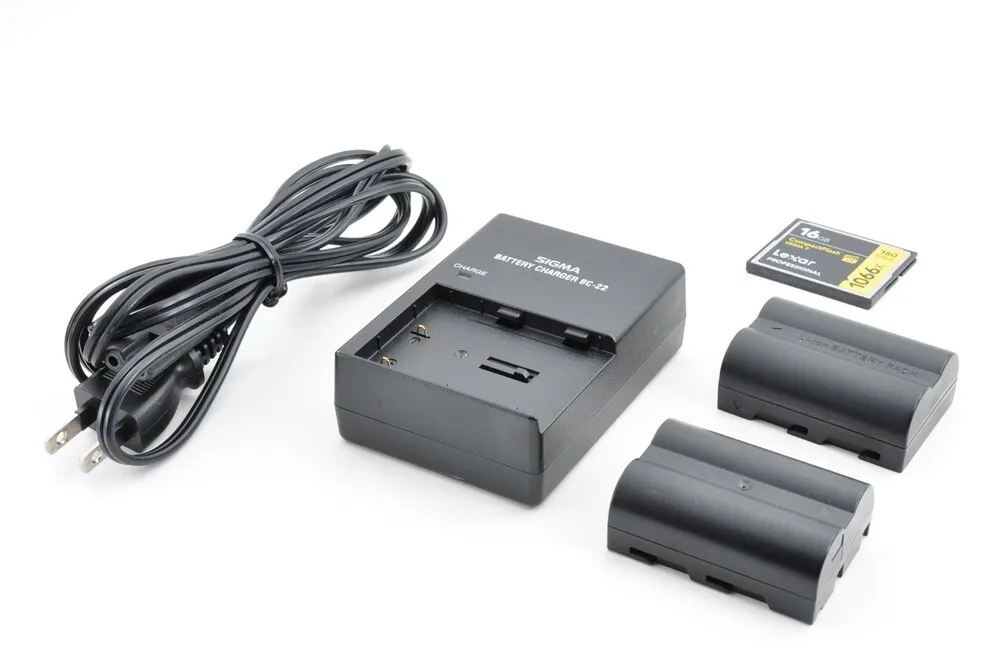

| Battery Type | BP-31 Li-ion battery |
| California Prop 65 Warning | N/A |
| Series | Sigma SD |
| Type | Digital SLR |
| Maximum Resolution | 46.0 MP |
| Model | Sigma SD1 Merrill |
| Connectivity | USB 2.0 |
| Optical Zoom | N/A |
| Charger Included | Yes |
| Country/Region of Manufacture | Japan |
| Item Weight | N/A |
| UPC | N/A |
| Camera Type | Digital Single Lens Reflex (DSLR) |
| Sensor Type | Foveon X3 CMOS |
| Effective Megapixels | 46 megapixels |
| Lens Mount | Sigma SA mount |
| ISO Sensitivity | 100-6400 |
| Autofocus Points | 11 points |
| Rear LCD | 3-inch fixed TFT LCD |
| Image Processor | TRUE III |
| Shutter Speed Range | 30 sec to 1/8000 sec |
| Continuous Shooting Speed | 4 frames per second |
| File Formats | RAW, JPEG |
| Storage Media | SD/SDHC/SDXC memory cards |
| Dimensions | 147 x 113 x 79 mm |
| Weight | 825 g (body only) |
| Video Recording | Not supported |
| Release Date | 2010 |
Images
Key Advantages
The Foveon X3 sensor technology delivers unparalleled color fidelity and sharpness by capturing full color information at every pixel point.
High-resolution 46MP output allows large-format printing and extensive cropping without loss of detail.
Compatibility with Sigma's specialized lenses ensures optimized imaging performance tailored to the sensor's characteristics.
Support for Adobe RGB color space enhances color reproduction for printing professionals.
The camera's solid build quality and ergonomic design facilitate comfortable handling during extended shoots.
True III processing engine improves noise reduction and dynamic range performance compared to previous models.
Limitations
The SA mount restricts lens options to Sigma lenses only, limiting versatility compared to other DSLR systems.
The autofocus system, while functional, is less advanced and slower compared to contemporary competitors' phase-detection systems.
The 3-inch LCD lacks touch functionality and is not articulated, limiting viewing angles during shooting.
Limited video recording capabilities, focusing primarily on still photography.
Relatively slower buffer clearance and continuous shooting speed, which may hinder action photography.
Firmware updates and software support have become scarce, as the product line is increasingly legacy.
FAQ
What type of sensor does the Sigma SD1 Merrill use?
The Sigma SD1 Merrill uses a Foveon X3 sensor that captures full color information at three separate layers, resulting in very high image quality.
Is the SD1 Merrill compatible with lenses from other manufacturers?
No, the camera uses the Sigma SA mount and is compatible only with Sigma lenses designed for this mount.
Can the Sigma SD1 Merrill shoot video?
No, the Sigma SD1 Merrill is primarily designed for still photography and does not support video recording.
What ISO range does the SD1 Merrill support?
The ISO range supported is from 100 to 6400, allowing shooting in a variety of lighting conditions.
Does the SD1 Merrill have an articulated screen?
No, the camera has a fixed 3-inch LCD screen without touch or articulation.
Is this camera still supported by Sigma with firmware updates?
No, the camera has been discontinued and no longer receives official firmware updates.
What is the primary advantage of the Foveon X3 sensor technology?
The Foveon X3 sensor captures full RGB color data at every pixel, delivering superior color accuracy and sharpness compared to traditional Bayer sensors.
