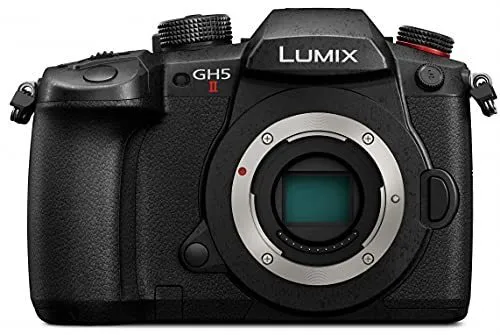

Panasonic Lumix dc-gh5
Brand | Panasonic 2017 |
Model | DCGH5M2 |
Released Year | 2017 |
Type | Digital Cameras |
Series | Lumix |
Color | Black |
Status | Active |
Quick view
Overview
The Panasonic Lumix DC-GH5 is a mirrorless Micro Four Thirds camera that redefines professional video and still photography performance. It features a 20.3-megapixel Digital Live MOS sensor without an optical low-pass filter for enhanced image sharpness. The camera supports 4K video recording at 60fps in 10-bit 4:2:2 internal format and boasts advanced image stabilization with Dual I.S. 2. The robust magnesium alloy body is designed to be weather-sealed for dust and splash resistance, catering to demanding shooting environments. It utilizes the Venus Engine image processor to offer high-speed performance and low noise. The camera also offers extensive connectivity options including Wi-Fi and Bluetooth for seamless sharing and remote control.
Its autofocus system employs contrast-detection with 225 focus points and advanced algorithms for fast and accurate subject tracking. The GH5 supports high-resolution audio capture with an optional XLR microphone adapter, emphasizing its video-centric design. The camera has dual SD card slots supporting UHS-II cards to ensure continuous recording and efficient data handling. It features a fully articulating 3.2-inch LCD touchscreen with 1.6 million dots and a high-resolution 3.68-million-dot OLED electronic viewfinder for versatile viewing. Overall, the DC-GH5 is engineered to meet the needs of photographers and videographers seeking professional-grade features in a compact system.
Specifications
MPN | DCGH5M2 |
GTIN | 4549980499771 |
UPC | 4549980499771 |
Digital Zoom | 4x |
Maximum Aperture | f/1.7 |
Color | Black |
Battery Type | Lithium-Ion |
Connectivity | Wi-Fi, Bluetooth 4.2, USB 3.1 Type-C, HDMI Type A |
Features | 2160p UHD Video Recording, Noise Reduction, AF Lock, 4K Video Recording, Wi-Fi Ready, Wi-Fi, 1080p HD Video Recording, Touch Screen, Auto Focus, Bluetooth, Histogram Display, Face Detection, Dioptric Adjustment, Built-in Wi-Fi, Image Stabilization, Viewfinder, Tripod Thread, Interchangeable Lenses, Body Only, Interval Shooting Mode, Exposure Compensation, Tiltable Screen |
Screen Size | 3 in |
Series | Panasonic LUMIX |
Type | Mirrorless Interchangeable Lens Camera |
Maximum Resolution | 20.3 MP |
Model | Panasonic Lumix DC-GH5 |
Item Height | 10 |
Sensor | 20.3MP Digital Live MOS, Micro Four Thirds |
Image Processor | Venus Engine |
ISO Sensitivity | ISO 200-25600 (expandable to 100-25600) |
Video Recording | 4K UHD 3840x2160 up to 60p, 10-bit 4:2:2 internal recording |
Image Stabilization | Dual I.S. 2 (5-axis sensor-shift + lens stabilization) |
Autofocus System | Contrast-detection with 225 focus points |
Viewfinder | 3.68M-dot OLED EVF, 0.76x magnification |
LCD Monitor | 3.2-inch fully articulating touchscreen, 1.62 million dots |
Storage Media | Dual SD card slots, UHS-II compatible |
Battery | Battery Pack DMW-BLF19, approximately 410 shots per charge |
Dimensions | 138.5 x 98.1 x 87.4 mm |
Weight | Approx. 725 g (body only) |
Build | Magnesium alloy body with dust and splash resistance |
Shutter Speeds | Mechanical shutter: 1/8000 to 60s; Electronic shutter: 1/16000s max |
Continuous Shooting | Up to 12 fps mechanical shutter, 60 fps electronic shutter |
Images
Key Advantages
The Lumix DC-GH5 excels with high-resolution 4K 60p video recording in 10-bit 4:2:2 internal format, delivering cinema-grade footage. Its advanced Dual I.S. 2 system provides superior five-axis image stabilization, minimizing blur in both photos and videos. The camera's robust weather-sealed magnesium alloy body ensures durability in challenging conditions. Fast and reliable autofocus performance with 225 contrast-detection points aids quick subject acquisition and tracking. Dual UHS-II SD card slots enable simultaneous recording and overflow recording, enhancing workflow reliability. Its fully articulating touchscreen and high-resolution EVF offer flexible composition and clear preview options for various shooting angles.
Limitations
The Micro Four Thirds sensor size, while compact, offers lower absolute low-light performance compared to full-frame sensors. Contrast-detection autofocus, though improved, may occasionally lag behind phase-detection systems in speed in certain conditions. The relatively complex menu system can present a learning curve for new users. Battery life, rated at approximately 410 shots per charge, may necessitate spare batteries for extended sessions. The camera is relatively heavy and bulky compared to other mirrorless models retaining smaller bodies. While 4K recording is robust, recording times are limited by overheating during continuous extended capture sessions.
FAQ
What is the sensor size of the Panasonic Lumix DC-GH5?
The DC-GH5 features a Micro Four Thirds sensor measuring approximately 17.3 x 13 mm.
Can the GH5 record video internally in 10-bit 4:2:2 format?
Yes, it can record 4K 60p video internally in 10-bit 4:2:2, providing high video quality without external recorders.
Does the Lumix GH5 have image stabilization?
Yes, it includes Dual I.S. 2, a 5-axis hybrid image stabilization combining sensor-shift and lens stabilization.
Is the GH5 weather sealed?
Yes, the body is constructed with magnesium alloy and sealed against dust and moisture for durability.
What kind of autofocus system does the GH5 use?
It uses a contrast-detection autofocus system with 225 focus points optimized for speed and accuracy.
Does the Lumix GH5 have dual card slots?
Yes, the camera has dual SD card slots supporting UHS-II cards for simultaneous or relay recording.
What is the battery life of the GH5?
The battery can last approximately 410 shots per charge under standard CIPA testing conditions.
