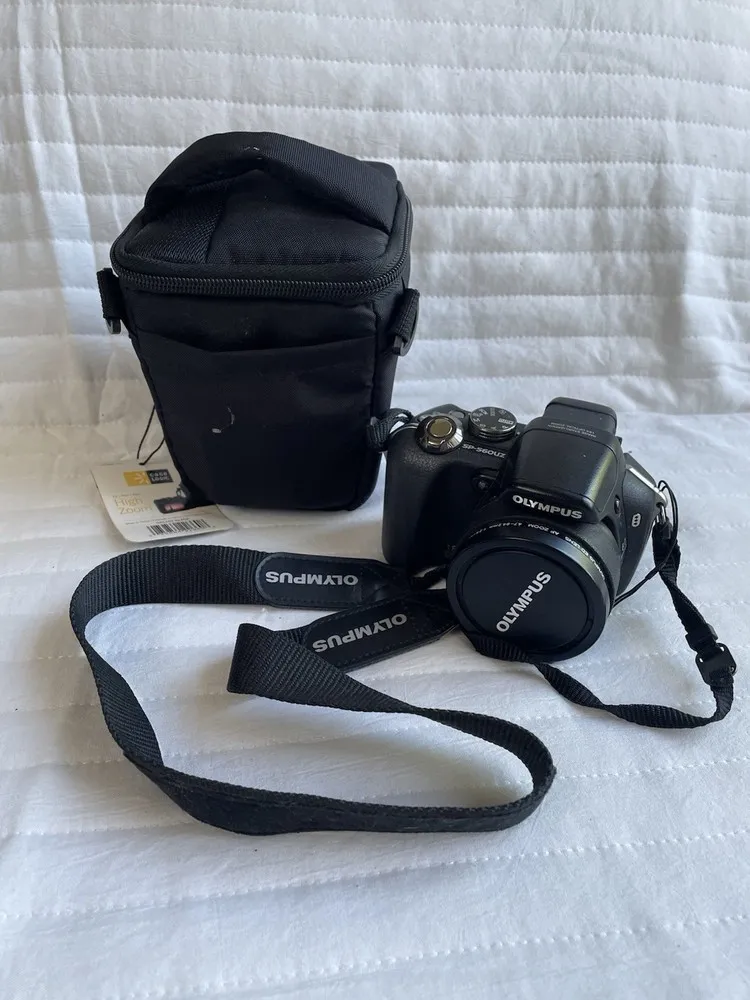

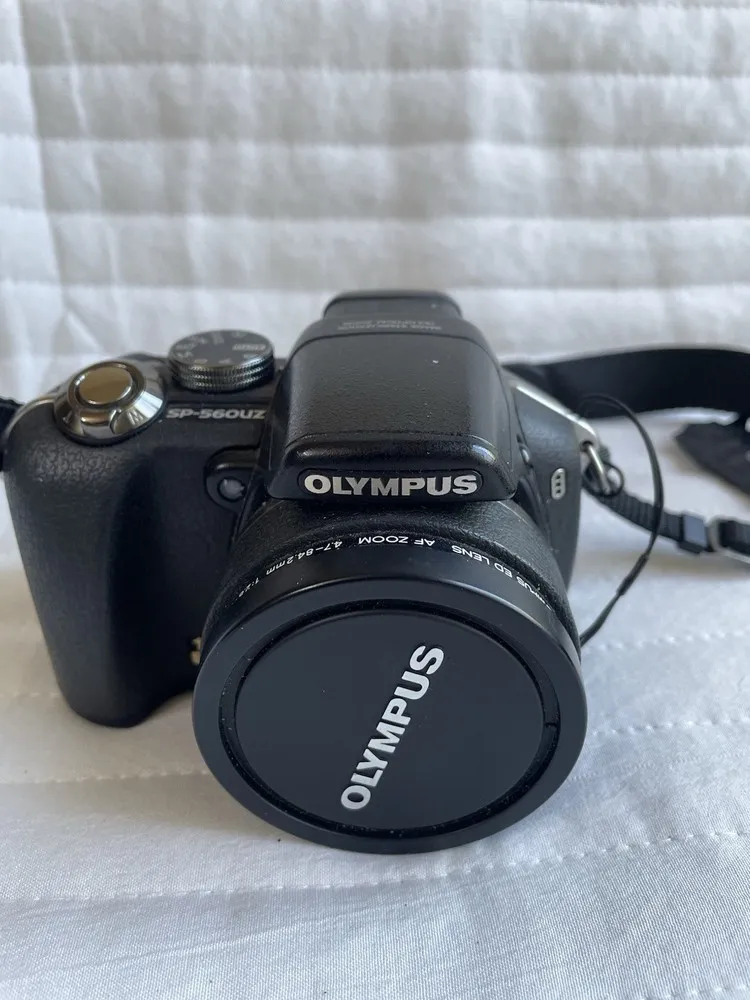

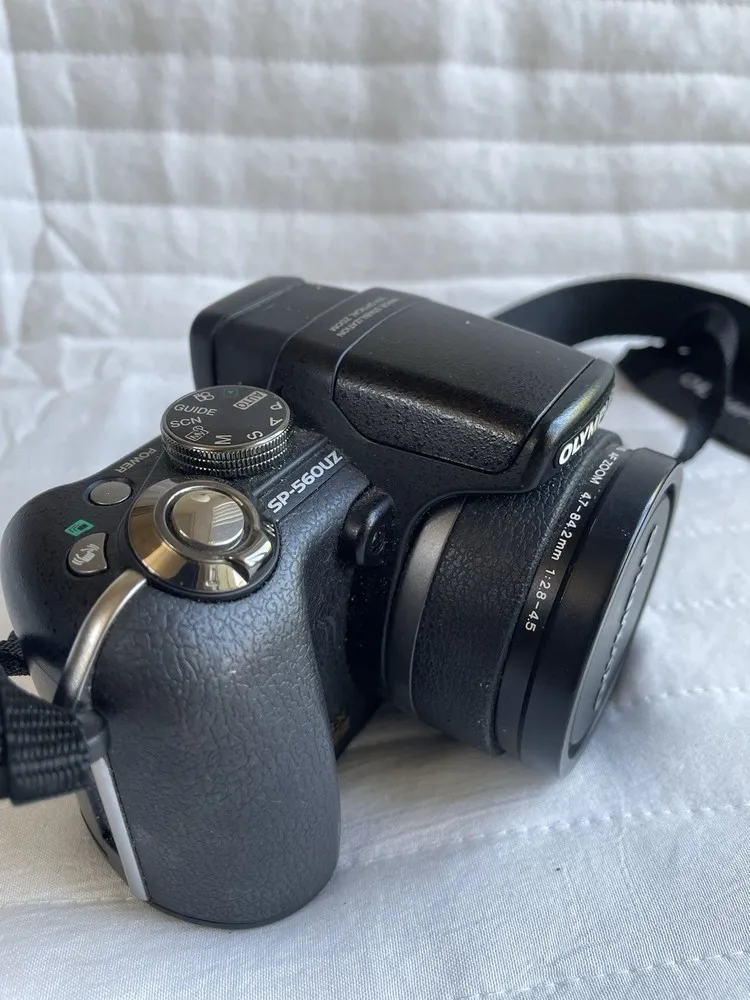

Olympus SP-560UZ image

Olympus SP-560UZ

Quick information
Brand Olympus 2007
Model SP-560UZ
Released Year 2007
Type Digital Cameras
Series SP series
Color Black
Optical Zoom 15x (28-420mm equivalent)
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Olympus SP-560UZ is a digital camera featuring a 10-megapixel CCD sensor optimized for detailed image capture. Equipped with a 15x optical zoom lens, it provides versatile focal length coverage from wide-angle to telephoto. The camera supports RAW shooting for advanced post-processing and includes various scene modes to suit different photographic situations. It features a 2.5-inch LCD for image composition and review, along with manual controls for aperture and shutter speed. The camera is powered by AA batteries, making it convenient for travel. Connectivity options include USB for image transfer.

Specifications

Type Point & Shoot
Maximum Resolution 8.0MP
Color Black
Model SP-560 UZ
Series Olympus SP Series
Digital Zoom 6x
Optical Zoom 15x (28-420mm equivalent)
MPN SP-560 UZ, 226085
Features USB 2.0 Compatibility, Automatic Face Tracking, Histogram Display, Red Eye Fix, Not Interchangeable Lenses, Direct Print, Audio Recording, With Tripod Mount, Digital Noise Reduction, Auto Power Save, USB 2.0, Image Stabilization
Battery Type 4x AA batteries
Item Weight 12.9 Oz.
UPC 4545350012625
Depth 3.07in
Width 4.57in
Height 3.09in
Screen Details LCD Display-2.5"-Color
Exposure Compensation ±2 Ev Range, in 1/3 Ev Steps
Light Sensitivity Iso 800, Iso Auto, Iso 400, Iso 1600, Iso 200, Iso 100, Iso 3200, Iso 50
Sensor Type CCD
Max Shutter Speed 1/2000 Sec
Shooting Modes Frame Movie Mode
Max Video Resolution 320 X 240160x120640x480 (VGA)
Macro Focus Range 1cm
Focal Length Equivalent to 35mm Camera 27-486mm
Face Detection Yes
Camera Flash Features Fill-In Flash, Slow Sync, Flash +/- Compensation, Red-Eye Reduction Flash, Auto Flash
White Balance Auto, Tungsten (Preset), Overcast (Preset), Fluorescent (Preset), Daylight / Sunny (Preset)
Focus Adjustment Autofocus & Manual Focus, Manual, Automatic
Battery Form Factor Standard Form Factor
Expansion Slot 1X xD-Picture Card
Operating System Supported Ms Windows XP, Microsoft Windows 2000, Microsoft Windows XP, Ms Windows 2000, Microsoft Windows Vista, Ms Windows Vista, Microsoft Windows XP Home Edition, Apple Mac OS X 10.3 or Later
Sensor Size 1/2.3in
Display Size 2.5in
Still Image Format Exif 2.2, Dpof, Raw Image, Raw, JPEG
Exposure Modes Program, Aperture-Priority, Bulb, Shutter-Priority, Manual
Integrated Memory Size 47MB
Display Rotation Built-In
Digital Video Format Avi, Motion JPEG
Screen Size 2.0".5"
Light Sensitivity Max 6400
Max Operating Temperature 40°C
Red Eye Reduction Yes
Min Shutter Speed 15 Sec
Floppy Drive Storage None
Sensor Resolution 8.0MP
Exposure Metering Spot, Center-Weighted
Additional Features USB 2.0 Compatibility, Automatic Face Tracking, Histogram Display, Red Eye Fix, Not Interchangeable Lenses, Direct Print, Audio Recording, With Tripod Mount, Digital Noise Reduction, Auto Power Save, USB 2.0, Image Stabilization
Flash Type Pop-Up Flash
Min Operating Temperature 0°C
Effective Flash Range 0.3m-6.4m
Exterior Color Black
Microphone Type Microphone-Built-In
Connector Types 1X Composite Video/Audio Output, 1X DC Power Input, 1X USB
Shooting Programs Landscape-Portrait, Cuisine, Portrait Mode, Landscape, Snow, Underwater Macro, Available Light Portrait, Auction, Sunset, Beach, Candle, Candlelight Portrait, Sports Mode, Documents, Night Portrait, Underwater Wide 2, Night Scene, Shoot & Select 1, Underwater Wide 1, Shoot & Select 2, Indoor, Fireworks, Panorama Assist
Flash Modes Red-Eye Reduction, Slow Synchro, Fill-In Mode, Off Mode, Auto Mode
Camera Type Point & Shoot
Auto Focus Type TTL Contrast Detection
Viewfinder Type Digital, Electronic
Supported Flash Memory xD-Picture Card, xD-Picture Card Type H, xD-Picture Card Type M, Built-In
Continuous Shooting Speed 40fps
Sensor 10 MP CCD
ISO Range 80-1600
LCD Screen 2.5 inch TFT
Image Format RAW, JPEG
Video Recording Standard definition

Key Advantages

The SP-560UZ offers a powerful 15x optical zoom lens, enabling users to capture distant subjects clearly. Its 10-megapixel resolution delivers detailed and high-quality photos. The availability of RAW format shooting allows for extensive image editing flexibility. Manual controls provide creative freedom for experienced photographers. The camera's compact design balances portability with advanced features. It uses common AA batteries, making it easy to find replacements when traveling.

Limitations

Despite its advantages, the SP-560UZ's maximum ISO sensitivity is limited compared to modern cameras, affecting low-light performance. The 2.5-inch LCD screen is relatively small and lacks touchscreen functionality. Video recording capabilities are basic and do not support high-definition formats. The camera’s autofocus speed can be slow in certain lighting conditions. Its overall design is bulkier than typical compact cameras, making it less pocketable. Additionally, battery life may be shorter with AA batteries compared to rechargeable lithium-ion alternatives.
