Olympus Pen e-pl5 image

Olympus Pen e-pl5

Quick information
Brand Olympus 2012
Model 505939 90528
Released Year 2012
Type Digital Cameras
Series Pen
Color Silver
Optical Zoom 3x
Status Discontinued
Quick view

Overview

The Olympus Pen E-PL5 is a mirrorless digital camera featuring a Four Thirds sensor sensor delivering a resolution of 16 megapixels for high-quality image capture. It incorporates a Micro Four Thirds lens mount, allowing compatibility with a wide range of lenses for versatile photography. The camera is equipped with a 3-inch tiltable AMOLED touchscreen, enabling intuitive control and creative shooting angles. Its TruePic VI image processor ensures fast performance and enhanced image processing capabilities. Video recording supports Full HD 1080p at 30 frames per second, catering to multimedia applications. The design emphasizes compactness and portability while maintaining robust manual controls for users.

Connectivity options include built-in Wi-Fi for wireless image transfer and remote control functionality. The camera’s autofocus system features 35 contrast-detection points, providing accuracy and speed in focusing. ISO sensitivity ranges from 200 to 12,800, extendable to 25,600, to accommodate various lighting conditions. The camera supports RAW and JPEG file formats for flexible post-processing workflows. Additionally, built-in art filters and in-camera editing enhance creativity without requiring external software.

Specifications

Maximum Aperture f/3.5-5.6
Digital Zoom 3x
Color Silver
MPN 505939 90528
Battery Type Lithium-Ion
Series Olympus PEN
Type Digital SLR
Maximum Resolution 16.5 MP
Model Olympus PEN E-PL5
Optical Zoom 3x
Features Auto Focus, Built-in Flash
Country/Region of Manufacture Japan
UPC N/A
Sensor type Live MOS
Sensor size 17.3 x 13 mm (Four Thirds type)
Effective pixels 16.1 megapixels

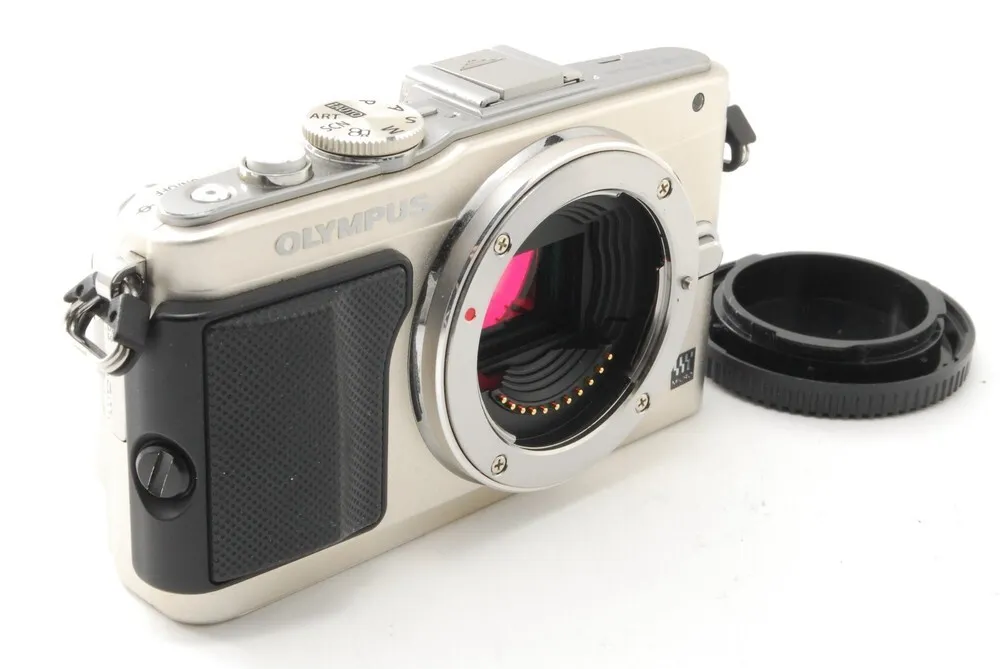

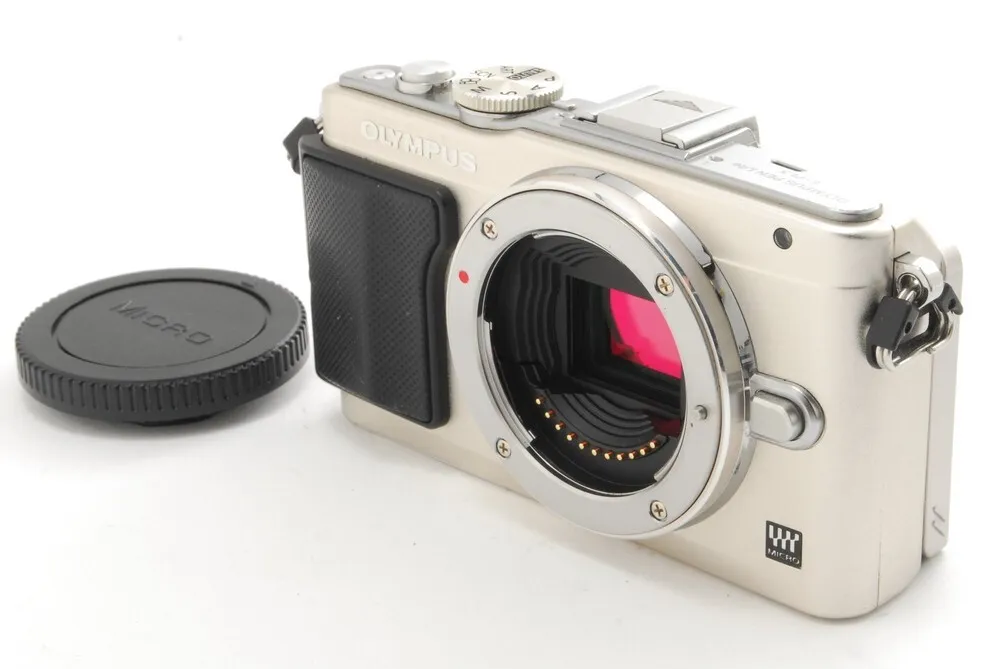

Lens mount Micro Four Thirds
ISO sensitivity 200-12800 (expandable to 25600)
Image processor TruePic VI
LCD screen 3.0-inch tiltable AMOLED touchscreen
Viewfinder None (optional external EVF available)
Autofocus points 35 contrast-detection points
Shutter speed range 1/4000 to 60 seconds
Continuous shooting Up to 8.0 fps
Video recording 1080p Full HD at 30 fps
Storage media SD/SDHC/SDXC memory cards
Connectivity Wi-Fi 802.11b/g/n, USB 2.0, HDMI output
Battery type Li-ion rechargeable battery BLS-5
Dimensions 117 x 68 x 39 mm
Weight Approximately 380 grams (body only)
Art filters Multiple in-camera creative filters

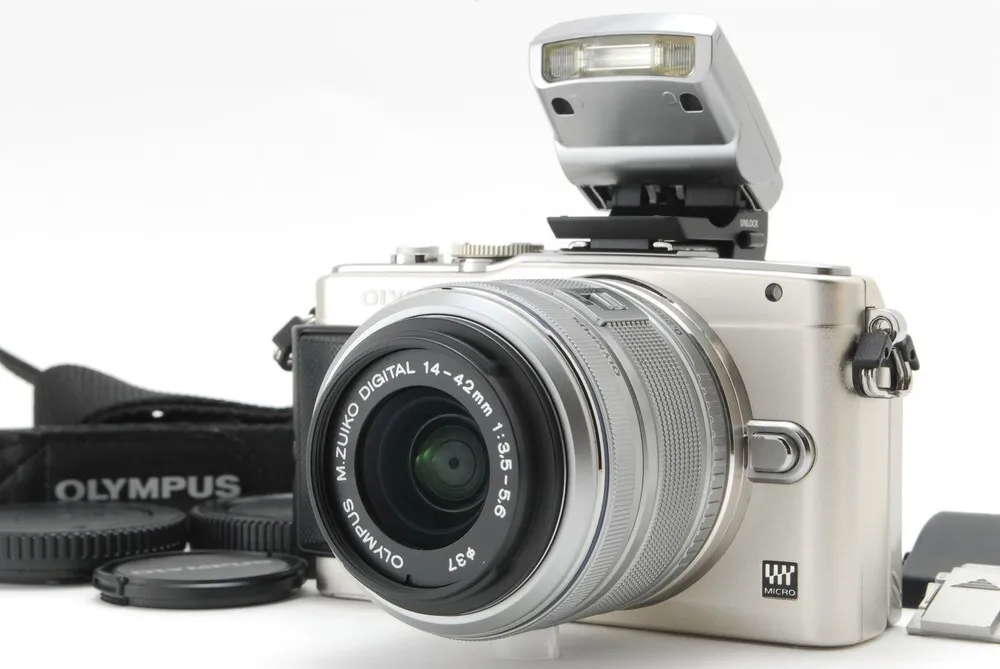

Flash Built-in pop-up flash with external flash compatibility

Key Advantages

The Olympus Pen E-PL5’s compact and lightweight design makes it highly portable and travel-friendly. The tilting AMOLED touchscreen facilitates easy framing and shooting from unconventional angles. Its high-resolution 16MP sensor delivers sharp images with excellent detail. Built-in Wi-Fi enables convenient wireless sharing and remote shooting via smartphone apps. The camera offers a wide ISO range to perform well in diverse lighting environments. Comprehensive manual controls and RAW shooting capability appeal to advanced photographers seeking creative flexibility.

Limitations

The Olympus Pen E-PL5 lacks an integrated viewfinder, which may challenge framing in bright sunlight. Battery life is relatively limited compared to DSLR counterparts, requiring frequent charging or spares for extended shoots. The autofocus system, while competent, can be slower in low-light situations compared to newer models. Video recording, although Full HD, does not support higher frame rates or 4K resolution. The camera body is less weather-sealed, limiting rugged outdoor use. Some users may find the ergonomic grip small for larger hands during prolonged use.
