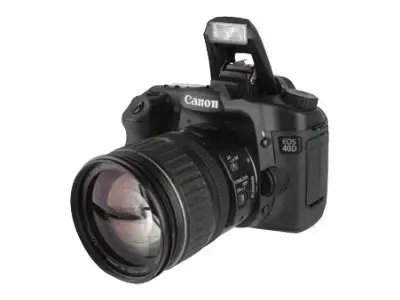

Canon 40D
Brand | Canon 2007 |
Model | 1901B069AA, 1901B027 |
Released Year | 2007 |
Type | Digital Cameras |
Series | Eos |
Optical Zoom | 5x |
Status | Discontinued |
Quick view
Overview
The Canon EOS 40D is a digital single-lens reflex camera introduced in 2007, offering a significant upgrade in speed and resolution for advanced amateur photographers. It features a 10.1-megapixel APS-C CMOS sensor, providing high-resolution images with improved noise control and sharpness. The camera is equipped with Canon's DIGIC III image processor ensuring rapid image processing and superior color reproduction. It supports a fast continuous shooting rate of up to 6.5 frames per second, ideal for action and sports photography. The 3-inch LCD screen offers live view and an intuitive interface for image review and menu navigation. With robust build quality and extensive customizability, the EOS 40D is well-suited for demanding photographic applications.
The camera supports interchangeable EF and EF-S lenses, giving users flexibility across various shooting needs, from wide-angle to telephoto. It includes a 9-point autofocus system with all cross-type sensors for precise focus tracking. The ISO sensitivity ranges from 100 to 1600, expandable up to 3200, to handle various lighting conditions. Storage is supported via CompactFlash Type I and II cards, enabling quick write speeds to match its high burst rate. Connectivity includes USB 2.0 for fast transfer to computers. Advanced exposure modes and metering options provide creative control, complemented by manual override capabilities. Overall, the EOS 40D blends speed, resolution, and reliability in a professional-grade body.
Specifications
MPN | 1901B069AA, 1901B027 |
EAN | 8714574508818 |
Model | 40D |
Battery Type | Lithium-Ion |
Colour | Black |
Type | Digital SLR |
Connectivity | USB 2.0 |
Features | USB 2.0 Compatibility, Ae Lock, Depth-Of-Field Preview Button, LCD Live View Mode, Rgb Primary Colour Filter, Digital Image Rotation, Display Drightness Control, Wi-Fi Ready |
Series | Canon EOS |
Optical Zoom | 5x |
Depth | 7.35cm |
Width | 14.55cm |
Item Weight | 740GR |
Height | 10.78cm |
Screen Details | LCD Display-Tft Active Matrix-3"-Colour |
Exposure Compensation | ±3 Ev Range, in 1/2 or 1/3 Ev Steps |
Light Sensitivity | Iso 100-1600, Iso 3200 |
Sensor Type | Cmos |
Max Shutter Speed | 1/8000 Sec |
Lens Type | Zoom Lens |
Exposure Range | Ev -0.5-18 (Iso 100) |
Focal Length Equivalent to 35mm Camera | 28-135mm |
Camera Flash Features | Af Illuminator, Flash +/- Compensation |
Battery Form Factor | Manufacturer Specific |
Focus Adjustment | Manual, Automatic |
Expansion Slot | 1 X Compactflash Card-Type I/Ii |
Sensor Size | 14.8x22.2mm |
Display Size | 3in |
Still Image Format | Raw, Jpeg, Raw + Jpeg |
Exposure Modes | Program AE, Shutter priority, Aperture priority, Manual |
Display Rotation | Built-In |
Screen Size | 3in |
Lens System Features | Internal Focusing System, Aspherical Lens, Ud Glass, Full-Time Manual Focusing |
Battery DESCRIPTION | 1 X Li-Ion Rechargeable Battery-1390mAh (Included) |
Light Sensitivity Max | 3200 |
Max Operating Temperature | 40°C |
Maximum Resolution | 10.1MP |
Optical Viewfinder Type | Fixed Eye-Level Pentaprism |
Min Shutter Speed | 30 Sec |
Focal Length Range | 17mm-85mm |
Display Type | LCD |
Lens Construction | 12 Group(s) / 17 Element(s) |
Sensor Resolution | 10.1MP |
Lens Filter Size | 67mm |
Flash Type | Pop-Up Flash |
Min Operating Temperature | 0°C |
Viewfinder-Field Coverage | 95% |
Connector Types | 1 X Flash Terminal, 1 X Remote Control, 1 X Composite Video Output, 1 X USB |
Flash Modes | E-Ttl, Auto Mode |
Dioptric Correction Range | -3 to +1 |
Viewfinder Magnification | 0.95x |
Camera Type | Digital SLR |
Auto Focus Type | Ttl Phase Detection |
Viewfinder Type | Optical |
Lens for Sd | Ef-S Is Usm 17-85mm |
Lens Aperture | F/4.0-5.6 |
Supported Flash Memory | Compactflash I, Compactflash Ii |
Continuous Shooting Speed | 6.5 frames per second |
Sensor | 10.1 Megapixel APS-C CMOS |
Image Processor | DIGIC III |
Lens Mount | Canon EF and EF-S |
Autofocus Points | 9-point all cross-type |
ISO Sensitivity | 100-1600 standard, expandable to 3200 |
Viewfinder | Pentaprism; approximately 95% coverage |
LCD Screen | 3.0-inch TFT color with 230,000 pixels |
Storage Media | CompactFlash (Type I and II) |
Shutter Speed Range | 30 sec to 1/8000 sec, Bulb |
White Balance | Auto, presets, custom |
Metering Modes | Evaluative, Partial, Spot, Center-weighted |
Flash | Built-in pop-up flash; external flash supported |
Battery | Li-ion rechargeable battery pack |
Dimensions | 146 x 107 x 74 mm |
Weight | Approx. 740 grams (body only) |
Release Date | August 2007 |
Images
Key Advantages
The Canon EOS 40D offers high-speed continuous shooting at 6.5 fps, benefiting fast-paced photography workflows. Its 10.1 MP APS-C sensor delivers detailed, high-quality images with good dynamic range. DIGIC III processing ensures quick operation and enhanced color fidelity. The camera’s durable magnesium alloy body is weather-resistant, increasing its reliability in challenging environments. A large 3-inch LCD with live view mode provides convenient framing options and image review. Finally, the advanced autofocus system enhances subject tracking and focus accuracy, enabling better results in diverse shooting scenarios.
Limitations
The 10.1 MP resolution is modest compared to more recent models, limiting the camera’s ability to crop heavily or produce very large prints. The ISO sensitivity maxes out at 3200, which may not be sufficient for very low light shooting without noise. The camera does not have video recording capabilities, which is standard in modern DSLRs. Its bulk and weight make it less portable for casual users compared to mirrorless cameras available today. The live view autofocus is slower and less sophisticated than in newer models. Lack of built-in Wi-Fi or GPS limits connectivity options for instant sharing or geotagging. Lastly, the LCD screen lacks touchscreen functionality that is common in modern cameras.
FAQ
What sensor type does the Canon EOS 40D use?
The Canon EOS 40D features a 10.1-megapixel APS-C CMOS sensor.
Does the EOS 40D support video recording?
No, the Canon EOS 40D does not have video recording capabilities.
What is the continuous shooting speed of the EOS 40D?
It can shoot continuously at up to 6.5 frames per second.
What lens mounts are compatible with the EOS 40D?
The camera is compatible with Canon EF and EF-S lenses.
Does the Canon EOS 40D have built-in Wi-Fi?
No, the EOS 40D does not include built-in Wi-Fi connectivity.
What type of memory cards does the EOS 40D use?
It uses CompactFlash Type I and II memory cards for storage.
Is the EOS 40D weather-sealed?
Yes, the EOS 40D has a weather-resistant magnesium alloy body.
