Panasonic DC-S1H BODY
| Brand | Panasonic 2019 |
| Model | DC-S1H BODY |
| Released Year | 2019 |
| Type | Mirrorless Cameras |
| Series | LUMIX S |
| Color | Black |
| Compatible Mountings | M39 |
| Autofocus | Yes |
| Photo Sensor Resolution | 24.2 MP |
| Video Resolution | 4K UHD 2160p |
| File Format | JPEG, Raw |
| Status | Active |
Overview
The Panasonic LUMIX DC-S1H BODY is a professional mirrorless camera designed primarily for advanced video recording with a full-frame sensor. It features a 24.2-megapixel CMOS sensor optimized for high-resolution imaging and cinematic video capture. The camera supports 6K video recording at 24p and 4K at up to 60p with 10-bit 4:2:2 internal recording, providing exceptional color depth and dynamic range for filmmakers.
Equipped with a robust Venus Engine image processor, it enables fast processing speeds and accurate color reproduction. The DC-S1H BODY includes a high-resolution OLED Live View Finder with a 5.76-million-dot resolution, enhancing the shooting experience and framing accuracy. It also supports V-Log/V-Gamut for advanced color grading workflows in professional post-production.
Additionally, the camera incorporates superior heat dissipation mechanisms, allowing for extended video recording times without overheating. Connectivity options include full-size HDMI, USB-C, and headphone/microphone jacks, making it compatible with a wide range of professional accessories. Overall, the Panasonic LUMIX DC-S1H BODY is a versatile and technically advanced mirrorless camera tailored for serious videographers and content creators.
Specifications
| Built-In Media | Camera Body Only |
| Are Batteries Included | Yes |
| Remote Included | No |
| Global Trade Identification Number | 00885170364646 |
| UPC | 885170364646 |

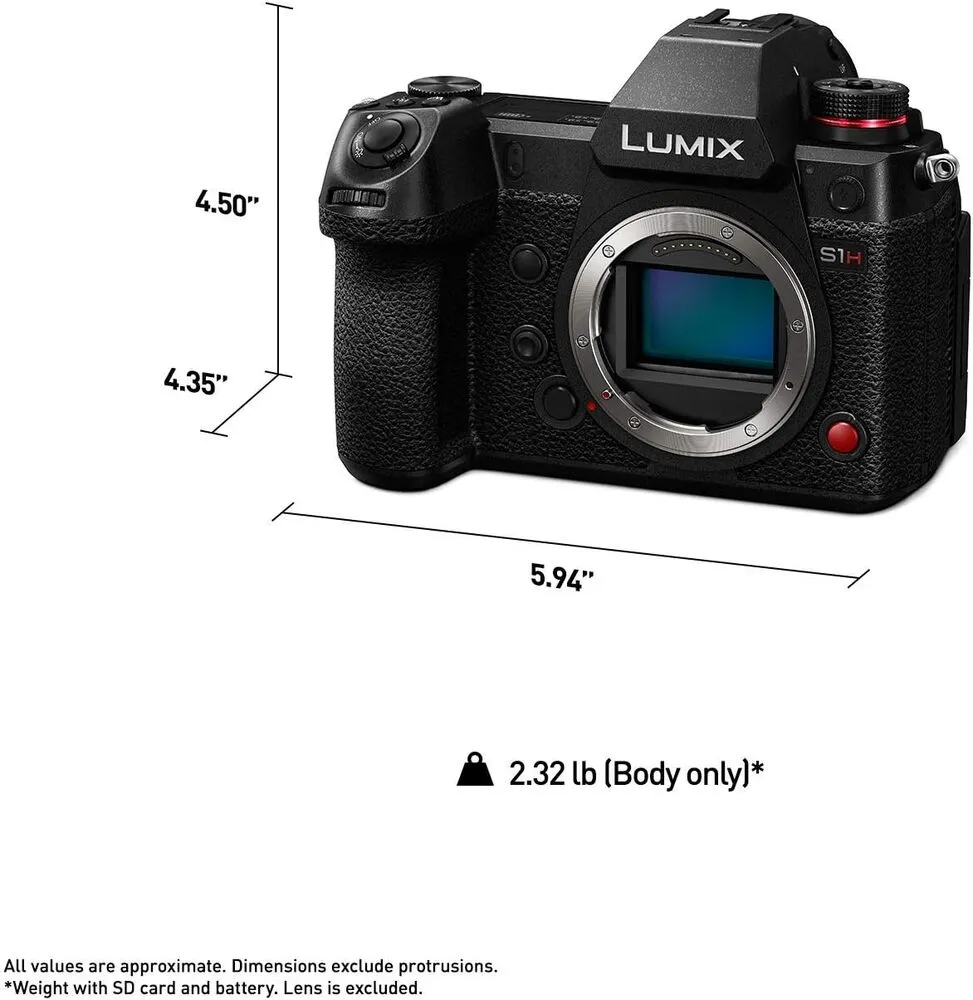

| Item Height | 9.1 inches |
| Manufacturer | Panasonic |
| Unit Count | 1.0 Count |
| Warranty Description | 1 year manufacturer |
| Connectivity Technology | USB |
| Wireless Technology | Wi-Fi |
| Video Output | HDMI |
| Total USB 2.0 Ports | 1 |
| Total USB Ports | 1 |
| Total Video Out Ports | 1 |
| Shooting Modes | Movie, Manual |
| Digital-Still | Yes |
| Movie Mode | Yes |
| Image Capture Type | Stills & Video |
| Night vision | No |
| Auto Focus Technology | Hybrid |
| Focus Features | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) |
| Autofocus Points | 225 |
| Focus Type | manual-and-auto |
| Focus Mode | Continuous-Servo AF (AF-C) |
| Autofocus | Yes |
| Aspect Ratio | Unknown |
| File Format | JPEG, Raw |
| Effective Still Resolution | 24.2 MP |
| JPEG Quality Level | Basic, Fine, Normal |
| Supported Image Format | JPEG, RAW |
| Maximum Image Size | 24.2 MP |
| Total Still Resolution | 24.2 MP |
| Lens Type | Telephoto |
| Zoom | Optical Zoom |
| Minimum Focal Length | 15 Centimeters |
| Real Angle Of View | 2E+1 Millimeters |
| Focal Length Description | 20 to 60mm |
| Number of Diaphragm Blades | 9 |
| Photo Filter Thread Size | 67 Millimeters |
| Metering Methods | Center-Weighted Average, Highlight Weighted, Multiple, Spot |
| Exposure Control | Manual |
| White Balance Settings | Auto |
| Self Timer | 2, 1E+1 |
| Screen Size | 3.2 Inches |
| Display Type | LCD |
| Dots Per Screen | 24000000 |
| Touch Screen Type | Capacitive |
| Display Resolution Maximum | 6000 x 4000 |
| Has Color Screen | Yes |
| Flash Memory Type | Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Memory Slots Available | 2 |
| Write Speed | 100-200 MB/s |
| Flash Memory Speed Class | UHS-II |
| Flash Memory UHS Speed Class | 3 |
| Flash Memory Video Speed Class | V60 or V90 |
| Flash Memory Bus Interface Type | UHS-II |
| Compatible Mountings | M39 |
| Sensor Type | CMOS |
| Image stabilization | Sensor-shift |
| Maximum Aperture | 1.8 Millimeters |
| Photo Sensor Resolution | 24.2 MP |
| Photo Sensor Size | Full Frame (35mm) |
| Maximum Shutter Speed | 1/16000 seconds |
| Minimum Shutter Speed | 1/16000 seconds |
| Form Factor | Mirrorless |
| Special Feature | Venus Engine; 5-Axis Sensor-Shift Image Stabilization; Contrast-Detect 225-Area DFD AF System |
| Color | Black |
| Video Resolution | 4K UHD 2160p |
| Viewfinder | Electronic |
| Flash Modes | Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction |
| Camera Flash | Hotshoe |
| Skill Level | Professional |
| Specific Uses For Product | High-end cinematic and video production |
| Compatible Devices | Leica L mount devices |
| Continuous Shooting | 9 fps |
| Aperture modes | A, S, A, M |
| Viewfinder Magnification | 0.78x |
| Audio Input | Microphone |
| Flash Sync Speed | 1/320 Second |
| Video Capture Format | MP4 |
| Expanded ISO Maximum | 25600 |
| Battery Weight | 1 Grams |
| Audio Output Type | Headphones |
| Battery Cell Type | Lithium Ion |
| Battery Type | 1 x DMW-BLJ31 Rechargeable Lithium-Ion, 7.4 VDC, 3050 mAh (Approx. 400 Shots) |
| Processor Description | venus engine |
Images
FAQ
What sensor does the Panasonic DC-S1H use?
The DC-S1H uses a 24.2-megapixel full-frame CMOS sensor optimized for both still photography and cinematic video recording.
Does the DC-S1H support 6K video recording?
Yes, the LUMIX DC-S1H supports 6K video recording at 24 frames per second for professional-quality footage.
Is the Panasonic DC-S1H mirrorless camera suitable for professional filmmakers?
Absolutely, it is designed specifically with advanced filmmakers in mind, featuring V-Log/V-Gamut profiles, 10-bit internal recording, and robust heat management.
What type of viewfinder does the DC-S1H have?
It includes a high-resolution 5.76-million-dot OLED Live View Finder that provides a clear and detailed composition experience.
What video codecs are supported by the DC-S1H?
It supports various professional codecs including MOV and MP4 formats with high-bit-depth 10-bit 4:2:2 recording internally.
Does this camera have any heat dissipation features for long video shoots?
Yes, the DC-S1H incorporates advanced heat dissipation technology to allow extended continuous recording without overheating.
Is the Panasonic DC-S1H still in production?
As of now, the DC-S1H is not officially discontinued but may be succeeded by newer models in the LUMIX S series.
