OM SYSTEM EVOLT E-500
| Brand | OM SYSTEM 2005 |
| Model | 262064 |
| Released Year | 2005 |
| Type | DSLR Cameras |
| Series | EVOLT |
| Color | Black |
| Compatible Mountings | Micro Four Thirds |
| Autofocus | Yes |
| Photo Sensor Resolution | 8 MP |
| Video Resolution | 480p |
| Optical Zoom | 3.2 x |
| File Format | TIFF, RAW, JPEG |
| Status | Discontinued |
Overview
The OM SYSTEM EVOLT E-500 is a digital single-lens reflex (DSLR) camera released in 2005, designed for intermediate photographers seeking advanced control and image quality. It employs a Four Thirds System 10.0 megapixel Live MOS sensor which provides a good balance between image resolution and low-light performance. The camera features a 2.5-inch LCD screen for image review and menu navigation, along with an optical TTL viewfinder for traditional framing. It supports interchangeable lenses compatible with the Four Thirds mount standard, allowing for versatile photography options. Shutter speeds range from 60 seconds to 1/4000th of a second, providing flexibility for varying lighting conditions and motion capture. Additionally, the EVOLT E-500 includes built-in image stabilization technology to help reduce camera shake and enhance photo sharpness.
Specifications
| Built-In Media | Camera Body & Lenses & Accessories |
| Are Batteries Included | No |
| Remote Included | No |
| Series Number | 500 |
| Global Trade Identification Number | 00050332299405 |
| UPC | 050332299405 |
| Item Height | 3.74 inches |
| Manufacturer | Olympus |
| Metering Methods | Spot |
| Exposure Control | Automatic |
| White Balance Settings | Flash torch |
| Crop Mode | 4:3 |
| Screen Size | 2.5 Inches |
| Display Type | LCD |
| Display Fixture Type | Fixed |
| Display Resolution Maximum | 215,000 |
| Has Color Screen | Yes |
| Flash Memory Type | Compact Flash (Type I or II), xD Picture Card |
| Write Speed | high |
| Flash Memory Speed Class | 4 |
| Flash Memory Video Speed Class | V30 |
| Flash Memory Bus Interface Type | [VARIES] |
| Compatible Mountings | Micro Four Thirds |
| Sensor Type | CCD |
| Image stabilization | Dynamic, Digital |
| Maximum Aperture | 3.5 f |
| Expanded ISO Minimum | 80 |
| Photo Sensor Resolution | 8 MP |
| Photo Sensor Size | 1.5 inches |
| Maximum Shutter Speed | 1/4000 seconds |
| Minimum Shutter Speed | 60 seconds |
| Form Factor | Mid-size SLR |
| Special Feature | Portable |
| Color | Black |
| Item Weight | 1.1 Pounds |
| Video Resolution | 480p |
| Viewfinder | Optical |
| Flash Modes | Automatic |
| Camera Flash | Built-In |
| Compatible Devices | Four Thirds cameras |
| Continuous Shooting | 2.5 |
| Aperture modes | F3.5–F5.6 |
| Viewfinder Magnification | 0.9x |
| Flash Sync Speed | 1/4000_sec |
| Video Capture Format | MP4 |
| Expanded ISO Maximum | 1600 |
| Battery Weight | 1 Grams |
| Delay between shots | 0.4 seconds |
| Battery Cell Type | Lithium Ion |
| Guide Number | 31 |
| Battery Type | Rechargeable Lithium-Ion Battery |
| Water Resistance Level | Not Water Resistant |
| Aspect Ratio | 4:3 |
| File Format | TIFF, RAW, JPEG |
| Effective Still Resolution | 8 MP |
| JPEG Quality Level | Fine |
| Supported Image Format | RAW, TIFF, JPEG |
| Maximum Image Size | 1.92E+3 Pixels |
| Bit Depth | 8 Bit |
| Total Still Resolution | 8 MP |
| Maximum Focal Length | 45 Millimeters |
| Optical Zoom | 3.2 x |
| Lens Type | zoom |
| Zoom | Optical Zoom |
| Camera Lens | Two zoom lenses: 14-45mm f/3.5-5.6 and 40-150mm f/3.5-4.5 |
| Minimum Focal Length | 14 |
| Real Angle Of View | 28 Degrees |
| Connectivity Technology | USB |
| Wireless Technology | Yes |
| Total USB 2.0 Ports | 1 |
| Total USB Ports | 1 |
| Total Video Out Ports | 1 |
| Shooting Modes | landscape-portrait, Landscape, Macro, document, Portrait, fireworks, night scene with portrait, beach/snow, high key, children, sunset, candle, Night Portrait, low key, Sports |
| Digital-Still | Yes |
| Movie Mode | Yes |
| Image Capture Type | Stills & Video |
| Night vision | No |
| Auto Focus Technology | Phase Detection, Selective single-point, Multi-area, Single, Continuous |
| Focus Features | 3-point TTL Phase Diff |
| Autofocus Points | 3 |
| Focus Type | Autofocus & Manual |
| Focus Mode | Continuous-Servo AF (AF-C) |
| Autofocus | Yes |

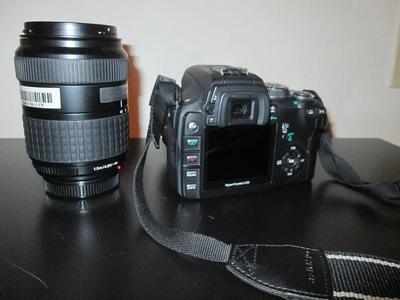

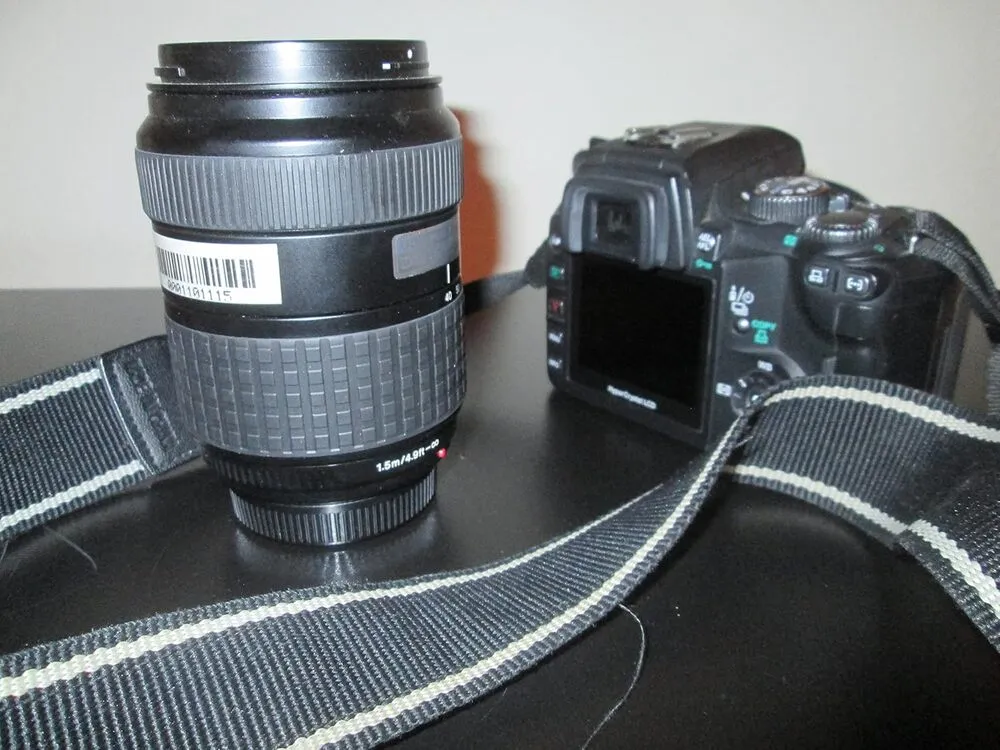

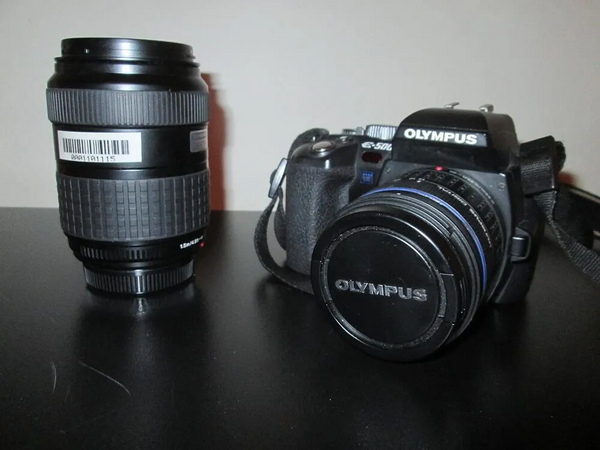

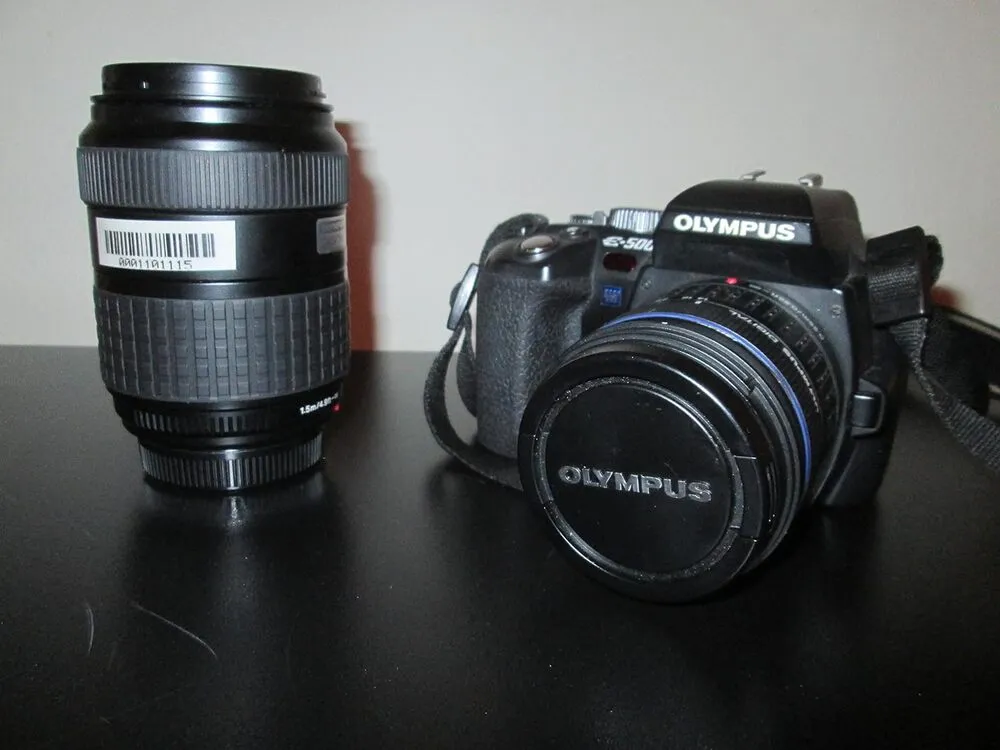

Images
FAQ
What is the sensor size of the OM SYSTEM EVOLT E-500?
The EVOLT E-500 uses a Four Thirds System Live MOS sensor measuring approximately 17.3mm x 13mm.
Does the EVOLT E-500 support image stabilization?
Yes, the camera includes built-in image stabilization to reduce blur from camera shake.
What type of lenses are compatible with this camera?
The EVOLT E-500 supports Four Thirds mount interchangeable lenses.
Is the OM SYSTEM EVOLT E-500 still in production?
No, the EVOLT E-500 has been discontinued and is no longer manufactured.
What is the maximum resolution of images captured by the EVOLT E-500?
It captures images at a maximum resolution of 10 megapixels.
What kind of viewfinder does the EVOLT E-500 have?
It features an optical TTL viewfinder for direct optical framing of subjects.
Where can I find manuals or PDF documents for this camera?
PDF manuals and technical documentation for the EVOLT E-500 can be found on specialized photography support websites or archives dedicated to discontinued cameras.
