Canon T5I
| Brand | Canon 2012 |
| Model | T5i |
| Released Year | 2012 |
| Type | DSLR Cameras |
| Series | EOS Rebel |
| Color | Black |
| Compatible Mountings | Canon EF, Canon EF-S |
| Autofocus | Yes |
| Photo Sensor Resolution | 18 MP |
| Video Resolution | FHD 1080p |
| Optical Zoom | 3 x |
| File Format | RAW, JPEG |
| Status | Discontinued |
Overview

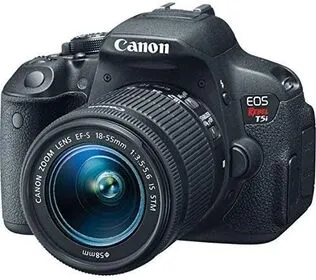

The Canon EOS Rebel T5i (also known as EOS 700D) is a mid-level DSLR camera released in 2012, featuring an 18-megapixel APS-C CMOS sensor paired with the DIGIC 5 image processor for high-quality imaging. It supports ISO sensitivity from 100 to 12800 (expandable to 25600) to accommodate various lighting conditions. The camera offers a 9-point autofocus system with all cross-type points, which enhances focus accuracy and tracking. Video capabilities include Full HD 1080p recording at multiple frame rates, optimized for both enthusiasts and semi-professionals. The articulated 3-inch Clear View LCD touchscreen allows for intuitive control and flexible shooting angles. Connectivity options include USB 2.0 and HDMI output for easy file transfer and playback on larger displays.
Specifications
| Age Range Description | Adult |

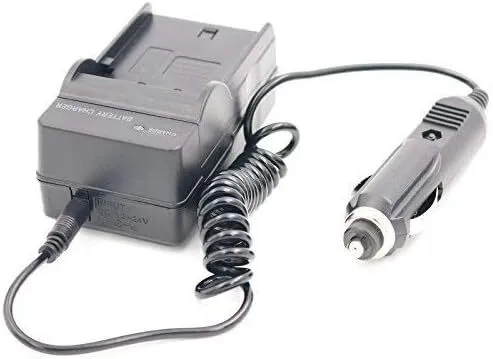

| Built-In Media | Battery Charger, Battery, Eyecup, Neck Strap, Instruction Manual |
| Are Batteries Included | Yes |
| Remote Included | No |
| UPC | 019743741569 |
| Manufacturer | Canon |
| Warranty Description | 90 days limited warranty |
| Metering Methods | Evaluative |
| Exposure Control | Manual |
| White Balance Settings | Auto |
| Crop Mode | 3:2 |
| Screen Size | 3 Inches |
| Display Type | LCD |
| Dots Per Screen | 115,556 dots per square inch |
| Touch Screen Type | Capacitive |
| Display Resolution Maximum | 1.04 MP |
| Has Color Screen | Yes |
| Write Speed | 5 fps |
| Compatible Mountings | Canon EF, Canon EF-S |
| Sensor Type | CMOS |
| Image stabilization | Hybrid, Digital |
| Expanded ISO Minimum | 100 |
| Photo Sensor Resolution | 18 MP |
| Photo Sensor Size | APS-C |
| Minimum Shutter Speed | 0.2 seconds |
| Form Factor | DSLR |
| Special Feature | Expandable |
| Color | Black |
| Video Resolution | FHD 1080p |
| Viewfinder | lcd |
| Flash Modes | Auto, On/Fill, Off, Slow Sync |
| Camera Flash | no flash |
| Skill Level | Professional |
| Compatible Devices | Canon EF-S, Canon EF |
| Continuous Shooting | 5 fps |
| Aperture modes | F3.5–F5.6 |
| Viewfinder Magnification | 0.5x to 0.7x |
| Audio Input | Built-in microphone |
| Flash Sync Speed | 1/200 |
| Video Capture Format | MP4 |
| Expanded ISO Maximum | 25600 |
| Delay between shots | 0.2 seconds |
| Audio Output Type | Internal Speaker |
| Guide Number | 22.36 |
| Battery Type | Lithium Ion |
| Processor Description | digic 5 |
| Water Resistance Level | Not Water Resistant |
| Frame Rate | 30 FPS |
| Aspect Ratio | 3:2 |
| File Format | RAW, JPEG |
| Effective Still Resolution | 18 MP |
| JPEG Quality Level | Fine |
| Supported Image Format | JPEG, RAW |
| Bit Depth | 14 Bit |
| Total Still Resolution | 18 MP |
| Maximum Focal Length | 55 Millimeters |
| Optical Zoom | 3 x |
| Lens Type | Standard Zoom |
| Zoom | Optical Zoom |
| Camera Lens | The camera is equipped with an EF-S 18-55mm f/3.5-5.6 IS STM lens, which offers a focal length range equivalent to 29-88mm in 35mm format. This standard zoom lens features an Image Stabilizer for reducing camera shake and providing sharper images. The STM technology ensures smooth and quiet autofocus when shooting videos or taking photos in Live View mode. |
| Minimum Focal Length | 18 Millimeters |
| Real Angle Of View | 10.8 Degrees |
| Focal Length Description | 55 millimeters |
| Number of Diaphragm Blades | 7 |
| Connectivity Technology | USB |
| Video Output | HDMI |
| Total USB Ports | 1 |
| Total Video Out Ports | 1 |
| Shooting Modes | Automatic |
| Digital-Still | Yes |
| Movie Mode | Yes |
| Image Capture Type | Stills & Video |
| Night vision | No |
| Auto Focus Technology | Phase Detection |
| Focus Features | Hybrid |
| Autofocus Points | 9 |
| Focus Type | Manual Focus, Auto Focus |
| Focus Mode | Single-Servo AF (AF-S) |
| Autofocus | Yes |
Images
FAQ
What sensor does the Canon EOS Rebel T5i use?
It uses an 18-megapixel APS-C CMOS sensor.
Does the T5i have a touchscreen LCD?
Yes, it features a 3-inch articulated Clear View touchscreen LCD.
What video recording formats are supported?
The T5i records Full HD 1080p video in multiple frame rates including 30fps, 25fps, and 24fps.
Is the Canon EOS Rebel T5i still in production?
No, the T5i has been discontinued.
Which image processor does this camera use?
It uses the DIGIC 5 image processor.
What is the ISO range on the Canon T5i?
The native ISO range is 100 to 12800, expandable up to 25600.
Can I transfer files via USB?
Yes, the camera supports USB 2.0 for file transfer.
