Canon EOS 77D
| Brand | Canon 2017 |
| Model | 1892C001 |
| Released Year | 2017 |
| Type | DSLR Cameras |
| Series | EOS |
| Color | Black |
| Compatible Mountings | Canon EF |
| Autofocus | Yes |
| Photo Sensor Resolution | 24.2 MP |
| Video Resolution | FHD 1080p |
| Optical Zoom | 1 x |
| File Format | RAW |
| Status | Active |
Overview

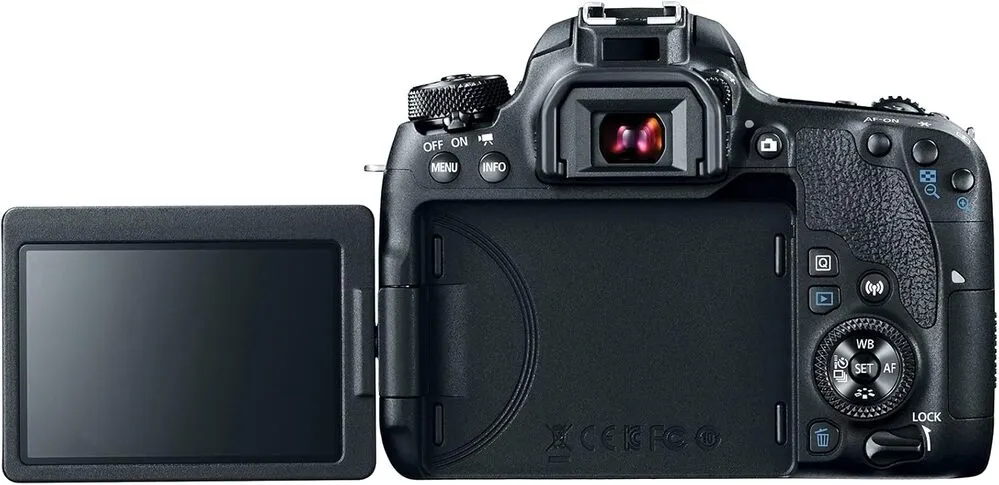

The Canon EOS 77D is a mid-range DSLR camera released in 2017, designed with a 24.2-megapixel APS-C CMOS sensor and Canon's DIGIC 7 image processor ensuring high image quality and quick operation. It supports an ISO range of 100 to 25600, expandable to 51200, which allows excellent performance in diverse lighting conditions. The camera features a 45-point all cross-type autofocus system for precise and fast focusing, enhancing both still photography and video capture capabilities. It is capable of shooting Full HD 1080p video at 60 fps with Dual Pixel CMOS AF technology, offering smooth and accurate autofocus during video recording. The EOS 77D includes a vari-angle touchscreen LCD and an optical viewfinder with 95% coverage to accommodate different shooting styles. Connectivity options include Wi-Fi, NFC, and Bluetooth, enabling easy sharing and remote control via Canon's Camera Connect app.
Specifications

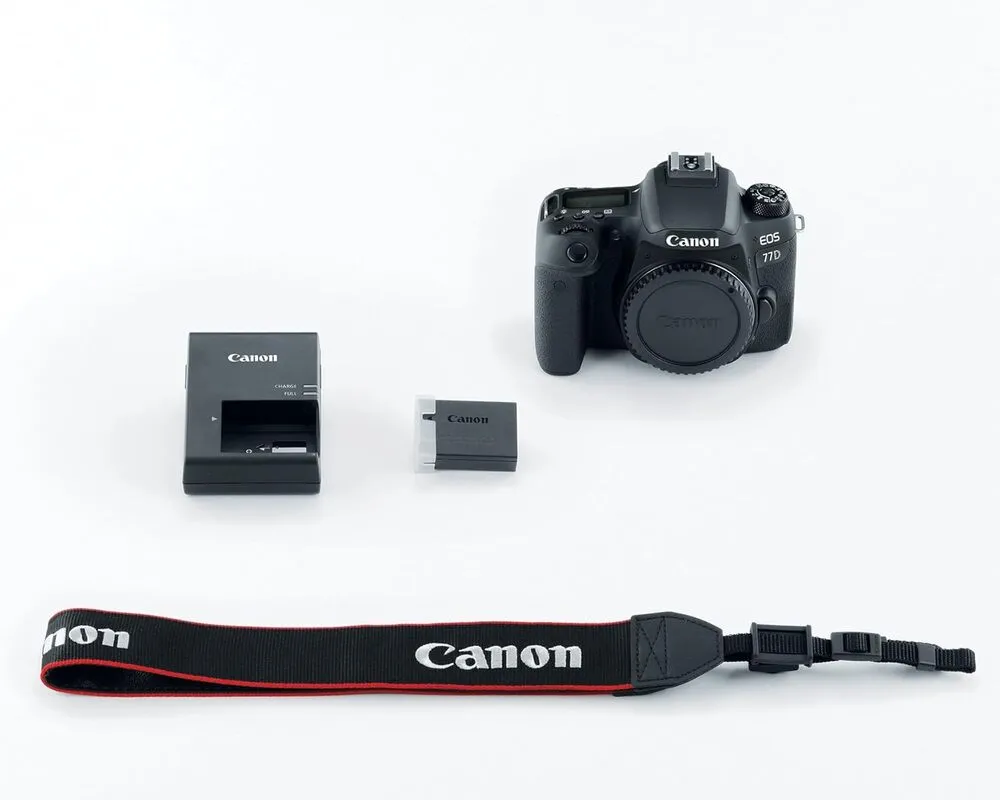

| Built-In Media | EOS 77D Body,Eyecup Ef,Camera Cover R-F-3,Wide Strap EW-100DBV,Battery Pack LP-E17(with Battery Cover),Battery Charger LC-E17,Printed Matter Unit |
| Are Batteries Included | Yes |
| Remote Included | No |
| Series Number | 77 |
| Global Trade Identification Number | 04549292083637, 00013803286489 |
| UPC | 013803286489 |
| Item Height | 3.9 inches |
| Manufacturer | Canon Cameras US |
| Unit Count | 1 Count |
| Metering Methods | Evaluative |
| Exposure Control | Automatic |
| White Balance Settings | Auto |
| Self Timer | 10 seconds |
| Screen Size | 3 Inches |
| Display Type | LCD |
| Display Fixture Type | Fixed |
| Display Resolution Maximum | 100,400 |
| Has Color Screen | Yes |
| Flash Memory Type | Micro SD |
| Memory Slots Available | 1 |
| Memory Storage Capacity | 32 GB |
| Write Speed | 10 MB/s |
| Flash Memory Speed Class | Class 10 |
| Flash Memory UHS Speed Class | U1 |
| Flash Memory Video Speed Class | 10 |
| Flash Memory Bus Interface Type | UHS-I |
| Aspect Ratio | 16:9 |
| File Format | RAW |
| Effective Still Resolution | 24.2 MP |
| JPEG Quality Level | Basic, Fine, Normal |
| Supported Image Format | JPEG, RAW |
| Maximum Image Size | 24.2 MP |
| Bit Depth | 14 Bit |
| Total Still Resolution | 24.2 MP |
| Maximum Focal Length | 55 Millimeters |
| Optical Zoom | 1 x |
| Lens Type | Macro |
| Zoom | Optical Zoom |
| Camera Lens | EF-S 18-55mm f/4-5.6 IS STM Lens |
| Minimum Focal Length | 18 Millimeters |
| Real Angle Of View | 64.7 Degrees |
| Lens Construction | Multi-element zoom lens |
| Connectivity Technology | Wi-Fi |
| Wireless Technology | Bluetooth, Wi-Fi, NFC |
| Total USB 2.0 Ports | 1 |
| Total USB Ports | 1 |
| Shooting Modes | Scene Intelligent Auto, creative auto, landscape, close-up, sports, special scene modes (night portrait, HDR backlight control), and more |
| Digital-Still | Yes |
| Movie Mode | Yes |
| Image Capture Type | Stills |
| Night vision | No |
| Auto Focus Technology | Phase Detection |
| Focus Features | Autofocus |
| Autofocus Points | 45 |
| Focus Type | automatic_only |
| Focus Mode | Continuous-Servo AF (AF-C) |
| Autofocus | Yes |
| Compatible Mountings | Canon EF |
| Sensor Type | CMOS |
| Image stabilization | Optical |
| Maximum Aperture | 2.8 Millimeters |
| Expanded ISO Minimum | 100 |
| Photo Sensor Resolution | 24.2 MP |
| Photo Sensor Size | APS-C Adult US |
| Maximum Shutter Speed | 1/4000 seconds |
| Minimum Shutter Speed | 1/4000 seconds |
| Form Factor | DSLR |
| Special Feature | Brightness Control |
| Color | Black |
| Item Weight | 1.2 Pounds |
| Video Resolution | FHD 1080p |
| Viewfinder | Optical |
| Flash Modes | Automatic |
| Camera Flash | Built-In |
| Skill Level | Professional |
| Compatible Devices | Canon cameras, devices with Wi-Fi, Bluetooth, or NFC connectivity |
| Continuous Shooting | 6 fps |
| Aperture modes | F4.0-F5.6 |
| Viewfinder Magnification | 45 times |
| Flash Sync Speed | Approximately 1/200 or 1/250 |
| Video Capture Format | MP4 |
| Expanded ISO Maximum | 51200 |
| Battery Weight | 45.4 Grams |
| Battery Cell Type | Lithium Ion |
| Battery Average Life | 820 Photos |
| Battery Type | LP-E17 |
| Water Resistance Level | Not Water Resistant |
Images
FAQ
What sensor does the Canon EOS 77D use?
The Canon EOS 77D features a 24.2-megapixel APS-C CMOS sensor.
Does the EOS 77D support 4K video recording?
No, the EOS 77D supports Full HD 1080p video recording up to 60 frames per second but does not support 4K video.
What autofocus system does the Canon EOS 77D use?
It uses a 45-point all cross-type autofocus system providing accurate and fast focusing.
Is the Canon EOS 77D compatible with Wi-Fi and Bluetooth?
Yes, the EOS 77D includes built-in Wi-Fi, NFC, and Bluetooth connectivity.
Can I use Canon EF and EF-S lenses with the EOS 77D?
Yes, the Canon EOS 77D supports both EF and EF-S lenses.
Does the EOS 77D have a touchscreen?
Yes, the camera is equipped with a vari-angle touchscreen LCD for easy navigation and creative shooting angles.
Is the Canon EOS 77D still in production?
As of now, the EOS 77D has not been officially discontinued and is still available new from select retailers.
